  • Plan 119-112
  • 2996 sq ft
  • 4 beds
  • 3.50 baths
  • 66' wide
  • 40' deep
more details
Houzz
Email Print

Plans

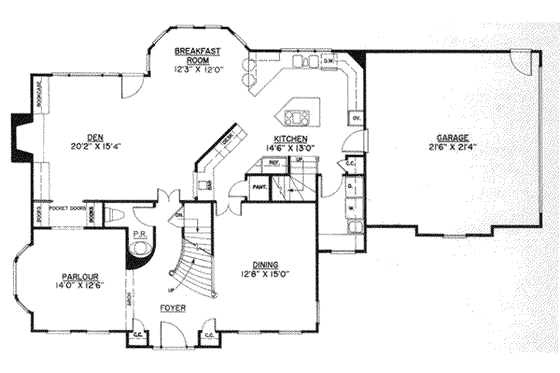

Main Floor Plan
Saved! Houseplans.com Main Floor Plan Plan #119-112
Upper Floor Plan
Saved! Houseplans.com Upper Floor Plan Plan #119-112

Specifications

Plan Styles
Colonial
Southern
European
Bedroom Features
Walk In Closet
Upstairs Master Bdrm
Designer Notes
Included

  • Elevations - Working drawings of 1/4" front and 1/8" sides and rear elevations
  • Foundation Plan - most cases include a basement w/ poured wall construction
  • Floor Plans - Completely dimensioned and detailed
  • Roof Plan
  • 1/4" typical building section with 3/4" typical wall section
  • Major exterior details such as dormers, cornice and chimney
  • Various interior elevations of major focal areas (not on all plans)
Garage
Side Entry Garage
Oversized Garage
Dimension
Depth
40'
Width
66'
Height
38'
Lot Characteristics
Suited For View Lot
Suited For Sloping Lot
Suited For Corner Lot
Plan Feature
Teen Suite Jack Jill Bath
Roof
Primary Pitch
12:12
Basic Features
Bedrooms
4
Stories
2
Baths
3.50
Potential Bedrooms
0
Garage Stalls
2
Additional Rooms
Storage Area
Unfinished Future Space
Den Office Study Computer
Exterior Wall Framing
Framing
2"x4"
Kitchen Features
Kitchen Island
Peninsula Eating Bar
Walk In Pantry Cabinet Pantry
Nook Breakfast Area Dining
Outdoor Spaces
Loft Balcony
Area
Total Sq Ft
2996 sq ft
Garage Sq Ft
494 sq ft
Main Floor Sq Ft
1437 sq ft
Upper Floor Sq Ft
1559 sq ft

Pricing

Plan Set Price
5 Copy Set
$970.00
PDF Set
$1185.00
Reproducible Set
$1185.00
CAD Set
$1785.00
PDF Study Set
$800.00
Foundation Price
Daylight Basement
+$0.00
Additional Construction Sets $80.00/each
Right-Reading Reverse $120.00

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Plan Content

  • Cover Sheet: The cover sheet features an elevation of the home, sheet number index for the plan, and contact information.
  • Foundation: These drawings will detail and illustrate the foundation of the home, exterior and interior footings to support the floors and structure above. If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.
  • First Floor Plan: This page is drawn to ¼”=1’-0” scale and includes exterior dimensions to build the home. The notes are precise directions for your builder. Important features such as built-ins, niches, and appliances are noted. Doors and windows are identified and specific sizing can be found on window and door schedules. *Framing is not included.
  • Second Floor Plan: The second floor includes stair details. Often the reflective roof detail is shown legibly over the second floor plan. This is helpful for the framing contractor. *Framing is not included.
  • Lighting and Electrical: On this sheet you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors. It is common place to build with your builder and/or electrician before the work starts to review this plan. Careful planning can make your home special and convenient for your family.
  • Second Floor Lighting: The same details as provided for the first floor.
  • Front and Rear Elevations: The front and rear elevations may be on separate pages depending on the size of the house. This page comes with exterior dimensions and notes required to complete construction. This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches and ridge heights.
  • Right and Left Elevations: The right and left elevations provide the same details as the front and rear elevations.
  • Roof Plan: This drawing, usually at ¼”=1’-0” scale, will be a bird’s eye view of the home. It will show the ridges, hips, and valleys. This page will show a beautifully designed roof.*Framing is not included.
  • Cross-Sections: Sections are used to further describe any architectural intent necessary for the builder or framer. This drawing will illustrate important changes in the floor, ceiling, and roof heights.
  • Cabinet Elevations*: Cabinet elevations are provided with your plans, and like the electrical plan, they are mainly a guide for estimating purposes. Cabinets are an area that is easy to customize and your builder or cabinet maker will work with you early on in the process to ensure that the correct cabinets are specified. Archival Designs believes cabinets should reflect your taste and budget. After framing and sheet rock installation sizes of walls may change slightly. The cabinet maker must take as built measurements to properly size your cabinets. **NOTE: The majority of house plans will include cabinet elevations in construction set; however, not all will include.
  • General Notes: Separate sheets that provide standard construction notes, in addition included are the details required to comply with International Residential Code (IRC) & Southern Building Code (SBC).

Cost-to-Build

To help you determine if this plan will fit within your budget, our Cost-to-Build™ report will provide you a location specific Cost-to-Build™, which is based on your zip code. Order a Cost-to-Build™ Report today to get an accurate, location specific construction cost for any house plan on Houseplans.com. It's a great way to budget your project and compare different plans. It's an easy process and one of our expert plan advisors will take you through a comprehensive interview to determine the materials, finishes, fixtures and more to help you know in advance the likely cost to build a new home from Houseplans.com's blueprints.

Cost-to-Build Report

Best Price Policy

Some of our plans are also available on other websites and in printed catalogs. We are committed to selling these plans at or below the lowest price available elsewhere. If you find a regularly priced plan (not “on-sale”) for a lower price, we'll beat the advertised price by 5%. We will match the price for any on-sale plans.

More details »
