Main Floor Plan
- Floor Plan
- Foundation Plan
- Elevations: Front, back and sides
- Roof plan
- Electrical Plans
- Typical Detail Sheet
- Plans are drawn at 1/4? scale and show dimensions, windows, doors, switches, electrical outlets, etc.
- NOTE: These plans DO NOT include cross sections.
Plan Set Price
Additional Construction Sets $50.00/each
Mirror Reverse Sets $50.00/each
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas. Most of our plans show a basement and alternate crawl space or slab plan.

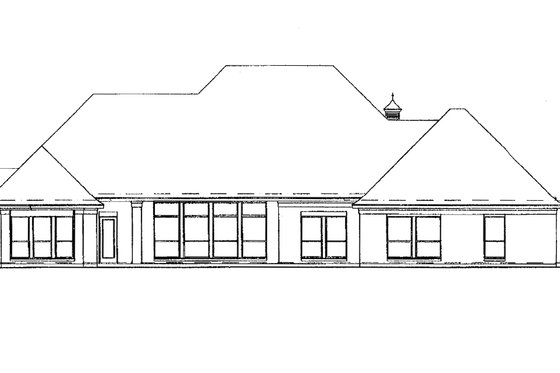

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

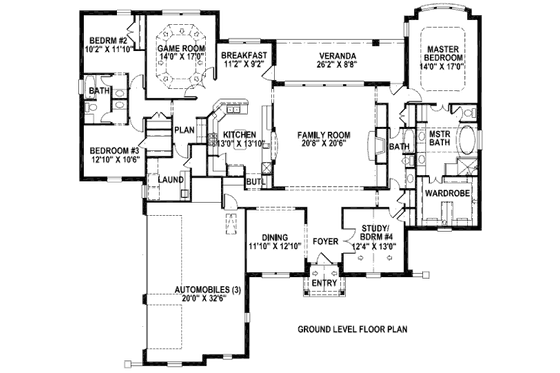

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
