- Working drawings of 1/4" front and 1/8" sides and rear elevations
- Complete dimensioned and detailed floor plans
- 1/4" roof plan
- 1/4" typical building section with 3/4" typical wall section
- Major exterior details such as dormers, cornice, and chimney
- Various interior elevations of major focal areas
- A finish schedule
- Structural plans - when available
Exterior Wall Framing
Plan Set Price
Additional Construction Sets $50.00/each
Mirror Reverse Sets $80.00/each
Material List $80.00
The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas. Most of our plans show a basement and alternate crawl space or slab plan.

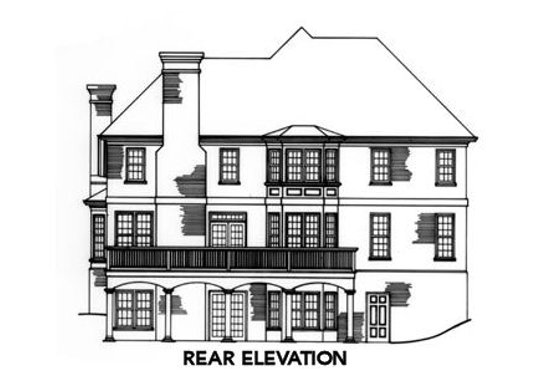

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

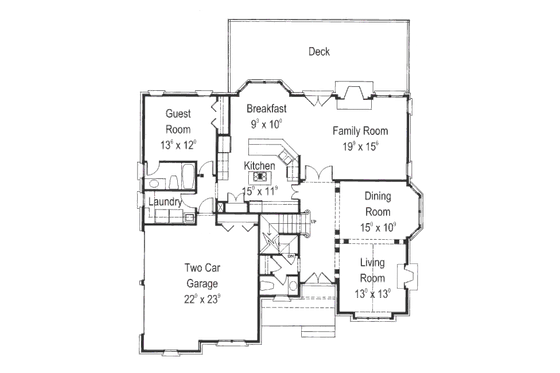

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Best Price Policy
To find out what documents you should expect with your house plans, see what's included?
How much will this cost to build?
This plan can be modified!
