Plan #408-106

Key Specs


  • 3562 sq ft

  • 3 Bedrooms

  • 4 Bathrooms

  • 2 Floors

  • 2 Garage

Plan Description

1st floor adult luxury living/entertainment, 2nd floor pool/game rm & BRs/Baths
Modify This Plan

This plan can be customized!

Let us know your desired changes and get a free quote.
Click the button or call us now at 1-800-913-2350.

Floor Plans

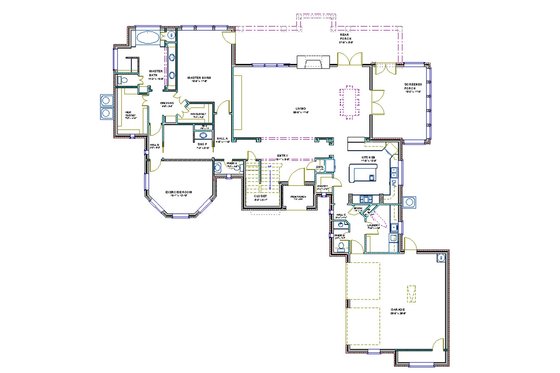

Floor Plan - Main Floor Plan Floor Plan - Upper Floor Plan

Full Specs & Features

Basic Features

Bedrooms : 3
Garage Stalls : 2
Baths : 4
Stories : 2

Dimension

Depth : 86'
Height : 35'
Width : 82'

Area

Decks Sq Ft : 103 sq ft
Garage Sq Ft : 667 sq ft
Upper Floor Sq Ft : 999 sq ft
Total Sq Ft : 3562 sq ft *
Main Floor Sq Ft : 2563 sq ft
Porch Sq Ft : 742 sq ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling Ft : 10'
Ceiling Details : Special raised ceilings throughout
Upper Ceiling Ft : 8'
Garage Ceiling Ft : 10'

Roof

Primary Pitch : 12:12
Roof Type : Lumber
Roof Load : 32 psf
Roof Framing : 2x6

Exterior Wall Framing

Insulation : Full cavity HD + foil face foam board
Exterior Wall Finish : Stucco Stone Face brick
Framing : 2x4 2x6

Bedroom Features

Upstairs Bedrooms
Walk In Closet
Split Bedrooms
Main Floor Master Bedroom

Kitchen Features

Walk In Pantry Cabinet Pantry
Peninsula Eating Bar
Kitchen Island

Additional Room Features

Storage Area
Workshop
Exercise Room
Main Floor Laundry
Master Sitting Area
Hobby Rec Room Game Room
Nursery Room
Den Office Study Computer
Great Room Living Room
Family Room Keeping Room

Garage Features

Side Entry Garage
Oversized Garage

Outdoor Spaces

Screened Porch Sunroom
Covered Rear Porch
Covered Front Porch
Loft Balcony

More

Wheelchair Adaptable
Suited For Vacation Home
Economical To Build
Empty Nester
Unlimited Use

Energy Efficient Features

Energy Efficient Design

What's included in this plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

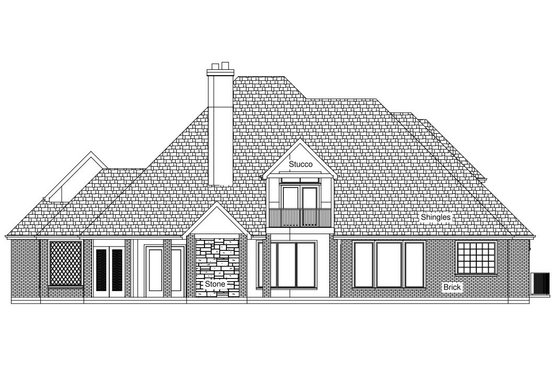

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing

Plan Options
PDF Set Best Value! $1000.00 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set $1200.00 5 printed plan sets mailed to you.
8 Copy Set $1500.00 8 printed plan sets mailed to you.
Foundation Options
Pier $0.00 Ideal for lot conditions where the home needs to be off the ground. A pier foundation consists of wood posts or concrete piers connected by beams to support the home. Some lots may require drilling deep into bedrock to support the posts.
Slab $0.00 Ideal for level lot, single layer concrete poured directly on grade.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.
