Plan #440-4

Key Specs


  • 4 Bedrooms

  • 3.5 Bathrooms

  • 2 Floors

  • 2 Garage

  • 3692 sq ft

Full Specs & Features

Basic Features

Garage Stalls : 2
Potential Bedrooms : 0
Baths : 3.5
Stories : 2
Bedrooms : 4

Dimension

Depth : 68'
Width : 64'
Height : 26'

Area

Upper Floor Sq Ft : 1276 sq ft
Garage Sq Ft : 652 sq ft
Total Sq Ft : 3692 sq ft
Main Floor Sq Ft : 2416 sq ft

Ceiling

Upper Ceiling Ft : 8'
Garage Ceiling Ft : 10'
Main Ceiling Ft : 9'

Roof

Primary Pitch : 7:12
Roof Framing : 2x4 Trusses
Secondary Pitch : 3:12

Exterior Wall Framing

Insulation : Ext. Walls R-19, Ceiling R-38
Exterior Wall Finish : White Cedar Shingle and Clapboard
Framing : 2"x6"

Bedroom Features

Upstairs Bedrooms
Main Floor Master Bedroom
Walk In Closet
Main Floor Bedrooms
Split Bedrooms

Kitchen Features

Peninsula Eating Bar
Breakfast Nook

Additional Room Features

Den Office Study Computer
Storage Area
Great Room Living Room
Main Floor Laundry
Unfinished Future Space
Master Sitting Area
Mud Room

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Grill Deck Sundeck
Covered Rear Porch
Covered Front Porch

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Floor Plans

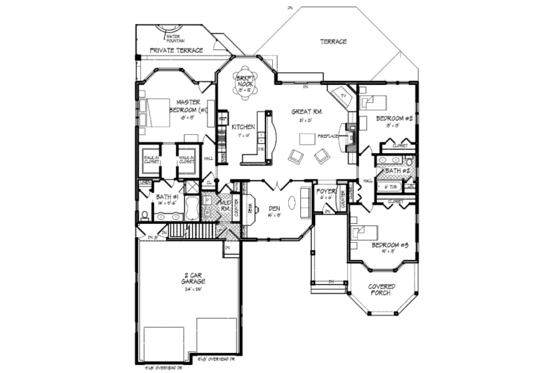

Main Floor Plan
Saved! Cape Cod Style House Plan - 4 Beds 3.5 Baths 3692 Sq/Ft Plan #440-4 Main Floor Plan - Houseplans.com

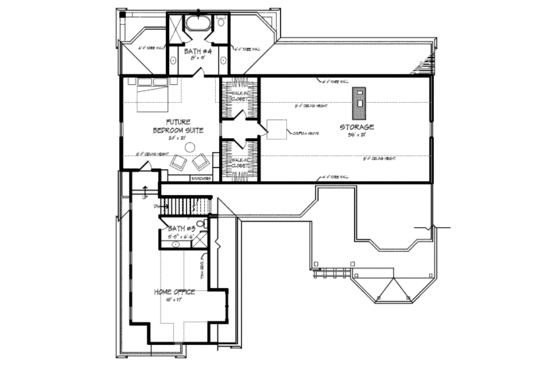

Upper Floor Plan
Saved! Cape Cod Style House Plan - 4 Beds 3.5 Baths 3692 Sq/Ft Plan #440-4 Upper Floor Plan - Houseplans.com

What's included in this plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

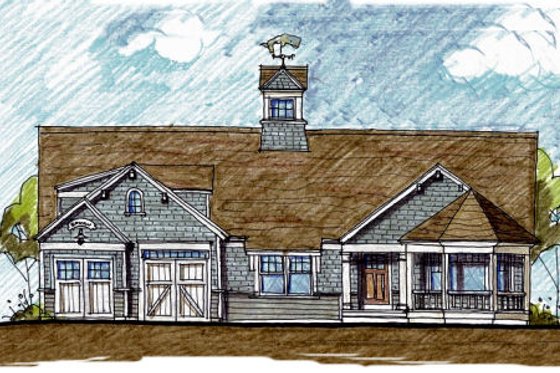

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Pricing

Plan Set Price

5 Copy Set
$4500.00

Foundation Price

Basement
+$0.00

Additional Construction Sets $50.00/each

Mirror Reverse Sets $0.00/each

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Meet the Designer - Ronald DiMauro

null - Houseplans.com
“Our goal as Architects is to create and atmosphere which will enhance the quality of life, respect human kind, encourage people to engage in activities, provide a safe and secure haven, while being sensitive to the environment.”

Ron began his career as a residential carpenter 26 years ago, and was a partner in a design build firm for six years before starting his own architectural firm. Ronald F. DiMauro Architects, Inc. was founded in 1994, originally located on historic Bellevue Avenue in Newport. The firm is now set in the neighboring seaside village of Jamestown. They are honored to have received numerous national awards, including the Palladio Award for design elegance within the classical proportion system. Ron's designs are based on traditional idioms, with the philosophy that form follows function. His homes are fun & relaxed, yet timeless & elegant, while maintaining a distinct New England coastal flair. Ron is an RA, an AIA member and a NCARB certified architect.

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
