  • Plan 420-148

  • 4020 sq ft
  • 3 beds
  • 3.5 baths
  • 55' wide
  • 75' deep
more details
Houzz
Email Print

Floor Plans

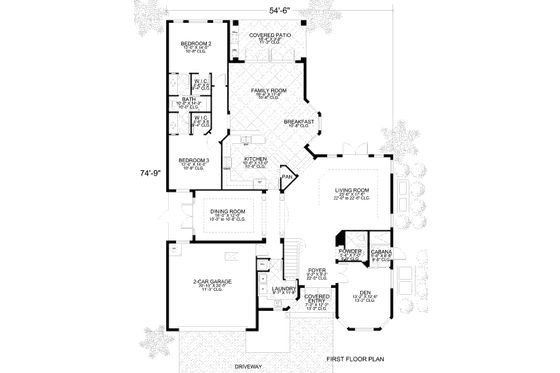

Main Floor Plan

Saved! European Style House Plan - 3 Beds 3.5 Baths 4020 Sq/Ft Plan #420-148 Main Floor Plan - Houseplans.com

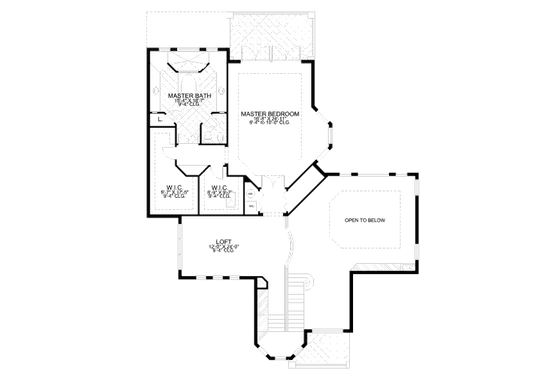

Upper Floor Plan

Saved! European Style House Plan - 3 Beds 3.5 Baths 4020 Sq/Ft Plan #420-148 Upper Floor Plan - Houseplans.com

Specifications

Basic Features

Stories
2
Baths
3.5
Garage Stalls
2
Potential Bedrooms
0
Bedrooms
3

Area

Garage Sq Ft
461 sq ft
Upper Floor Sq Ft
1453 sq ft
Total Sq Ft
4020 sq ft
Main Floor Sq Ft
2567 sq ft
Porch Sq Ft
418 sq ft

Exterior Wall Framing

Framing
Concrete block

Kitchen Features

Kitchen Island
Peninsula Eating Bar
Walk In Pantry Cabinet Pantry
Breakfast Nook

Outdoor Spaces

Loft Balcony
Covered Rear Porch
Covered Front Porch

Dimension

Width
55'
Depth
75'
Height
31'

Roof

Primary Pitch
5:12

Bedroom Features

Teen Suite Jack Jill Bath
Walk In Closet
Upstairs Master Bedrooms

Additional Room Features

Family Room Keeping Room
Master Sitting Area

Pricing

Plan Set Price

5 Copy Set
$1200.00
8 Copy Set
$1350.00
PDF Set
$1500.00
Reproducible Set
$1500.00
CAD Set
$1850.00
Single Set
$1000.00

Foundation Price

Slab
+$0.00

Additional Construction Sets $50.00/each

Mirror Reverse Sets $0.00/each

Right-Reading Reverse $250.00

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Plan Content

  • Floor Plans:

    Each plan comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.

  • Kitchen and Bath Layouts:

    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.

  • Elevations:

    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.

  • Sections:

    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.

  • Structural Plans:

    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.

  • Foundation Plan:

    Most Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.

  • Roof Plan:

    Roof and Roof Framing Plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic rooflines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.

  • Mechanical Plans:

    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.

  • Electrical Plans:

    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.

  • Plumbing Plan:

    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

Cost-to-Build

To help you determine if this plan will fit within your budget, our Cost-to-Build™ report will provide you a location specific Cost-to-Build™, which is based on your zip code. Order a Cost-to-Build™ Report today to get an accurate, location specific construction cost for any house plan on Houseplans.com. It's a great way to budget your project and compare different plans. It's an easy process and one of our expert plan advisors will take you through a comprehensive interview to determine the materials, finishes, fixtures and more to help you know in advance the likely cost to build a new home from Houseplans.com's blueprints.

Cost-to-Build Report

Best Price Policy

Some of our plans are also available on other websites and in printed catalogs. We are committed to selling these plans at or below the lowest price available elsewhere. If you find a regularly priced plan (not “on-sale”) for a lower price, we'll beat the advertised price by 5%. We will match the price for any on-sale plans.

More details »

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Best Price Guaranteed

Plan Price $1200.00

what's included?

Plan Type

5 printed plan sets and a license to build a single home.

8 copies of the basic package, a single build license and a Cost to Build Report.

For use by design professionals to make substantial changes to your house plan.

For making minor changes to your house plans. This is a set of drawings printed on Vellum or Bond, that comes with a copyright release.

Recommended PDF sets are best for fast, electronic delivery and inexpensive, local printing.

One printed set for bidding purposes only. Not a legal building set.

PDF sets are best for fast, electronic delivery. Not for construction.

Foundation Type

Additional Options
or call to order: 1-800-913-2350

How much will this cost to build?

This plan can be modified!
