Plan #132-173

Key Specs


  • 4584 sq ft

  • 4 Bedrooms

  • 4.5 Bathrooms

  • 2 Floors

  • 3 Garage

Floor Plans

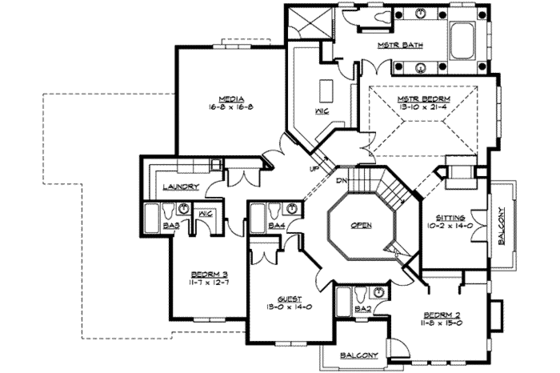

Floor Plan - Upper Floor Plan
Saved! European Style House Plan - 4 Beds 4.5 Baths 4584 Sq/Ft Plan #132-173 Floor Plan - Upper Floor Plan - Houseplans.com
Floor Plan - Main Floor Plan
Saved! European Style House Plan - 4 Beds 4.5 Baths 4584 Sq/Ft Plan #132-173 Floor Plan - Main Floor Plan - Houseplans.com

Customize This Plan

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Baths : 4.5
Garage Stalls : 3
Potential Bedrooms : 0
Bedrooms : 4
Stories : 2

Dimension

Width : 74'
Depth : 57'
Height : 34'

Area

Main Floor Sq Ft : 2182 sq ft
Upper Floor Sq Ft : 2402 sq ft
Bonus Sq Ft : 284 sq ft
Garage Sq Ft : 864 sq ft
Total Sq Ft : 4584 sq ft

Ceiling

Main Ceiling Ft : 10'
Upper Ceiling Ft : 9'

Roof

Primary Pitch : 16:12

Exterior Wall Framing

Framing : 2"x6"

Bedroom Features

Walk In Closet
Upstairs Master Bedrooms
Guest Suite

Kitchen Features

Kitchen Island
Walk In Pantry Cabinet Pantry
Breakfast Nook

Additional Room Features

Hobby Rec Room Game Room
Library Room
Master Sitting Area
Media Room
Upstairs Laundry
Family Room Keeping Room

Garage Features

Oversized Garage
Side Entry Garage

Lot Characteristics

Suited For View Lot
Suited For Corner Lot

Outdoor Spaces

Covered Rear Porch
Loft Balcony

What's included in this plan set

If you are building this plan in the state of Washington, please call us before placing your order.

  • Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
  • Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
*See important information before purchasing

Pricing

Plan Options
5 Copy Set $1350.00 5 printed plan sets mailed to you.
8 Copy Set $1450.00 8 printed plan sets mailed to you.
PDF Set Best Value! $1950.00 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set $1950.00 For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set $2950.00 For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options
Crawlspace +$0.00 Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Additional Options
Additional Copies $50.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Right-Reading Reverse $150.00 Choose this option to reverse your plans and to have the text and dimensions readable. Click here for more information.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.
