- 1/4" scale foundation plan(s)
- 1/4" scale (Detailed floor plan(s) with schematic electrical layout.
- 1/4" scale front elevation.
- 1/8" scale side and rear elevations.
- 1/8" roof plan
- Typical wall sections and foundation section details.
- Miscellaneous details as needed per house plan.
- Plans include floor & ceiling framing member specifications (abbreviated) and schematic electrical plans (suggested fixture, outlet, switch, etc. locations).
Plan Set Price
Additional Construction Sets $50.00/each
Right-Reading Reverse $100.00
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas. Most of our plans show a basement and alternate crawl space or slab plan.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

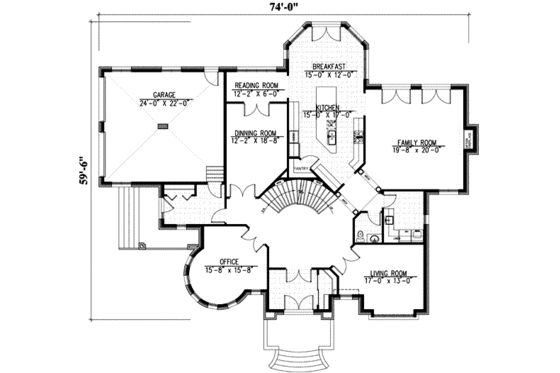

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
