Plan #411-596

Key Specs

  • 4 Bedrooms

  • 3.5 Bathrooms

  • 2 Floors

  • 3 Garage

  • 5042 sq ft

Full Specs & Features

Basic Features

Garage Stalls : 3
Potential Bedrooms : 0
Baths : 3.5
Stories : 2
Bedrooms : 4


Depth : 76'
Width : 62'
Height : 38'


Upper Floor Sq Ft : 2203 sq ft
Total Sq Ft : 5042 sq ft
Main Floor Sq Ft : 2839 sq ft


Upper Ceiling Ft : 9'
Main Ceiling Ft : 12'


Primary Pitch : 7:12

Bedroom Features

Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Butler's Pantry
Walk In Pantry Cabinet Pantry
Kitchen Island
Breakfast Nook

Additional Room Features

Den Office Study Computer
Storage Area
Hobby Rec Room Game Room
Family Room Keeping Room
Media Room
Master Sitting Area

Garage Features

Oversized Garage
Tandem Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Covered Rear Porch

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Floor Plans

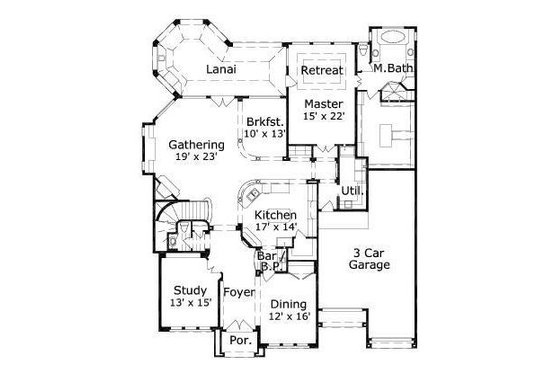

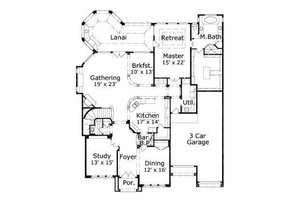

Main Floor Plan
Saved! Mediterranean Style House Plan - 4 Beds 3.5 Baths 5042 Sq/Ft Plan #411-596 Main Floor Plan -
Upper Floor Plan
Saved! Mediterranean Style House Plan - 4 Beds 3.5 Baths 5042 Sq/Ft Plan #411-596 Upper Floor Plan -

What's included in this plan set


  • Rendered front elevation
  • Floor to floor & plate heights
  • Roof pitches
  • Exterior materials labeled
  • Window & door shapes & design


  • Complete & accurate dimensions
  • Floor & ceiling heights
  • General architectural features
  • Cabinet, appliance & plumbing layouts
  • Windows, door & openings labeled
  • Room titles
  • Code related & general notes
  • Building section markets
  • Electrical layouts (may be separate plan)


  • Floor to floor dimensions
  • Floor & ceiling changes
  • Floor system dimensions
  • Plate heights labeled
  • Roof pitches indicated
  • Stair section & related notes
  • Misc. framing detail
  • General code related notes for residential construction


  • Roof design
  • Hips, ridges, valleys, etc. labeled
  • Plate heights labeled
  • Notes related to residential construction
  • Code related notes


  • Cabinet elevations
  • Locations of drawers, doors, shelves, etc.
  • Locations of appliances, plumbing & related items
  • Dimensions of heights Specification of door designs & molding will not necessarily be indicated.


  • Typical building section
  • Wall sections indicating method of construction & material make-up
  • Misc. framing details
  • Typical lintel & header span tables
  • Fastening & nailing schedules
  • Typical 2 & 3 car detached garage plans
  • General & misc. code related notes


  • Foundation plans - A slab interface diagram is provided showing the footprint of the home but does not include structural details for constructing the foundation.
  • Structural engineering
  • HVAC layouts (heating & air conditioning)
  • Detailed specifications
  • Electrical wiring diagrams & load analysis
  • Plumbing diagrams


Plan Set Price

5 Copy Set
Reproducible Set
8 Copy Set
Single Set

Foundation Price


Additional Construction Sets $50.00/each

Mirror Reverse Sets $0.00/each

Right-Reading Reverse $250.00

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
