- Working drawings of 1/4" front and 1/8" sides and rear elevations
- Complete dimensioned and detailed floor plans
- 1/4" roof plan
- 1/4" typical building section with 3/4" typical wall section
- Major exterior details such as dormers, cornice, and chimney
- Various interior elevations of major focal areas
- A finish schedule
- Structural plans - when available
Plan Set Price
Additional Construction Sets $50.00/each
Mirror Reverse Sets $80.00/each
The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas. Most of our plans show a basement and alternate crawl space or slab plan.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

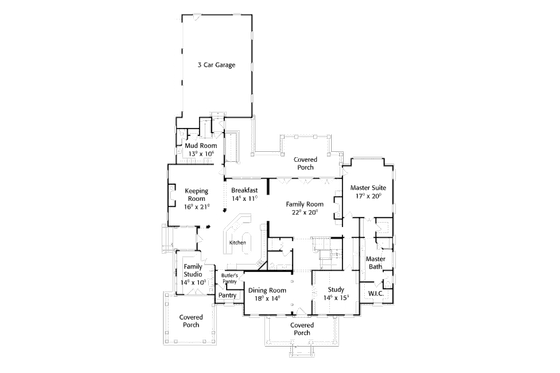

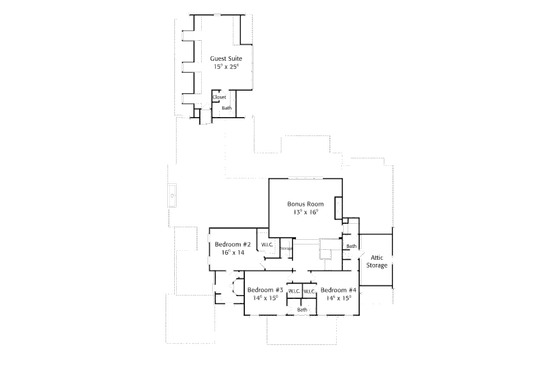

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
