  • Plan 420-172

  • 5555 sq ft
  • 4 beds
  • 4.5 baths
  • 107' wide
  • 73' deep
more details
Houzz
Email Print

Plans

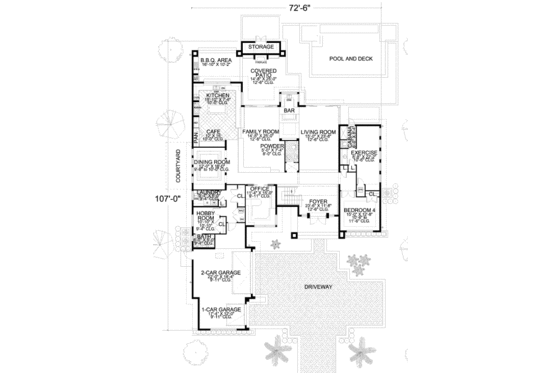

Main Floor Plan

Saved! Modern 4 Beds 4.5 Baths 5555 Sq/Ft Plan #420-172 Main Floor Plan - Houseplans.com

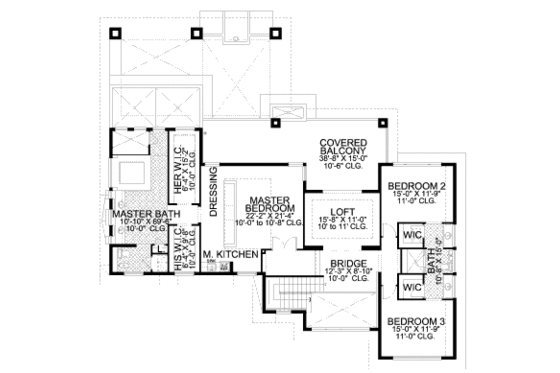

Upper Floor Plan

Saved! Modern 4 Beds 4.5 Baths 5555 Sq/Ft Plan #420-172 Upper Floor Plan - Houseplans.com

Specifications

Plan Styles

Bedroom Features

Walk In Closet
Upstairs Master Bdrm
Main Floor Bed Bath

Additional Rooms

Hobby Rec Room Game Room
Exercise Room
Den Office Study Computer
Family Room Keeping Room
Storage Area

Outdoor Spaces

Loft Balcony
Covered Front Porch
Covered Rear Porch

Lot Characteristics

Suited For Corner Lot

Basic Features

Bedrooms
4
Potential Bedrooms
1
Garage Stalls
3
Stories
2
Baths
4.5

Roof

Roof Framing
wood trusses
Primary Pitch
6:12
Roof Type
C. Tile
Roof Load
Live 30 - Dead 25

Dimension

Width
107'
Depth
73'
Height
34'

Designer Notes

Included

  • FLOOR PLAN(S): Fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • KITCHEN AND BATH LAYOUTS: The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • ELEVATIONS: All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • SECTIONS: Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • STRUCTURAL PLANS: All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • FOUNDATION PLAN: Foundation plans include thickened edge and footing sizes, section markers and mechanical equipment locations.
  • ROOF PLAN: Roof and Roof Framing Plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic rooflines, the roof plans have truss drawings that show the length, spacing and layout of all roof structural members.
  • MECHANICAL PLANS: Most plans have separate Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • ELECTRICAL PLANS: Electrical Plans are included separately. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • PLUMBING PLAN: Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

Kitchen Features

Kitchen Island
Peninsula Eating Bar
Nook Breakfast Area Dining

Garage

Oversized Garage
Side Entry Garage

More

Unique Features

Plan Feature

Teen Suite Jack Jill Bath

Area

Patios Sq Ft
520 sq ft
Total Sq Ft
5555 sq ft
Main Floor Sq Ft
3458 sq ft
Porch Sq Ft
1458 sq ft
Garage Sq Ft
770 sq ft
Upper Floor Sq Ft
2097 sq ft

Exterior Wall Framing

Framing
Concrete block
Exterior Wall Finish
Stucco

Pricing

Plan Set Price

5 Copy Set
$1800.00
8 Copy Set
$1950.00
PDF Set
$2100.00
Reproducible Set
$2100.00
CAD Set
$2950.00
Single Set
$1600.00

Foundation Price

Slab
+$0.00

Additional Construction Sets $50.00/each

Mirror Reverse Sets $0.00/each

Right-Reading Reverse $250.00

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Plan Content

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas. Most of our plans show a basement and alternate crawl space or slab plan.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Cost-to-Build

To help you determine if this plan will fit within your budget, our Cost-to-Build™ report will provide you a location specific Cost-to-Build™, which is based on your zip code. Order a Cost-to-Build™ Report today to get an accurate, location specific construction cost for any house plan on Houseplans.com. It's a great way to budget your project and compare different plans. It's an easy process and one of our expert plan advisors will take you through a comprehensive interview to determine the materials, finishes, fixtures and more to help you know in advance the likely cost to build a new home from Houseplans.com's blueprints.

Cost-to-Build Report

Best Price Policy

Some of our plans are also available on other websites and in printed catalogs. We are committed to selling these plans at or below the lowest price available elsewhere. If you find a regularly priced plan (not “on-sale”) for a lower price, we'll beat the advertised price by 5%. We will match the price for any on-sale plans.

More details »

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Best Price Guaranteed

Plan Price $1600.00

what's included?

Plan Type

5 printed plan sets and a license to build a single home.

8 copies of the basic package, a single build license and a Cost to Build Report.

For use by design professionals to make substantial changes to your house plan.

For making minor changes to your house plans. This is a set of drawings printed on Vellum or Bond, that comes with a copyright release.

Recommended PDF sets are best for fast, electronic delivery and inexpensive, local printing.

One printed set for bidding purposes only. Not a legal building set.

PDF sets are best for fast, electronic delivery. Not for construction.

Foundation Type

Additional Options
or call to order: 1-800-913-2350

How much will this cost to build?

This plan can be modified!

Also by This Designer
