Plan #18-402

Key Specs

  • 569 sq ft

  • 2 Bedrooms

  • 1 Bathroom

  • 2 Floors

  • 2 Garage
Modify This Plan

This plan can be customized!

Let us know your desired changes and get a free quote.
Click the button or call us now at 1-800-913-2350.

Floor Plans

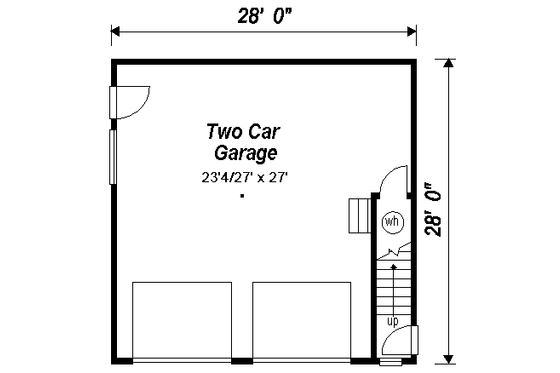

Floor Plan - Main Floor Plan
Traditional Style House Plan - 2 Beds 1 Baths 569 Sq/Ft Plan #18-402 Floor Plan - Main Floor Plan -
Floor Plan - Upper Floor Plan
Traditional Style House Plan - 2 Beds 1 Baths 569 Sq/Ft Plan #18-402 Floor Plan - Upper Floor Plan -

Full Specs & Features

Basic Features

Baths : 1
Stories : 2
Garage Stalls : 2
Potential Bedrooms : 0
Bedrooms : 2


Depth : 28'
Width : 28'
Height : 26'


Main Floor Sq Ft : 784 sq ft
Total Sq Ft : 569 sq ft *
Upper Floor Sq Ft : 569 sq ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Main Ceiling Ft : 8'


Primary Pitch : 12:12

Exterior Wall Framing

Framing : 2"x6"

Kitchen Features

Breakfast Nook

Additional Room Features

Great Room Living Room

Garage Features

Oversized Garage

What's included in this plan set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :
  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

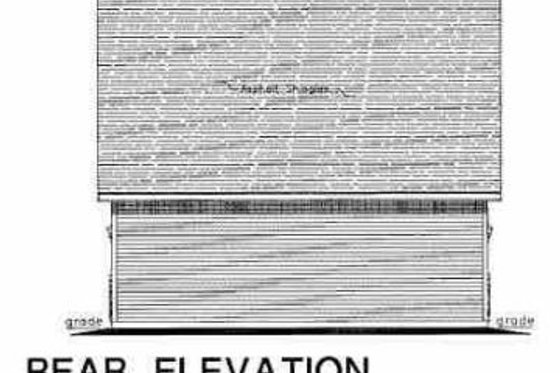

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
*See important information before purchasing


Plan Options
PDF Set Best Value! $300.00 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set $400.00 5 printed plan sets mailed to you.
CAD Set $700.00 For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options
Slab $0.00 Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Additional Copies $30.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reverse Sets $50.00/each Choose how many sets of the 5 or 8 copy set to mirror. Text and dimensions will be backwards. Click here for more information.
Right-Reading Reverse $75.00 Choose this option to reverse your plans and to have the text and dimensions readable. Click here for more information.
Material List $50.00 A list of building supplies needed to construct the infrastructure of your new house. Click here for more information.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.
