Plan #514-8

Key Specs


  • 633 sq ft

  • 1 Bedroom

  • 1 Bathroom

  • 2 Floors

  • No Garage

Plan Description

Designed By Eric Moser This compact 1.5 story plans includes a large room on the second floor that can be used as a bedroom or open studio.

Floor Plans

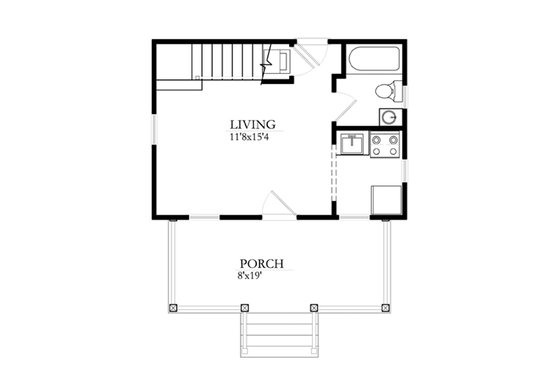

Main Floor Plan
Saved! Cottage Style House Plan - 1 Beds 1 Baths 633 Sq/Ft Plan #514-8 Main Floor Plan - Houseplans.com

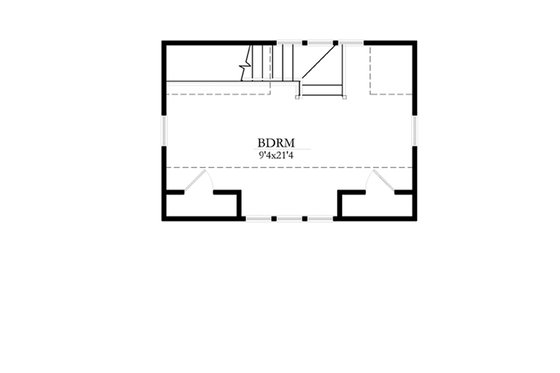

Upper Floor Plan
Saved! Cottage Style House Plan - 1 Beds 1 Baths 633 Sq/Ft Plan #514-8 Upper Floor Plan - Houseplans.com

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Stories : 2
Garage Stalls : 0
Potential Bedrooms : 0
Bedrooms : 1
Baths : 1

Dimension

Width : 22'
Depth : 24'

Area

Upper Floor Sq Ft : 292 sq ft
Total Sq Ft : 633 sq ft
Main Floor Sq Ft : 341 sq ft

Ceiling

Main Ceiling Ft : 8'
Upper Ceiling Ft : 8'

Roof

Roof Framing : Truss
Secondary Pitch : 3:12
Primary Pitch : 12:12

Exterior Wall Framing

Framing : 2"x6"
Exterior Wall Finish : cement board siding

What's included in this plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

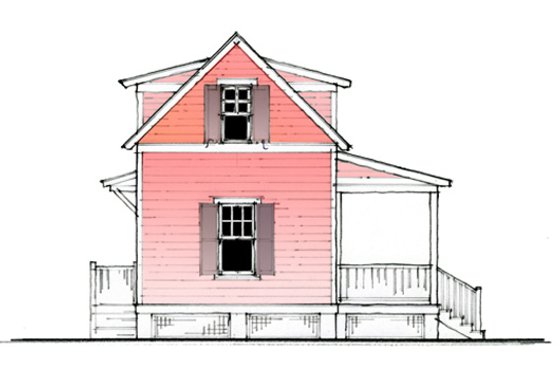

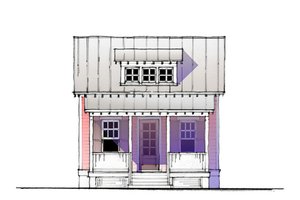

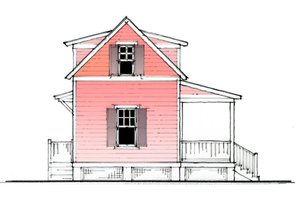

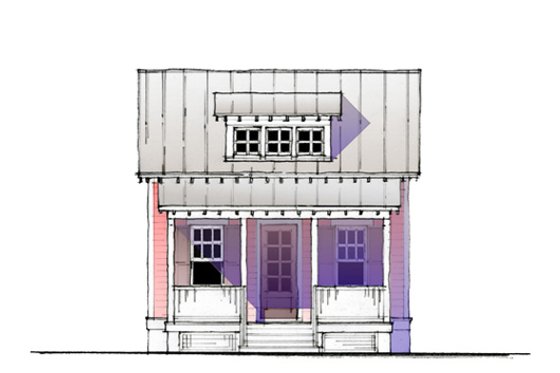

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Pricing

Plan Set Price

5 Copy Set
$850.00
Reproducible Set
$950.00

Foundation Price

Pier
+$0.00

Additional Construction Sets $40.00/each

Mirror Reverse Sets $0.00/each

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.
