Plan #556-1

Key Specs


  • 1 Bedroom

  • 1 Bathroom

  • 1 Floor

  • No Garage

  • 672 sq ft

Plan Description

The Desert Shelters was designed with hot dry climates in mind. A slab on grade foundation and stucco siding is standard with this shelter design package. Additional siding options are available for this design and include fiber cement panels or corten steel siding. Exterior walls are constructed from 2x6 studs with spray foam cavity insulation, providing superior thermal resistance to the elements. The roof construction consists of exposed beam and decking with six inches of rigid foam board insulation and a white rubber roofing finish. Rubber roofing was chosen for its durability and affordability. Because of the low slope of the roof, the roofing finish will not be visible from the ground and is ideal for mounting solar panels. plans also include a solar PV system design, rainwater harvesting system design and a full material list.

This.house plan also includes a solar PV system design, rainwater harvesting system design and a full material list.

Floor Plans

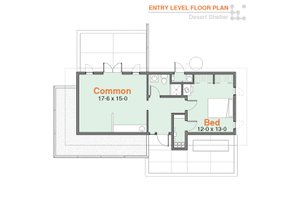

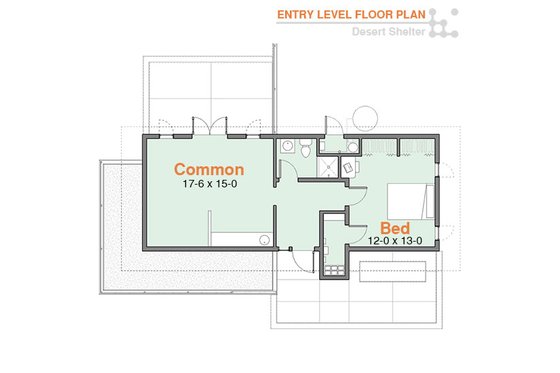

Main Floor Plan

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Garage Stalls : 0
Baths : 1
Stories : 1
Bedrooms : 1

Dimension

Depth : 16'
Width : 41'

Area

Total Sq Ft : 672 sq ft
Main Floor Sq Ft : 672 sq ft

Ceiling

Ceiling Details :

Roof

Roof Framing :
Roof Load :
Roof Type :

Exterior Wall Framing

Insulation :
Framing : 2x6
Exterior Wall Finish :

More

Economical To Build

Energy Efficient Features

Energy Efficient Design

What's included in this plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

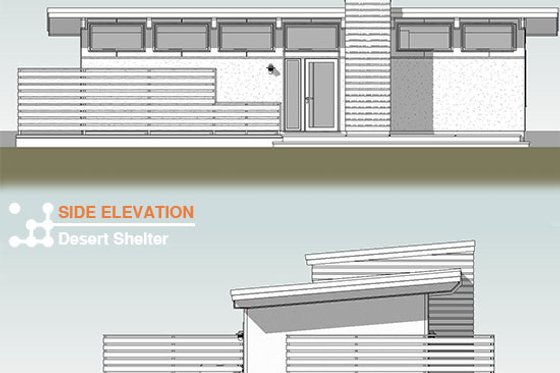

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Pricing

Plan Set Price

PDF Set
$1250.00
5 Copy Set
$1450.00

Foundation Price

Crawlspace
+$0.00
Slab
+$0.00

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Meet the Designer - Off Grid Shelters LLC

null - Houseplans.com
"A love for the outdoors, disdain for the rat race, and the desire for more independence are just a few reasons more and more Americans are choosing to move off the grid. My designs are tailored to the off-grid lifestyle and integrate system planning for energy, water and waste system solutions. These features add unique value to rural customers with limited or no access to public utilities."
