Plan #27-455

Key Specs


  • 8665 sq ft

  • 4 Bedrooms

  • 4.75 Bathrooms

  • 1 Floor

  • 5 Garage

Plan Description

This West Indies house plan offers beauty and comfort within its 5,377 sq. ft. of living space. Enjoy entertaining friends and family with amenities like a large center island kitchen with seating for five, a radial wet bar with a dome ceiling design and an outdoor kitchen and lounge area with an open-air cupola. A formal living room with stone faced fireplace, split bedrooms, massive master suite with private outdoor shower and a 5 car garage are just a few reasons why this house plan is so great. With over 40 feet of sliding glass doors that pocket out-of-sight in the family room and a large swimming pool with sun shelf and spa.

Please note, this design is not available for purchase for construction in Florida.

Floor Plans

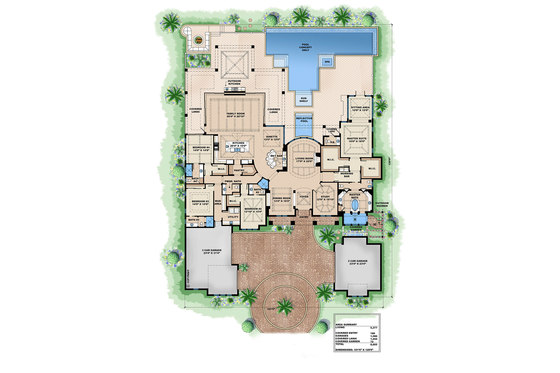

Main Floor Plan
Saved! European Style House Plan - 4 Beds 4.75 Baths 8665 Sq/Ft Plan #27-455 Main Floor Plan - Houseplans.com

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Stories : 1
Garage Stalls : 5
Bedrooms : 4
Baths : 4.75

Dimension

Width : 101' 6"
Height : 33' 1"
Depth : 129'

Area

Porch Sq Ft : 1444 sq ft
Total Sq Ft : 8665 sq ft
Main Floor Sq Ft : 5377 sq ft
Garage Sq Ft : 1586 sq ft

Ceiling

Main Ceiling Ft : 12'
Ceiling Details : Vault, Tray, tongue & groove, Double Coffer

Roof

Roof Framing : Manufactured Trusses
Primary Pitch : 8:12

Exterior Wall Framing

Framing : CMU
Exterior Wall Finish : Stucco

Bedroom Features

Main Floor Bedrooms
Walk In Closet
Main Floor Master Bedroom
In Law Suite
Split Bedrooms

Kitchen Features

Kitchen Island
Walk In Pantry Cabinet Pantry
Peninsula Eating Bar
Butler's Pantry
Breakfast Nook

Additional Room Features

Nursery Room
Main Floor Laundry
Storage Area
Master Sitting Area
Family Room Keeping Room
Workshop
Wet Bar
Den Office Study Computer

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Outdoor Kitchen Grill
Covered Rear Porch
Covered Front Porch

More

Wheelchair Adaptable
Suited For Vacation Home

What's included in this plan set

Please call if building in Lee and Collier Counties of Florida, restrictions apply.

Elevations - Drawn at 1/8" to 1/4" Scale, and Includes:
Material Labels
Floor-to-Floor Heights
Roof Slope Indicators
Floor Plans - Drawn at 1/8" to 1/4" Scale and Includes:
Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes
Electrical Layouts
Building Section Markers
All Electrical Outlets, Fixtures, and Switching
Slab Plan - Drawn at 1/8" to 1/4" Scale and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)
Roof Design Plan - Drawn at 1/8" to 1/4" scale and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valleys
Building Section Markers
Building Sections - Drawn at 1/8" to 1/4" Scale and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8" to 1/2" Scale and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness
Miscellaneous Notes and Details
Miscellaneous General Notes
Stairway details (if applicable)

Pricing

Plan Set Price

CAD Set
$4285.71
PDF Set
$4285.71
Reproducible Set
$4285.71

Foundation Price

Slab
+$0.00

Right-Reading Reverse $767.14
