Plan #433-2

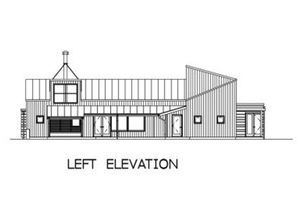

Modern Exterior - Other Elevation Plan #433-2
  • 2504
  • 3 beds
  • 2.50 baths
  • 74' wide
  • 103' deep


Right-Reading Reverse
Plan Set
5 Copy Set
Mirror Reversed Sets
Each Additional Set
Additional Construction Sets
Each Additional Set

House Features

  • Main Floor Bedrooms
  • Main Floor Master Bedroom
  • Breakfast Nook
  • Den Office Study Computer
  • Great Room Living Room
  • Media Room
  • Oversized Garage
  • Side Entry Garage
  • Grill Deck Sundeck
  • Covered Front Porch
  • Covered Rear Porch
  • Courtyard
  • Suited For View Lot
  • Suited For Corner Lot
  • Den Office Study Computer
  • Great Room Living Room
  • Media Room

Styles Classifications

  • Modern
  • Ranch


Garage 495 sq/ft
Porch 176 sq/ft
Patios 1088 sq/ft
Decks 718 sq/ft
Storage 488 sq/ft
Main Floor 2398 sq/ft
Upper Floor 106 sq/ft
Width 74'
Depth 103'
Height 22'
Roof Framing Wood
Primary Pitch 3:12
Roof Type Metal/ EPDM
Garage Ceiling 14'
Upper Ceiling Ft 10'
Main Ceiling 9'
Ceiling Details Main Floor Ceiling is 9'-0" to 15'-8".Upper floor is 10'-5".Garage floor ceiling is 14'-4"
Floor Plan - Main Floor Plan
Floor Plan - Upper Floor Plan

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see http://houseplans.com/whats-included.

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Note: All sales on house plans are final. No refunds or exchanges can be given once your order has been fulfilled or once we have begun to customize a home plan to your specifications.
