Questions about this plan? Visit Houseplans today or call 1-800-913-2350

You can view this plan at houseplans.com/p/30-205

Plan #30-205

Traditional Exterior - Front Elevation Plan #30-205
  • 2651
  • 3 beds
  • 2.50 baths
  • 62' wide
  • 45' deep


Plan Set
5 Copy Set
8 Copy Set
Reproducible Set

House Features

  • Upstairs Master Bedrooms
  • Upstairs Bedrooms
  • Walk In Closet
  • Eating Bar
  • Breakfast Nook
  • Storage Area
  • Upstairs Laundry
  • Family Room Keeping Room
  • Oversized Garage
  • Side Entry Garage
  • Covered Front Porch
  • Suited For View Lot
  • Storage Area
  • Upstairs Laundry
  • Family Room Keeping Room

Styles Classifications

  • Colonial
  • Traditional


Upper Floor 1331 sq/ft
Bonus 219 sq/ft
Decks 208 sq/ft
Main Floor 1320 sq/ft
Storage 48 sq/ft
Garage 484 sq/ft
Porch 132 sq/ft
Depth 45'
Width 62'
Height 30'
Roof Type shingle
Roof Framing stick
Roof Load 20
Primary Pitch 8:12
Secondary Pitch 12:12
Bonus Ceiling 8'
Main Ceiling 9'
Garage Ceiling 10'
Upper Ceiling Ft 8'
Ceiling Details Two-story open Foyer; tray ceiling at Master Suite

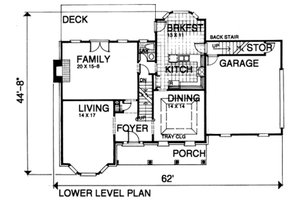

Floor Plan - Main Floor Plan

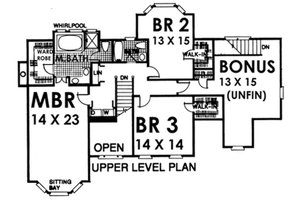

Floor Plan - Upper Floor Plan

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see http://houseplans.com/whats-included.

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Note: All sales on house plans are final. No refunds or exchanges can be given once your order has been fulfilled or once we have begun to customize a home plan to your specifications.
