Plan 27-420

3985 sq/ft,
4 beds,
5 baths,
76' wide,
109' deep

Pricing

Plan Set
CAD Set
$2286.00
PDF Set
$2286.00
Reproducible Set
$2286.00
Foundation
Slab
+$0.00
Audio Video Design
Each
$100.00
Construction Guide
Each
$39.00

House Features

Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Breakfast Nook
Butler's Pantry
Eating Bar
Kitchen Island
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Master Sitting Area
Storage Area
Sunroom
Side Entry Garage
Suited For View Lot
Covered Rear Porch
Outdoor Kitchen Grill
Screened Porch

Styles Classifications

Mediterranean
European
Ranch

Specifications

Garage
696 sq/ft
Main Floor
3985 sq/ft
Patios
728 sq/ft
Depth
109'
Height
24'
Width
76'
Primary Pitch
6:12
Roof Framing
Manufactured Trusses
Roof Type
Cement Tile

Floor Plan - Main Floor

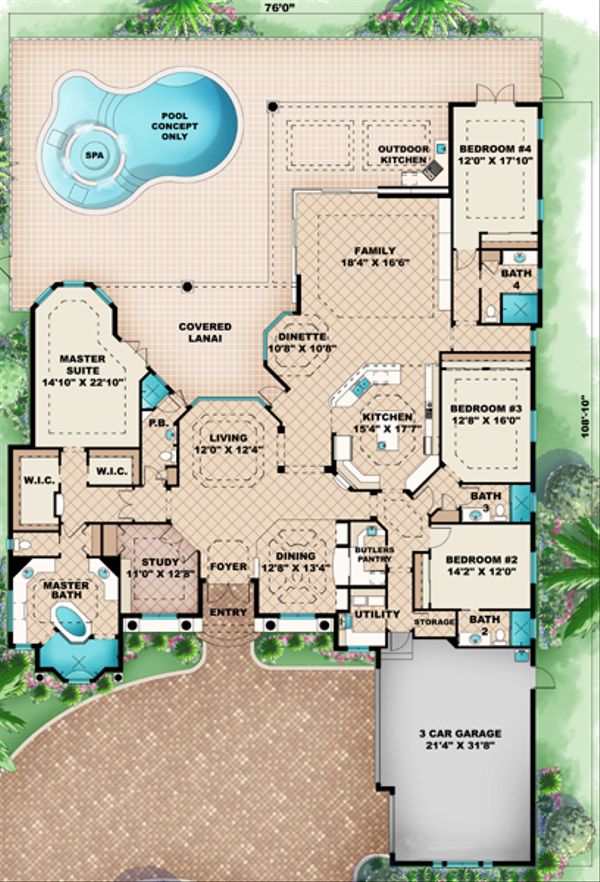

Mediterranean Floor Plan - Main Floor Plan #27-420
