Plan #27-420

Key Specs


  • 3985 sq ft

  • 4 Bedrooms

  • 5 Bathrooms

  • 1 Floor

  • 3 Garage

Plan Description

This coastal home plan is an award winning house plan! Four bedrooms each with their own bath makes this house plan great for your coastal or lake front lot. Like most of our house plans, this one was designed with view orientation in mind. The pass through opening in the dining room to the butler's pantry creates a perfect serving station for dinner guests. The gourmet kitchen is superior in design and convenience. The dropped coffered ceiling in the kitchen provides intimate recessed lighting and a wonderful place to display art and kitchen decor. This house plan is certainly setting a trend in residential design.
Modify This Plan

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350 for assistance.

Floor Plans

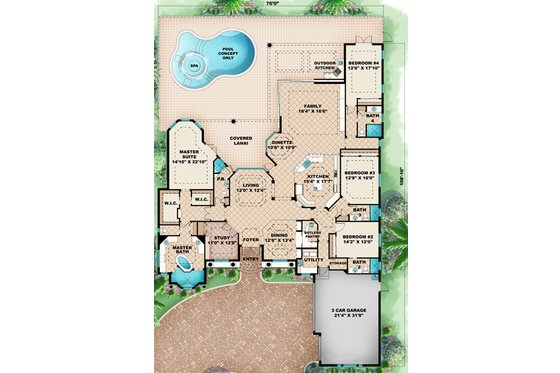

Floor Plan - Main Floor Plan
Mediterranean Style House Plan - 4 Beds 5 Baths 3985 Sq/Ft Plan #27-420 Floor Plan - Main Floor Plan - Houseplans.com

Full Specs & Features

Basic Features

Bedrooms : 4
Garage Stalls : 3
Potential Bedrooms : 5
Stories : 1
Baths : 5

Dimension

Depth : 109'
Height : 24'
Width : 76'

Area

Patios Sq Ft : 728 sq ft
Total Sq Ft : 3985 sq ft *
Garage Sq Ft : 696 sq ft
Main Floor Sq Ft : 3985 sq ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Roof Framing : Manufactured Trusses
Primary Pitch : 6:12
Roof Type : Cement Tile

Exterior Wall Framing

Framing : Concrete block
Exterior Wall Finish : Stucco

Bedroom Features

Walk In Closet
Main Floor Master Bedroom
Guest Suite
Main Floor Bedrooms

Kitchen Features

Butler's Pantry
Breakfast Nook
Peninsula Eating Bar
Kitchen Island

Additional Room Features

Master Sitting Area
Family Room Keeping Room
Great Room Living Room
Den Office Study Computer
Storage Area
Main Floor Laundry

Garage Features

Side Entry Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Covered Rear Porch
Outdoor Kitchen Grill
Screened Porch Sunroom

Code Compliance

Irc 2006

What's included in this plan set

See a sample plan set

Please call if building in Lee and Collier Counties of Florida, restrictions apply.

    Elevations - Drawn at 1/8" to 1/4" Scale, and Includes:
    • Material Labels
    • Foor-to-Floor Heights
    • Roof Slope Indicators
    Floor Plans - Drawn at 1/8" to 1/4" Scale and Includes:
    • Door and Window Sizes
    • Completely Dimensioned Floor Plan
    • Room Labels and Interior Room Sizes
    • Electrical Layouts
    • Building Section Markers
    • All Electrical Outlets, Fixtures, and Switching
    • Floor and Deck Joist Size and Spacing
    • Rough-in Plumbing Location (if applicable)
    • Mechanical Equipment Locations (if applicable)
    • Electrical Locations (if applicable)
    Roof Design Plan - Drawn at 1/8" to 1/4" scale and Includes:
    • All Beam and Header Heights and Locations
    • All Hips, Gables, Ridges and Valleys
    • Building Section Markers
    Building Sections - Drawn at 1/8" to 1/4" Scale and Includes:
    • Floor Joist Size and Spacing
    • Floor-to-Floor Heights
    • Non-Typical Plate Heights Indicated
    Typical Wall Sections - Drawn at 1/8" to 1/2" Scale and Includes
    • All Labels Indicating Wall Construction
    • Foundation Wall Thickness and Reinforcing
    • Insulation Type and Thickness
    Miscellaneous Notes and Details
    • Miscellaneous General Notes
    • Stairway details (if applicable)
    Please Note: This design will not come with a foundation. The foundation should be created by a local structural engineer.

*See important information before purchasing

Pricing

Plan Options
CAD Set $2286.00 For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set Best Value! $2286.00 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set $2286.00 For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Foundation Options
Slab $0.00 Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Right-Reading Reverse $350.00 Choose this option to reverse your plans and to have the text and dimensions readable. Click here for more information.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

What's included?
Instant Download After Checkout

Subtotal $2286.00

Best Price Guaranteed*

Or order by phone: 1-800-913-2350

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-to-Build Report
