Plan #487-7

Farmhouse Exterior - Front Elevation Plan #487-7 - Houseplans.com
  • 1592 sq ft
  • 3 beds
  • 2 baths
  • 56' wide
  • 48' deep


Plan Set
Reproducible Set
Single Set
Right-Reading Reverse

House Features

  • Main Floor Master Bedroom
  • Walk In Closet
  • Upstairs Bedrooms
  • Peninsula Eating Bar
  • Kitchen Island
  • Walk In Pantry Cabinet Pantry
  • Den Office Study Computer
  • Great Room Living Room
  • Upstairs Laundry
  • Side Entry Garage
  • Rear Garage
  • Friend S Entry
  • Covered Front Porch
  • Grill Deck Sundeck
  • Wrap Around Porch
  • Suited For Vacation Home
  • Economical To Build
  • Wheelchair Adaptable
  • Unusual Shape
  • Suited For Narrow Lot
  • Suited For Corner Lot
  • Suited For View Lot
  • Suited For Sloping Lot
  • Den Office Study Computer
  • Great Room Living Room
  • Upstairs Laundry

Styles Classifications

  • Craftsman
  • Cottage
  • Farmhouse
  • Bungalow


Garage Sq Ft 288 sq ft
Upper Floor Sq Ft 443 sq ft
Porch Sq Ft 650 sq ft
Main Floor Sq Ft 1149 sq ft
Total Sq Ft 1592 sq ft
Height 29'
Width 56'
Depth 48'
Roof Type Metal
Primary Pitch 4:12
Roof Load 40 psf total
Secondary Pitch 12:12
Roof Framing Manufactured Trusses
Ceiling Details Ceiling vaults to 11'-6" at Living and Dining/Sitting Rooms. Trayed ceiling at Master Bedroom. Ceiling vaults to 12'-9" at entire upper floor level. Cost-effective manufactured scissor trusses.
Upper Ceiling Ft 9'
Garage Ceiling Ft 10'
Main Ceiling Ft 9'

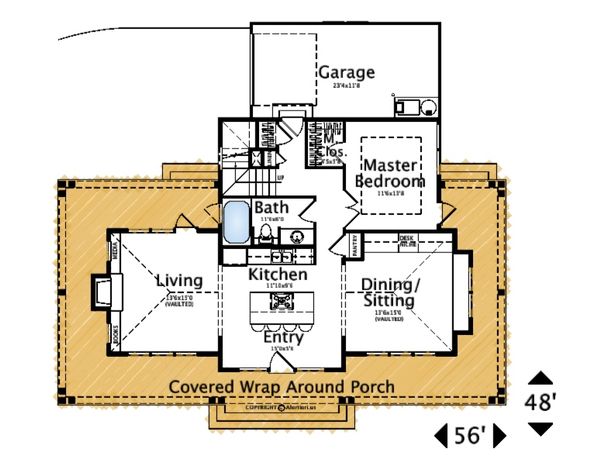

Floor Plan - Main Floor Plan

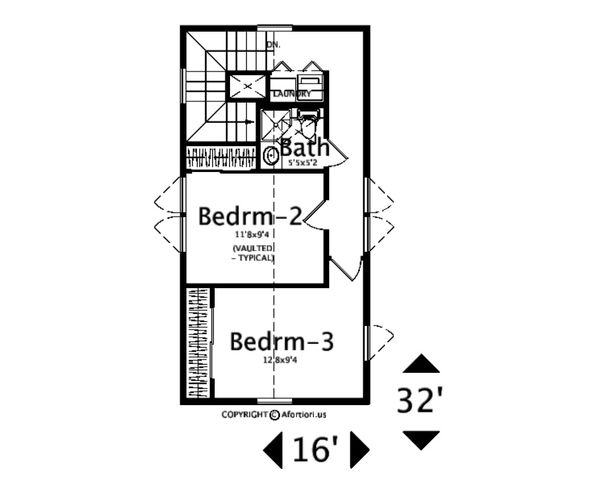

Floor Plan - Upper Floor Plan

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see http://houseplans.com/whats-included.

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Note: All sales on house plans are final. No refunds or exchanges can be given once your order has been fulfilled or once we have begun to customize a home plan to your specifications.
