Plan 487-7

Photographs may show modified designs.
Plan 487-7

Plan Description


Volume Vaulted Ceilings and an Open Floor Plan Lend this Smaller House Plan the Feeling that there is More Than Enough Space on Both Floor Levels. This Plan Comes with a Wrap Around Porch for Outdoor Living, Master Bedroom on the Main Level and Includes a Central Kitchen with Ample Spill Out Space -- Designed for the Way We Live.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2
Stories: 2
Garages: 1

Dimension

Depth : 48'
Height : 29'
Width : 56'

Area

Total : 1592 sq/ft
Garage : 288 sq/ft
Main Floor : 1149 sq/ft
Porch : 650 sq/ft
Upper Floor : 443 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Ceiling vaults to 11'-6" at Living and Dining/Sitting Rooms. Trayed ceiling at Master Bedroom. Ceiling vaults to 12'-9" at entire upper floor level. Cost-effective manufactured scissor trusses.
Garage Ceiling : 10'
Main Ceiling : 9'
Upper Ceiling Ft : 9'

Roof

Primary Pitch : 4:12
Roof Framing : Manufactured Trusses
Roof Load : 40 psf total
Roof Type : Metal
Secondary Pitch : 12:12

Exterior Wall Framing

Exterior Wall Finish : Cedar board & batt style
Framing : 2x6
Insulation : R-21 Walls
Seismic Rating : D1
Wind Rating : 100 MPH (or less)/Exposure B

Bedroom Features

Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Upstairs Laundry

Garage Features

Rear Garage
Side Entry Garage

Entryway

Friend S Entry

Lot Characteristics

Suited For Corner Lot
Suited For Narrow Lot
Suited For Sloping Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch
Grill Deck Sundeck
Wrap Around Porch

More

Economical To Build
Suited For Vacation Home
Unusual Shape
Wheelchair Adaptable

Energy Efficient Features

Energy Efficient Design

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

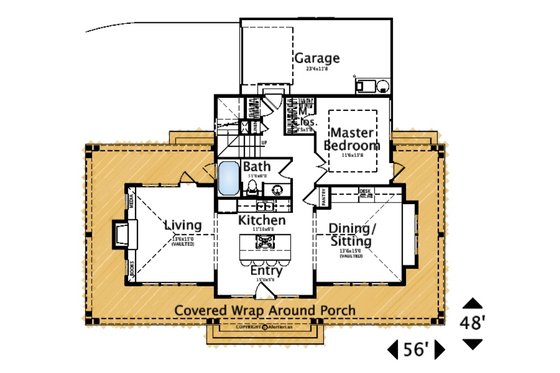

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

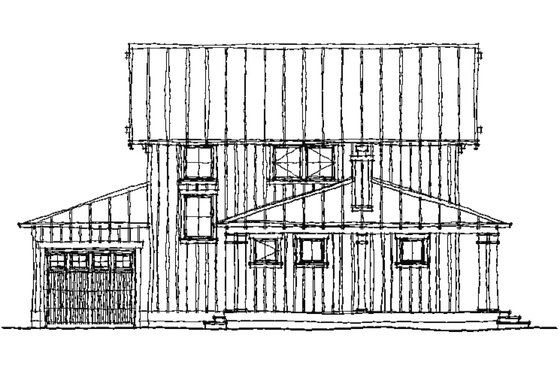

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
