Plan 27-466

11672 sq/ft,
6 beds,
7.5 baths,
92' wide,
140' 2" deep


Plan Set
Reproducible Set
Audio Video Design
Construction Guide

House Features

2 Master Suites
Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Breakfast Nook
Butler's Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Main Floor Laundry
Master Sitting Area
Mud Room
Play Flex Room
Storage Area
Upstairs Laundry
Wet Bar
Wine Cellar
Oversized Garage
Side Entry Garage
Friend S Entry
Suited For View Lot
Covered Rear Porch
Outdoor Kitchen Grill
Jack & Jill Bath
Suited For Vacation Home
Two Family Home
Wheelchair Adaptable

Styles Classifications



188 sq/ft
186 sq/ft
1785 sq/ft
Lower Floor
4489 sq/ft
Main Floor
4569 sq/ft
2697 sq/ft
Upper Floor
2426 sq/ft
140' 2"
44' 7"
Primary Pitch
Roof Framing
Manufactured Trusses
Roof Type
Concrete Tile
Ceiling Details
Vault, coffer, double coffer, deco beam, T&G
Main Ceiling
11' 2"

Floor Plan - Main Floor

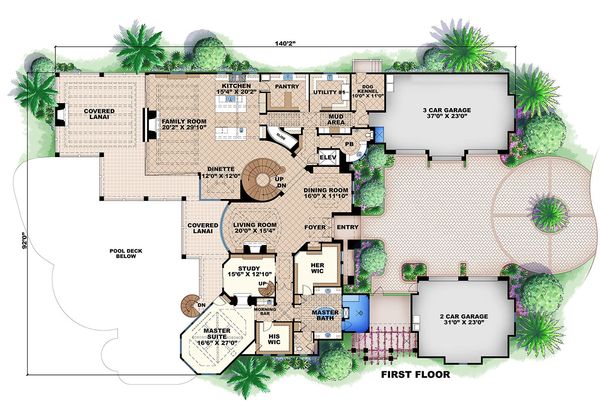

Mediterranean house plan, main level floor plan

Floor Plan - Upper Floor

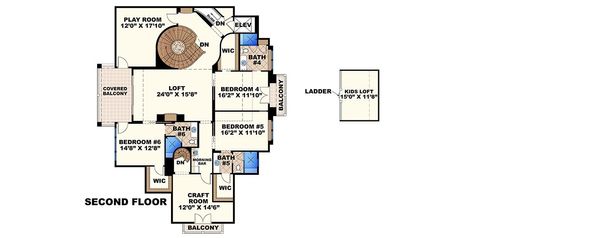

Mediterranean Floor Plan - Upper Floor Plan #27-466

Floor Plan - Lower Floor

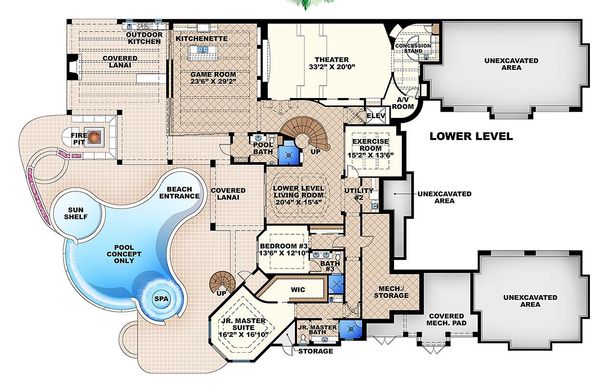

Mediterranean Floor Plan - Lower Floor Plan #27-466
