Plan #27-466

Key Specs


  • 11672 sq ft

  • 6 Bedrooms

  • 7.5 Bathrooms

  • 3 Floors

  • 5 Garage

Plan Description

This unique three-story house plan optimizes the luxury of waterfront living with stunning views from practically every room. The overall style is influenced by a rustic, Tuscan style horse stable with the use of cedar brackets and corbels, stucco and precast and two flanking garages that include a faux hayloft door capped by cedar trellises. This house plan offers 16,783 square feet with six bedrooms including a master and junior master suite, a study, formal living and dining rooms, a large gourmet kitchen that features double islands and a baking kitchen/walk-in pantry, a drive-in themed theatre, a craft room, game room, exercise room, three separate playrooms and even an indoor slide. This Tuscan House Plan also has numerous covered balconies, an elaborate outdoor living area and a 5-car garage. Please call if building in Collier, Lee and Charlotte counties in Florida, restrictions apply.
Modify This Plan

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350 for assistance.

Floor Plans

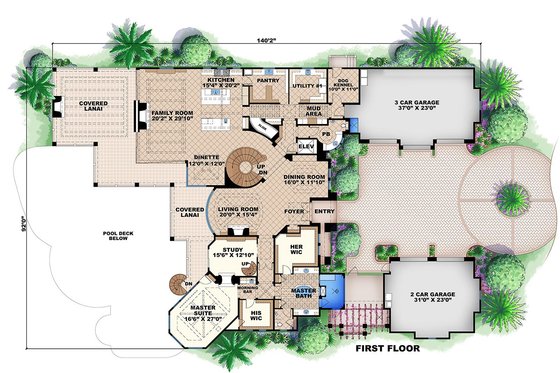

Floor Plan - Main Floor Plan
Mediterranean Style House Plan - 6 Beds 7.5 Baths 11672 Sq/Ft Plan #27-466 Floor Plan - Main Floor Plan - Houseplans.com

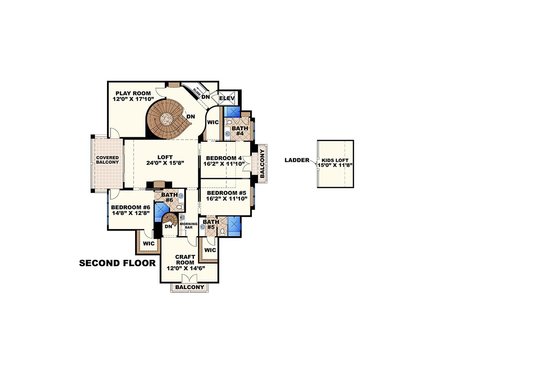

Floor Plan - Upper Floor Plan
Mediterranean Style House Plan - 6 Beds 7.5 Baths 11672 Sq/Ft Plan #27-466 Floor Plan - Upper Floor Plan - Houseplans.com
Floor Plan - Lower Floor Plan
Mediterranean Style House Plan - 6 Beds 7.5 Baths 11672 Sq/Ft Plan #27-466 Floor Plan - Lower Floor Plan - Houseplans.com

Full Specs & Features

Basic Features

Garage Stalls : 5
Baths : 7.5
Stories : 3
Bedrooms : 6

Dimension

Height : 44' 7"
Depth : 140' 2"
Width : 92'

Area

Garage Sq Ft : 1785 sq ft
Lower Floor Sq Ft : 4489 sq ft
Patios Sq Ft : 2697 sq ft
Upper Floor Sq Ft : 2426 sq ft
Decks Sq Ft : 186 sq ft
Main Floor Sq Ft : 4569 sq ft
Total Sq Ft : 11672 sq ft *
Bonus Sq Ft : 188 sq ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Vault, coffer, double coffer, deco beam, T&G
Main Ceiling Ft : 11' 2"

Roof

Roof Type : Concrete Tile
Primary Pitch : 10:12
Roof Framing : Manufactured Trusses

Exterior Wall Framing

Framing : CMU
Exterior Wall Finish : Stucco

Bedroom Features

Walk In Closet
Upstairs Bedrooms
2 Master Suites
Split Bedrooms
Main Floor Bedrooms
In Law Suite
Teen Suite Jack Jill Bath
Main Floor Master Bedroom

Kitchen Features

Breakfast Nook
Peninsula Eating Bar
Walk In Pantry Cabinet Pantry
Butler's Pantry
Kitchen Island

Additional Room Features

Exercise Room
Upstairs Laundry
Mud Room
Den Office Study Computer
Storage Area
Hobby Rec Room Game Room
Workshop
Family Room Keeping Room
Wine Cellar
Master Sitting Area
Main Floor Laundry
Nursery Room
Wet Bar
Bonus Play Flex Room

Garage Features

Oversized Garage
Side Entry Garage

Entryway

Friend S Entry

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Outdoor Kitchen Grill
Loft Balcony
Covered Rear Porch

More

Suited For Vacation Home
Wheelchair Adaptable
Two Family Home

What's included in this plan set

See a sample plan set

Please call if building in Lee and Collier Counties of Florida, restrictions apply.

    Elevations - Drawn at 1/8" to 1/4" Scale, and Includes:
    • Material Labels
    • Foor-to-Floor Heights
    • Roof Slope Indicators
    Floor Plans - Drawn at 1/8" to 1/4" Scale and Includes:
    • Door and Window Sizes
    • Completely Dimensioned Floor Plan
    • Room Labels and Interior Room Sizes
    • Electrical Layouts
    • Building Section Markers
    • All Electrical Outlets, Fixtures, and Switching
    • Floor and Deck Joist Size and Spacing
    • Rough-in Plumbing Location (if applicable)
    • Mechanical Equipment Locations (if applicable)
    • Electrical Locations (if applicable)
    Roof Design Plan - Drawn at 1/8" to 1/4" scale and Includes:
    • All Beam and Header Heights and Locations
    • All Hips, Gables, Ridges and Valleys
    • Building Section Markers
    Building Sections - Drawn at 1/8" to 1/4" Scale and Includes:
    • Floor Joist Size and Spacing
    • Floor-to-Floor Heights
    • Non-Typical Plate Heights Indicated
    Typical Wall Sections - Drawn at 1/8" to 1/2" Scale and Includes
    • All Labels Indicating Wall Construction
    • Foundation Wall Thickness and Reinforcing
    • Insulation Type and Thickness
    Miscellaneous Notes and Details
    • Miscellaneous General Notes
    • Stairway details (if applicable)
    Please Note: This design will not come with a foundation. The foundation should be created by a local structural engineer.

*See important information before purchasing

Pricing

Plan Options
CAD Set $8999.99 For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set Best Value! $8999.99 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set $8999.99 For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Foundation Options
Basement $0.00 Ideal for level lot, lower level of home partially or fully underground.
Additional Options
Right-Reading Reverse $1494.00 Choose this option to reverse your plans and to have the text and dimensions readable. Click here for more information.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

What's included?
Instant Download After Checkout

Subtotal Now $8999.99

You save $1000.00 (10% savings)

Sale ends on 09/30/2016

Best Price Guaranteed*

Or order by phone: 1-800-913-2350

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-to-Build Report
