Plan #460-5

Key Specs


  • 3 Bedrooms

  • 2.5 Bathrooms

  • 1 Floor

  • 2 Garage

  • 1699 sq ft

Plan Description

On the outside, this plan features that great classic beach look (including the front porch swing) with lap siding, exposed roof framing and that classic metal roof. While the exterior offers a lot to love, wait until you see the interior! This plan features 3 large bedrooms and 2 1/2 bathrooms, an oversize kitchen and storage that just won't quit. There is a built in computer station in the public zone and even a screened sleeping porch. The laundry room features a large sink for cleaning the day's catch or the kids shoes. \ \ See Further Description below under Designer Comments:

Floor Plans

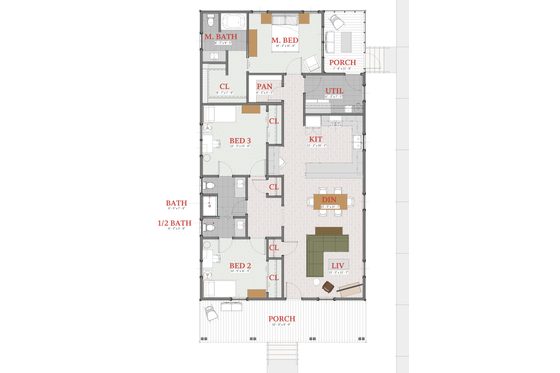

Main Floor Plan
Saved! Beach Style House Plan - 3 Beds 2.5 Baths 1699 Sq/Ft Plan #460-5 Main Floor Plan - Houseplans.com

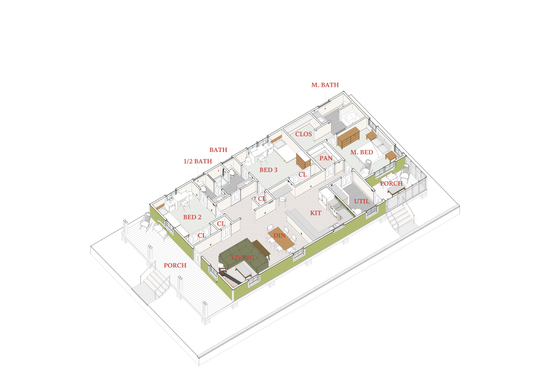

Upper Floor Plan
Saved! Beach Style House Plan - 3 Beds 2.5 Baths 1699 Sq/Ft Plan #460-5 Upper Floor Plan - Houseplans.com

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Garage Stalls : 2
Potential Bedrooms : 0
Baths : 2.5
Stories : 1
Bedrooms : 3

Dimension

Depth : 56'
Width : 32'
Height : 24'

Area

Total Sq Ft : 1699 sq ft
Porch Sq Ft : 96 sq ft
Main Floor Sq Ft : 1699 sq ft

Ceiling

Main Ceiling Ft : 9'

Roof

Primary Pitch : 8:12
Roof Framing : Wood
Roof Type : Metal

Exterior Wall Framing

Framing : 2"x4"

Bedroom Features

Teen Suite Jack Jill Bath
Main Floor Master Bedroom
Walk In Closet
Main Floor Bedrooms

Kitchen Features

Peninsula Eating Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Storage Area
Main Floor Laundry

Garage Features

Carport Porte Cochere

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Covered Rear Porch
Screened Porch Sunroom
Covered Front Porch

More

Suited For Vacation Home
Wheelchair Adaptable
Economical To Build

Code Compliance

Irc 2006

Structural Information Provided

Structural 1st Floor Framing

Energy Efficient Features

Energy Efficient Design
Sip

What's included in this plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

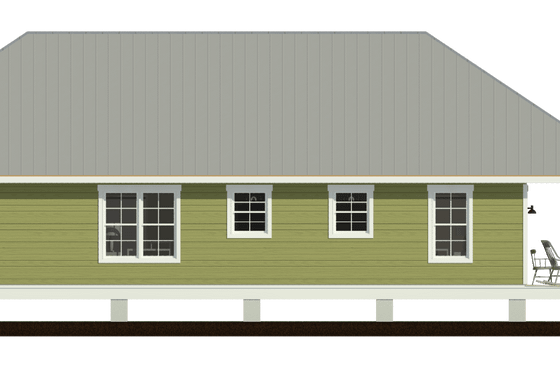

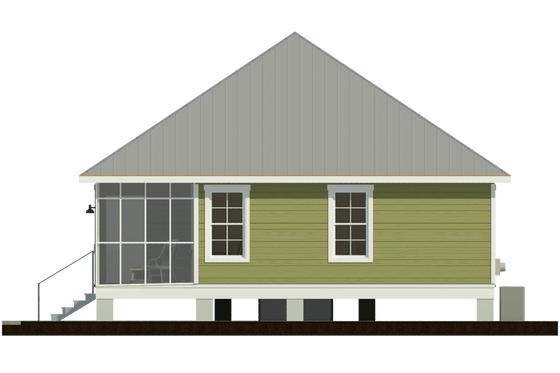

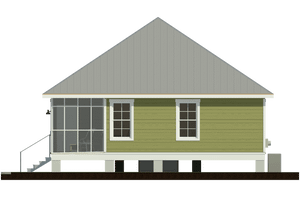

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Pricing

Plan Set Price

5 Copy Set
$2500.00
PDF Set
$2500.00

Foundation Price

Pier
+$0.00

Additional Construction Sets $40.00/each

Mirror Reverse Sets $0.00/each

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Meet the Designer - Daniel E. Bush

null - Houseplans.com
“It's just not practical to invest in a new house that can't adapt to your family's changing needs.”

Dan's more than 20 years of experience as an architectural designer began with student work at Georgia Tech. He is inspired by some of the major design figures of the 1940s and 50s - such as architects Richard Neutra and J. R. Davidson, and developer Joseph Eichler - who knew how to develop plans that were efficient and spacious. "These same principles are even more important in today's homes," he says. "My plans expand interior space by extending multiple views to the outside and by taking advantage of diagonal vistas. They target multi-generational families, the growing need for multiple home offices, and include traditional and modern designs for primary and secondary homes."

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Best Price Guaranteed

Plan Price $2500.00

what's included?

Plan Type

5 printed plan sets and a license to build a single home.

8 copies of the basic package, a single build license and a Cost to Build Report.

For use by design professionals to make substantial changes to your house plan.

For making minor changes to your house plans. This is a set of drawings printed on Vellum or Bond, that comes with a copyright release.

Recommended PDF sets are best for fast, electronic delivery and inexpensive, local printing.

One printed set for bidding purposes only. Not a legal building set.

PDF sets are best for fast, electronic delivery. Not for construction.

Foundation Type

Additional Options
or call to order: 1-800-913-2350
