Plan #497-13

Key Specs


  • 1616 sq ft

  • 2 Bedrooms

  • 2 Bathrooms

  • 2 Floors

  • No Garage

Plan Description

This home has a classic cabin feel with its featured vertical wood siding, and metal roof. This home has a spacious master bedroom upstairs and study on the first floor, with an extra bedroom and bathroom. This is a cabin getaway or lake retreat property. View more Small House Plans
Modify This Plan

This plan can be customized!

Let us know your desired changes and get a free quote.
Click the button or call us now at 1-800-913-2350.

Floor Plans

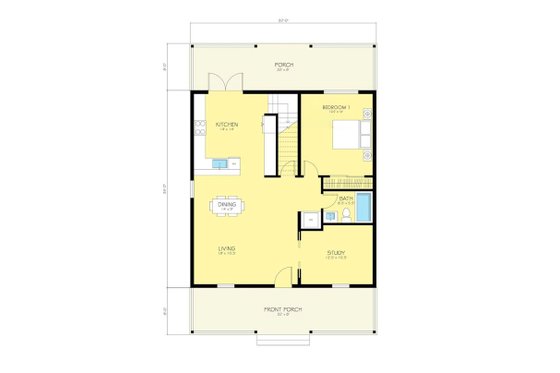

Floor Plan - Main Floor Plan
Cottage Style House Plan - 2 Beds 2 Baths 1616 Sq/Ft Plan #497-13 Floor Plan - Main Floor Plan - Houseplans.com

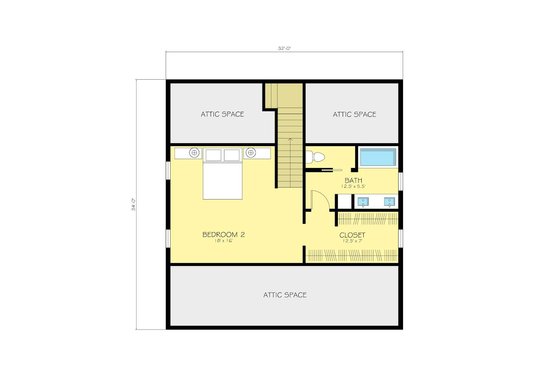

Floor Plan - Upper Floor Plan
Cottage Style House Plan - 2 Beds 2 Baths 1616 Sq/Ft Plan #497-13 Floor Plan - Upper Floor Plan - Houseplans.com

Full Specs & Features

Basic Features

Bedrooms : 2
Potential Bedrooms : 0
Garage Stalls : 0
Stories : 2
Baths : 2

Dimension

Depth : 50'
Width : 32'
Height : 25'

Area

Main Floor Sq Ft : 1100 sq ft
Total Sq Ft : 1616 sq ft *
Upper Floor Sq Ft : 516 sq ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling Ft : 9'

Roof

Secondary Pitch : 4:12
Primary Pitch : 10:12

Exterior Wall Framing

Framing : 2"x6"

Bedroom Features

Upstairs Master Bedrooms
Walk In Closet
Main Floor Bedrooms

Additional Room Features

Main Floor Laundry
Den Office Study Computer

Outdoor Spaces

Covered Rear Porch
Covered Front Porch

Code Compliance

Irc 2006

Structural Information Provided

Foundation Drawing
Structural Roof Framing
Structural 2nd Floor Framing
Structural 1st Floor Framing

What's included in this plan set

See a sample plan set

House plans created by Free Green give our customers design options that meet or exceed existing energy standards, while giving options in the realm of cost, style, and environmental commitment. As an example, all Free Green homes are designed to perform 30% to 50% better than prescriptive building code energy performance. The level of home performance depends on the products that you choose.

Each Free Green house plan includes:

  • LEED for Homes Rating System: Guidelines to meet LEED for Homes certification levels of: Certified, Silver, Gold, and Platinum. LEED for Homes is a national, voluntary certification system, developed by national experts and experienced builders, that promotes the design and construction of high-performance green homes and encourages the adoption of sustainable practices by the homebuilding industry. The LEED for Homes Rating System is part of the suite of nationally recognized LEED Green Building Rating Systems administered by USGBC. Like all LEED Rating Systems, it is the market's leadership system, targeting the top 25% of home building practices in terms of environmental responsibility. LEED provides industry resources and tools on how to "green" any new home. With LEED, homebuilders can differentiate their structures as meeting the highest performance measures, and homebuyers can readily identify high quality green homes. LEED provides national consistency in defining the features of a green home, enables builders anywhere in the country to obtain a green rating on their homes, and assures homebuyers of the quality of their purchases, all based on a recognized national brand. Learn more about the LEED® Rating System here.
  • Window shading details: External window shading devices are an effective method for reducing heat gains through windows during Summer. In fact, external shading devices can reduce heat gains by up to 80% if sized and built properly. With this in mind, Free Green has created this page to assist home builders in constructing effective window shading devices. The information we provide includes a zoning map of the United States, zoning charts for proper sizing of shading devices and a variety of shading device styles and materials to suite different tastes and different home designs.
  • General Notes: Typically one sheet of general notes pertinent to the construction of the home
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Wall sections and other construction details: Detailed drawings showing wall connections, from foundation to the roof. wall connections to foundation, window installation, siding installation, stair details, and more.
  • Framing Plans: Drawn to 1/4" scale. The framing layout is intended to be a suggested layout only. Design loads & weather conditions vary by region. As a result the size, spacing & layout of all structural elements in this home design must be approved by a structural engineer and code official based on your specific site location prior to construction.
  • Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc. Note: Most FreeGreen plans have an electrical plan, however some do not. Please contact us to verify.
*See important information before purchasing

Pricing

Plan Options
PDF Set Best Value! $882.00 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set $1082.00 5 printed plan sets mailed to you.
CAD Set $1882.00 For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Study Set $682.00 One electronic set for bidding purposes only. Not a legal building set.
Foundation Options
Crawlspace $0.00 Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Basement $300.00 Ideal for level lot, lower level of home partially or fully underground.
Slab $300.00 Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Additional Copies $50.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Right-Reading Reverse $150.00 Choose this option to reverse your plans and to have the text and dimensions readable. Click here for more information.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).
