Ranch Style Plan 508-1

Key Specs


Plan Sq Ft

2415
sq ft

Plan Bedrooms

2
Beds

Plan Bathrooms

2
Baths

Plan Floors

1
Floors

Plan Garages

0
Garages

Questions? Get Personalized Help
Select Plan Set Options
What's included?
Additional Construction Sets$85.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

$85.00
$420.75
$33.15
Mirror Reversed Sets$0.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal
NOW $2125.00
You save $375.00
(15% savings)
Sale ends soon!
Best Price Guaranteed

Or order by phone: 1-800-913-2350
Questions? Get Personalized Help



Hours: Mon - Fri 8:30 - 8:30 (EDT)

See Terms & Conditions and Privacy Policy.

Thanks for your question.

We will be in touch shortly.

Wow!
Cost to Build Reports
are Only $4.99
with Code CTB2024 (limit 1)
This report will provide you cost estimates based on location and building materials.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Key Specs


Plan Sq Ft

2415
sq ft

Plan Bedrooms

2
Beds

Plan Bathrooms

2
Baths

Plan Floors

1
Floors

Plan Garages

0
Garages

Plan Description


This plan was built and is one of our featured Building Stories. BLOG: Building A Modern Ranch House The Long House plan by architect Nicholas Lee celebrates easy indoor-outdoor living. It's inspired by the modern ranch house designs of regional modern architect William Wurster. The layout is straightforward: rooms line up like cars on a train, from the spacious great room/kitchen at one end, past the office, bathroom, bedroom, and laundry to the master suite at the other end. Each room opens to the covered gallery running the length of the house. This gallery is wide enough for sitting and outdoor dining, and doubles as the entrance porch beside the kitchen. See also Plan 508-2, with an indoor-outdoor lanai instead of the long porch.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

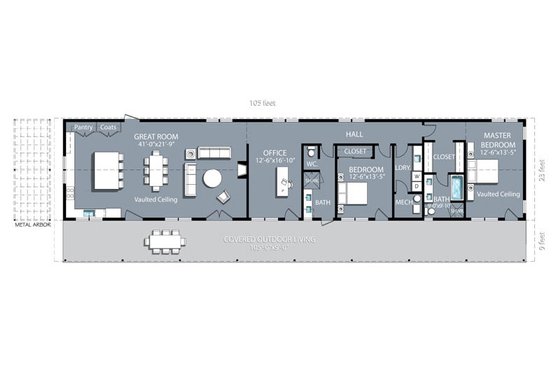

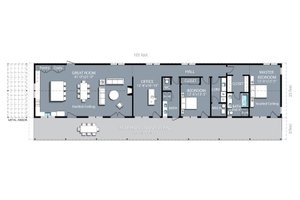

Floor Plan - Main Floor

Reverse
houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Full Specs & Features


Basic Features

Bedrooms : 2
Baths : 2
Stories: 1
Garages: 0

Dimension

Depth : 23'
Height : 15'
Width : 105'

Area

Total : 2415 sq/ft
Main Floor : 2415 sq/ft
Porch : 997 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Vaulted Ceiling at Great Room and Master Bedroom.All other rooms have 10'-0" Ceiling Height.
Lower Ceiling : 10'
Main Ceiling : 14'

Roof

Primary Pitch : 4:12
Roof Framing : Steel / Foam Panel
Roof Type : Asphalt Shingle
Secondary Pitch : 2:12

Exterior Wall Framing

Exterior Wall Finish : Board & Batten
Framing : 2"x6"
Insulation : 31
Sip

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Kitchen Island

Additional Room Features

Den Office Study Computer
Great Room Living Room
Main Floor Laundry

Lot Characteristics

Suited For Narrow Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch

More

Economical To Build
Suited For Vacation Home
Wheelchair Adaptable

Code Compliance

Irc 2006

Energy Efficient Features

Energy Efficient Design
Green Specifications
