  • Plan 520-1

  • 2713 sq ft
  • 4 beds
  • 3 baths
  • 66' wide
  • 52' deep
more details
Houzz
Email Print

Floor Plans

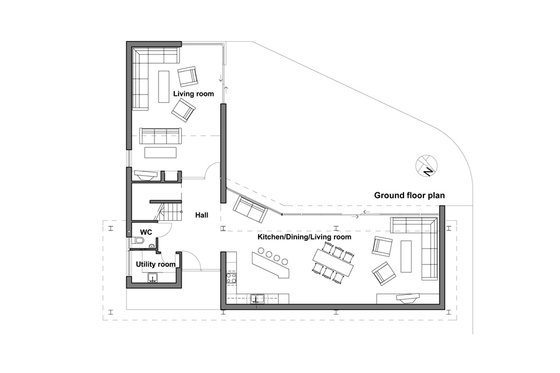

Main Floor Plan

Saved! Modern Style House Plan - 4 Beds 3 Baths 2713 Sq/Ft Plan #520-1 Main Floor Plan - Houseplans.com

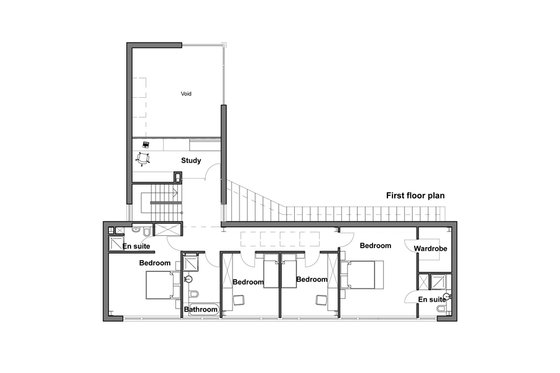

Upper Floor Plan

Saved! Modern Style House Plan - 4 Beds 3 Baths 2713 Sq/Ft Plan #520-1 Upper Floor Plan - Houseplans.com

Specifications

Basic Features

Stories
2
Baths
3
Garage Stalls
0
Potential Bedrooms
0
Bedrooms
4

Area

Upper Floor Sq Ft
1283 sq ft
Total Sq Ft
2713 sq ft
Main Floor Sq Ft
1430 sq ft

Exterior Wall Framing

Exterior Wall Finish
Western red cedar cladding
Framing
Concrete block

Kitchen Features

Kitchen Island
Peninsula Eating Bar

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

More

Suited For Vacation Home

Dimension

Width
66'
Depth
52'
Height
21'

Ceiling

Upper Ceiling Ft
9'
Main Ceiling Ft
9'

Bedroom Features

2 Master Suites
Upstairs Bedrooms
Walk In Closet
Upstairs Master Bedrooms

Additional Room Features

Family Room Keeping Room
Storage Area
Main Floor Laundry
Great Room Living Room

Outdoor Spaces

Covered Rear Porch
Courtyard
Covered Front Porch
Wrap Around Porch

Pricing

Plan Set Price

5 Copy Set
$3200.00
PDF Set
$3200.00

Foundation Price

Slab
+$0.00

Additional Construction Sets $40.00/each

Mirror Reverse Sets $0.00/each

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Plan Content

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Cost-to-Build

To help you determine if this plan will fit within your budget, our Cost-to-Build™ report will provide you a location specific Cost-to-Build™, which is based on your zip code. Order a Cost-to-Build™ Report today to get an accurate, location specific construction cost for any house plan on Houseplans.com. It's a great way to budget your project and compare different plans. It's an easy process and one of our expert plan advisors will take you through a comprehensive interview to determine the materials, finishes, fixtures and more to help you know in advance the likely cost to build a new home from Houseplans.com's blueprints.

Cost-to-Build Report

Best Price Policy

Some of our plans are also available on other websites and in printed catalogs. We are committed to selling these plans at or below the lowest price available elsewhere. If you find a regularly priced plan (not “on-sale”) for a lower price, we'll beat the advertised price by 5%. We will match the price for any on-sale plans.

More details »

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Best Price Guaranteed

Plan Price $3200.00

what's included?

Plan Type

5 printed plan sets and a license to build a single home.

8 copies of the basic package, a single build license and a Cost to Build Report.

For use by design professionals to make substantial changes to your house plan.

For making minor changes to your house plans. This is a set of drawings printed on Vellum or Bond, that comes with a copyright release.

Recommended PDF sets are best for fast, electronic delivery and inexpensive, local printing.

One printed set for bidding purposes only. Not a legal building set.

PDF sets are best for fast, electronic delivery. Not for construction.

Foundation Type

Additional Options
or call to order: 1-800-913-2350

How much will this cost to build?

This plan can be modified!
