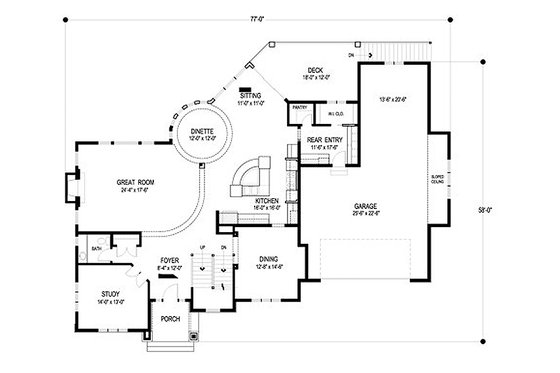

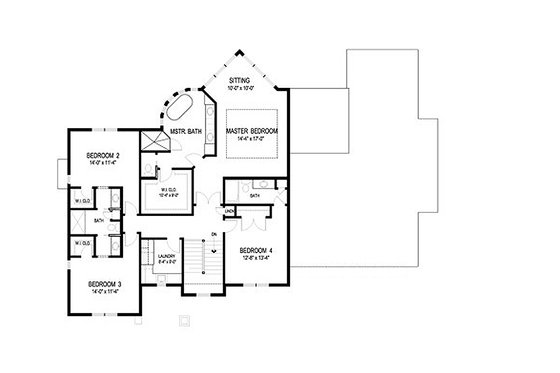

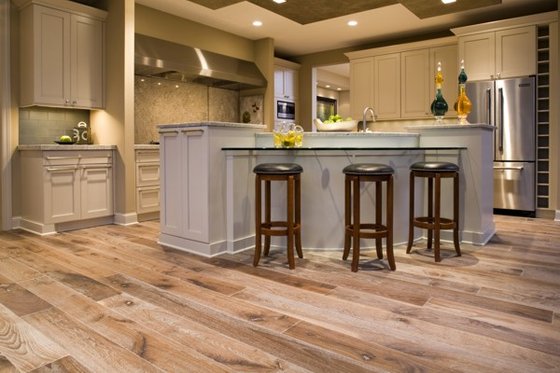

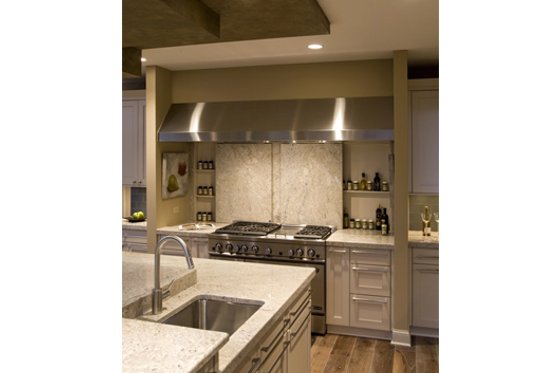

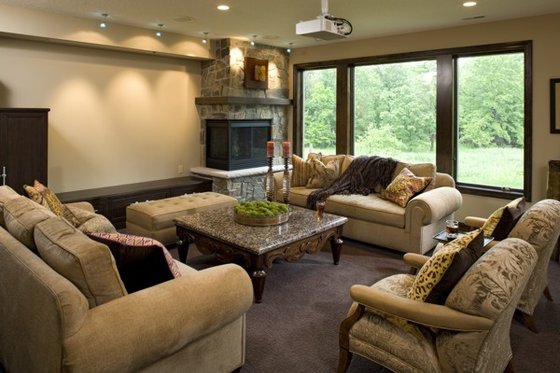

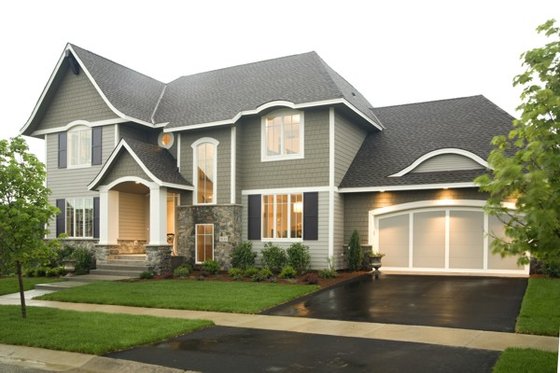

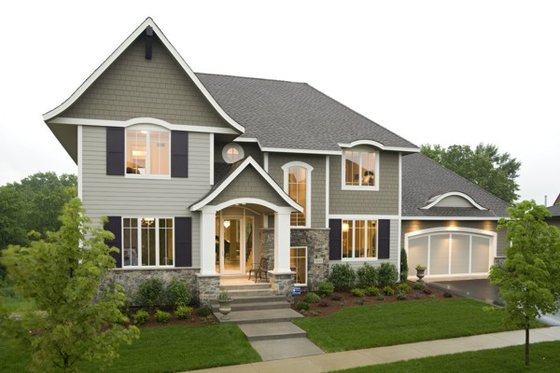

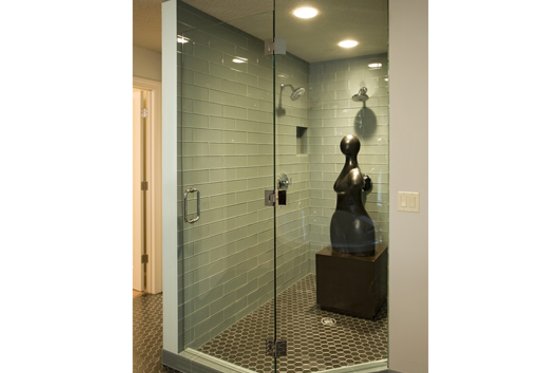

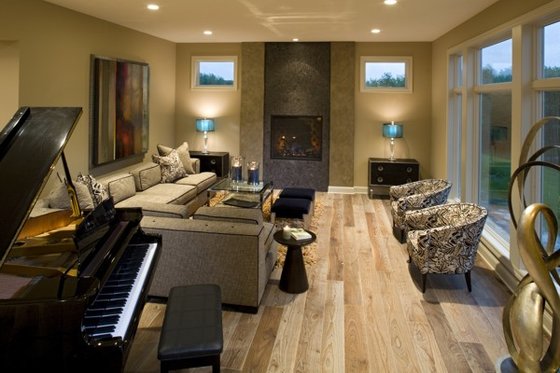

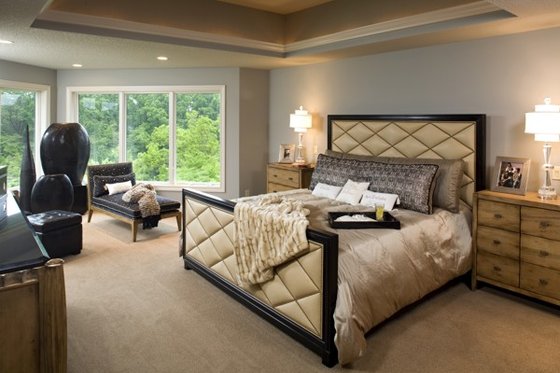

The charming exterior of this home is graced with a covered porch and multiple focal windows. Once inside, the grand foyer welcomes you home. Located a few steps away, a generous dining room adjoins a fully-equipped gourmet kitchen. This kitchen is a chef's delight with an abundance of counter space for food prep and entertaining. The L-shaped center island is filled-in with a rounded glass serving bar. Above the cook-top are sliding panels which hide cooking spices, oils, etc. when not in use. Included in this kitchen space are a sitting area which accesses the deck, and an informal dinette. The expansive great room boasts multiple windows and a fireplace. Tucked away in the front corner of this home is a private study. An adjacent powder room services this main level. On the opposite side of this floor is the entry room to the garage with a walk-in pantry, a walk-in closet, storage lockers, cabinetry and seating. And don't forget to check out the oversized garage! \ \ On the upper level of this plan, you will find a luxurious master suite with a sitting area and 3 additional bedroom suites. The master bedroom features an enormous bathroom with a walk-in shower and garden tub. Clothing storage abounds in the spacious walk-in closet. Bedrooms #2 and 3 feature walk-in closets and share a private bathroom with shower. Each bedroom has its' own lavatory area. Bedroom #4 has a private bath with a tub. A laundry room complete with cabinetry and a laundry sink is conveniently located on this floor. \ \ The basement level of this home is fun for all ages! The game room is the perfect size for that pool table you've always wanted. Just off the game room is a wet bar. Next to the game room is the recreation room with built-in cabinetry. A private multi-purpose room is just that! Completing this level is a guest room with a walk-in closet and a bathroom with a shower
- ARTIST RENDERING
- EXTERIOR ELEVATIONS: All four sides
- FLOOR PLAN(S)
- FOUNDATION PLAN
- CROSS SECTIONS
- CABINET ELEVATIONS
- ROOF PLAN
- 3D OVERVIEW: most but not all plans by this designer are offered with a 3D overview. If this is important to you please contact one of our sales representative for verification.
- ELECTRICAL DRAWINGS: Most plans
- DETAIL SHEETS: Pages A-D include general specifications, not specific to individual plans.
Plan Set Price
Additional Construction Sets $70.00/each
Mirror Reverse Sets $50.00/each
Right-Reading Reverse $150.00
* The Single Set is typically stamped "Not for Construction" and is to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas. Most of our plans show a basement and alternate crawl space or slab plan.

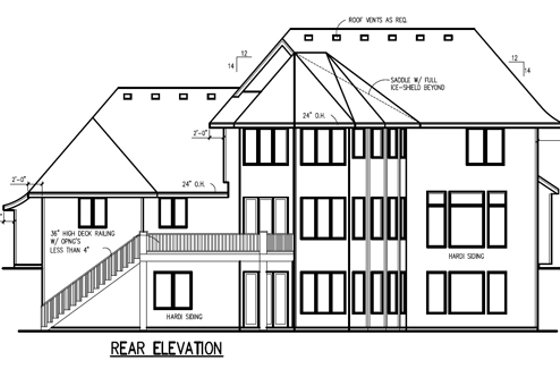

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
To help you determine if this plan will fit within your budget, our Cost-to-Build™ report will provide you a location specific Cost-to-Build™, which is based on your zip code. Order a Cost-to-Build™ Report today to get an accurate, location specific construction cost for any house plan on Houseplans.com. It's a great way to budget your project and compare different plans. It's an easy process and one of our expert plan advisors will take you through a comprehensive interview to determine the materials, finishes, fixtures and more to help you know in advance the likely cost to build a new home from Houseplans.com's blueprints.Cost-to-Build Report
Best Price Policy
Some of our plans are also available on other websites and in printed catalogs. We are committed to selling these plans at or below the lowest price available elsewhere. If you find a regularly priced plan (not “on-sale”) for a lower price, we'll beat the advertised price by 5%. We will match the price for any on-sale plans.More details »
All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.
All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.
In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.
To find out what documents you should expect with your house plans, see what's included?
In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.
Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
