Plan #27-430

Key Specs


  • 4 Bedrooms

  • 4.5 Bathrooms

  • 2 Floors

  • 3 Garage

  • 5049 sq ft

Plan Description

This Mediterranean house plan has two stories, 5,049 sq. ft., 4 bedrooms, 4 full baths, 2 powder rooms, family room, parlor, library, dining room, game room or theater, plus an upstairs sun deck. You'll also find plenty of storage and a hobby area in the 3-car garage of this floor plan. Enjoy gorgeous rear views from all angles of the house plan while entertaining on your massive lanai. Got a waterfront lot? This would be perfect!

Full Specs & Features

Basic Features

Garage Stalls : 3
Potential Bedrooms : 4
Baths : 4.5
Stories : 2
Bedrooms : 4

Dimension

Depth : 118'
Width : 108'
Height : 34'

Area

Upper Floor Sq Ft : 1348 sq ft
Patios Sq Ft : 2041 sq ft
Decks Sq Ft : 283 sq ft
Garage Sq Ft : 1356 sq ft
Total Sq Ft : 5049 sq ft
Main Floor Sq Ft : 3701 sq ft

Roof

Primary Pitch : 6:12
Roof Framing : Manufactured Trusses
Roof Type : Cement Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : Concrete block

Bedroom Features

Upstairs Bedrooms
Main Floor Master Bedroom
Walk In Closet
Guest Suite

Kitchen Features

Peninsula Eating Bar
Walk In Pantry Cabinet Pantry
Kitchenette Wet Bar
Kitchen Island
Breakfast Nook

Additional Room Features

Storage Area
Hobby Rec Room Game Room
Wine Cellar
Workshop
Great Room Living Room
Bonus Play Flex Room
Parlor
Family Room Keeping Room
Library Room
Main Floor Laundry
Wet Bar

Garage Features

Oversized Garage
Side Entry Garage
RV Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Grill Deck Sundeck
Covered Rear Porch
Screened Porch Sunroom
Loft Balcony
Outdoor Kitchen Grill
Covered Front Porch
Courtyard

Code Compliance

Irc 2006

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Floor Plans

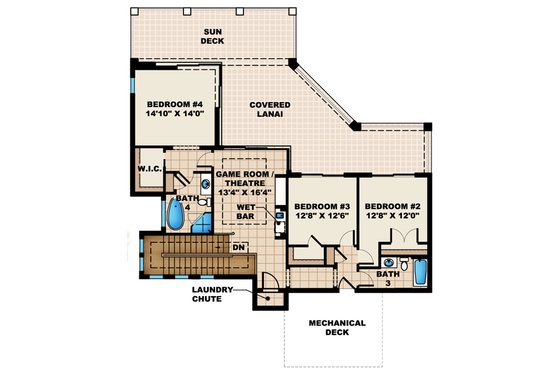

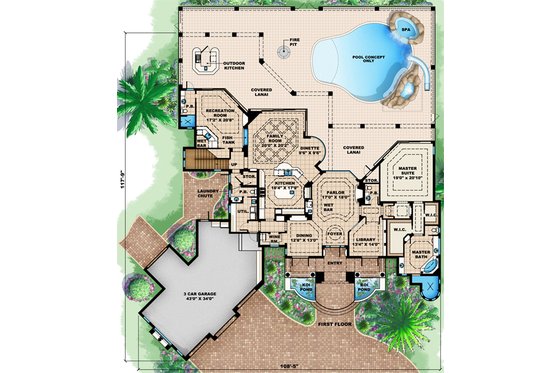

Main Floor Plan Upper Floor Plan

What's included in this plan set

Please call if building in Lee and Collier Counties of Florida, restrictions apply.

Elevations - Drawn at 1/8" to 1/4" Scale, and Includes:
Material Labels
Floor-to-Floor Heights
Roof Slope Indicators
Floor Plans - Drawn at 1/8" to 1/4" Scale and Includes:
Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes
Electrical Layouts
Building Section Markers
All Electrical Outlets, Fixtures, and Switching
Slab Plan - Drawn at 1/8" to 1/4" Scale and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)
Roof Design Plan - Drawn at 1/8" to 1/4" scale and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valleys
Building Section Markers
Building Sections - Drawn at 1/8" to 1/4" Scale and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8" to 1/2" Scale and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness
Miscellaneous Notes and Details
Miscellaneous General Notes
Stairway details (if applicable)

Pricing

Plan Set Price

Reproducible Set
$1050.00
CAD Set
$1900.00
PDF Set
$1900.00

Foundation Price

Slab
+$0.00

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Best Price Guaranteed

Plan Price $1050.00

what's included?

Plan Type

5 printed plan sets and a license to build a single home.

8 copies of the basic package, a single build license and a Cost to Build Report.

For use by design professionals to make substantial changes to your house plan.

For making minor changes to your house plans. This is a set of drawings printed on Vellum or Bond, that comes with a copyright release.

Recommended PDF sets are best for fast, electronic delivery and inexpensive, local printing.

One printed set for bidding purposes only. Not a legal building set.

PDF sets are best for fast, electronic delivery. Not for construction.

Foundation Type

or call to order: 1-800-913-2350

How much will this cost to build?

This plan can be modified!

Also by This Designer
