Plan #27-317

Key Specs


  • 5829 sq ft

  • 4 Bedrooms

  • 6.5 Bathrooms

  • 3 Floors

  • 3 Garage
Modify This Plan

This plan can be customized!

Let us know your desired changes and get a free quote.
Click the button or call us now at 1-800-913-2350.

Floor Plans

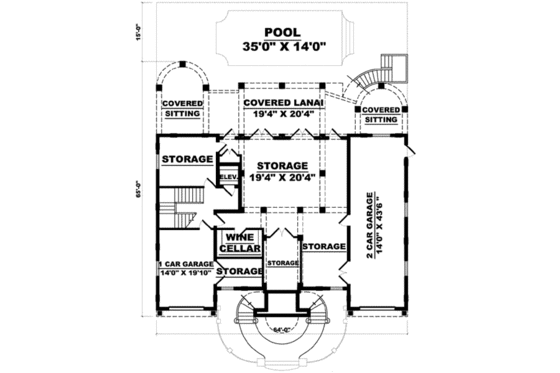

Floor Plan - Lower Floor Plan
Saved! Mediterranean Style House Plan - 4 Beds 6.5 Baths 5829 Sq/Ft Plan #27-317 Floor Plan - Lower Floor Plan - Houseplans.com
Floor Plan - Main Floor Plan
Saved! Mediterranean Style House Plan - 4 Beds 6.5 Baths 5829 Sq/Ft Plan #27-317 Floor Plan - Main Floor Plan - Houseplans.com

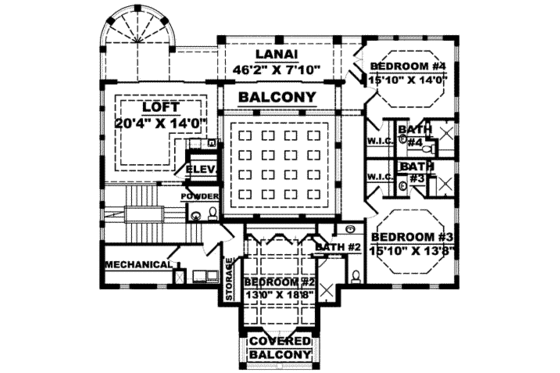

Floor Plan - Upper Floor Plan
Saved! Mediterranean Style House Plan - 4 Beds 6.5 Baths 5829 Sq/Ft Plan #27-317 Floor Plan - Upper Floor Plan - Houseplans.com

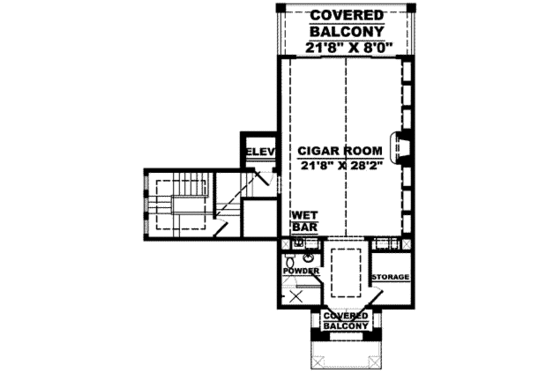

Floor Plan - Other Floor Plan
Saved! Mediterranean Style House Plan - 4 Beds 6.5 Baths 5829 Sq/Ft Plan #27-317 Floor Plan - Other Floor Plan - Houseplans.com

Full Specs & Features

Basic Features

Stories : 3
Bedrooms : 4
Potential Bedrooms : 0
Garage Stalls : 3
Baths : 6.5

Dimension

Height : 49'
Depth : 65'
Width : 64'

Area

Main Floor Sq Ft : 3130 sq ft
Total Sq Ft : 5829 sq ft *
Lower Floor Sq Ft : 882 sq ft
Upper Floor Sq Ft : 1817 sq ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Exterior Wall Framing

Framing : Concrete block

Bedroom Features

Walk In Closet
Main Floor Master Bedroom

Kitchen Features

Walk In Pantry Cabinet Pantry
Breakfast Nook
Kitchen Island
Peninsula Eating Bar
Butler's Pantry

Additional Room Features

Master Sitting Area
Hobby Rec Room Game Room
Wine Cellar
Great Room Living Room
Den Office Study Computer
Storage Area

Garage Features

Tandem Garage
Garage Under

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Covered Rear Porch
Loft Balcony
Covered Front Porch

What's included in this plan set

Please call if building in Lee and Collier Counties of Florida, restrictions apply.
Elevations - Drawn at 1/8" to 1/4" Scale, and Includes:
Material Labels
Floor-to-Floor Heights
Roof Slope Indicators
Floor Plans - Drawn at 1/8" to 1/4" Scale and Includes:
Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes
Electrical Layouts
Building Section Markers
All Electrical Outlets, Fixtures, and Switching
Slab Plan - Drawn at 1/8" to 1/4" Scale and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)
Roof Design Plan - Drawn at 1/8" to 1/4" scale and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valleys
Building Section Markers
Building Sections - Drawn at 1/8" to 1/4" Scale and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8" to 1/2" Scale and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness
Miscellaneous Notes and Details
Miscellaneous General Notes
Stairway details (if applicable)
*See important information before purchasing

Pricing

Plan Options
CAD Set $3572.00 For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set Best Value! $3572.00 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set $3572.00 For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Foundation Options
Slab $0.00 Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Right-Reading Reverse $500.00 Choose this option to reverse your plans and to have the text and dimensions readable. Click here for more information.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.
