Plan #450-2

Key Specs


  • 1157 sq ft

  • 1 Bedroom

  • 1 Bathroom

  • 2 Floors

  • No Garage

Plan Description

An efficient modern agrarian home suitable for a weekend house, secondary structure, or vacation home. Large barn doors open the living space to the site, for a unique outdoor living experience. The long, narrow aspect ratio is designed for best energy performance in summer and winter and works well on a small or narrow lot. A thermal chimney serves both for daylighting of the upper loft and as a passive cooling device for the whole house in warm weather. The upper balcony awning can support a 1.08 KW solar photovoltaic system in addition to shading the structure below. The house's 2x6 exterior framing makes it an ideal candidate either for advanced framing a proven stick framing system that reduces lumber and increases insulation for better energy performance or structural insulated panels (SIPs).

Floor Plans

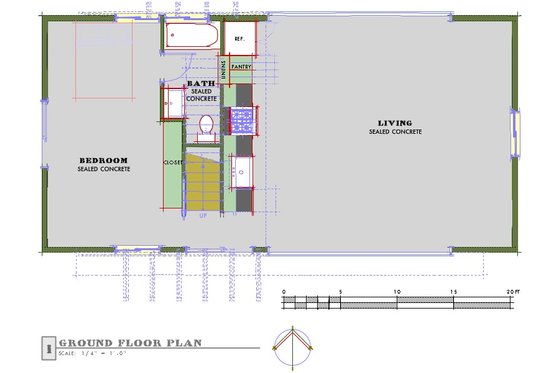

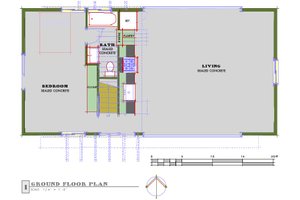

Main Floor Plan
Saved! Farmhouse Style House Plan - 1 Beds 1 Baths 1157 Sq/Ft Plan #450-2 Main Floor Plan - Houseplans.com

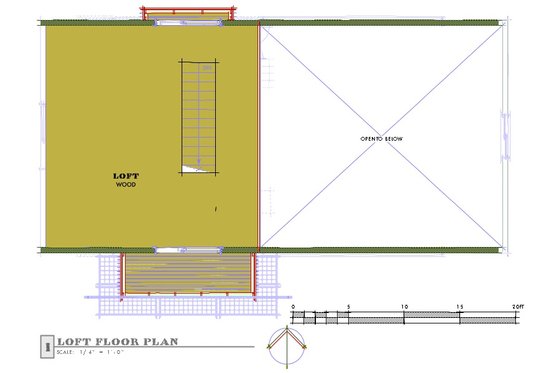

Upper Floor Plan
Saved! Farmhouse Style House Plan - 1 Beds 1 Baths 1157 Sq/Ft Plan #450-2 Upper Floor Plan - Houseplans.com

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Baths : 1
Bedrooms : 1
Potential Bedrooms : 2
Garage Stalls : 0
Stories : 2

Dimension

Width : 21'
Depth : 42'
Height : 30'

Area

Upper Floor Sq Ft : 279 sq ft
Porch Sq Ft : 45 sq ft
Total Sq Ft : 1157 sq ft
Main Floor Sq Ft : 879 sq ft

Ceiling

Upper Ceiling Ft : 9'
Ceiling Details : Continuous vaulted ceiling in living room and loft
Main Ceiling Ft : 19'

Roof

Roof Framing : 2x10
Primary Pitch : 8:12
Roof Type : Metal
Secondary Pitch : 3:12

Exterior Wall Framing

Exterior Wall Finish : Fiber cement panel + metal
Insulation : R-21
Framing : 2x6

Bedroom Features

Main Floor Bedrooms

Additional Room Features

Great Room Living Room
Unfinished Future Space
Bonus Play Flex Room

Lot Characteristics

Suited For Narrow Lot
Suited For Corner Lot

Outdoor Spaces

Loft Balcony

More

Suited For Vacation Home

Code Compliance

Irc 2003

Structural Information Provided

Foundation Drawing

Energy Efficient Features

Passive Solar Systems

What's included in this plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Pricing

Plan Set Price

PDF Set
$1400.00

Foundation Price

Slab
+$0.00

Additional Construction Sets $50.00/each

Mirror Reverse Sets $50.00/each

Right-Reading Reverse $500.00

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Meet the Designer - Francois Levy

null - Houseplans.com
"I design homes for people living lightly on the earth, sustainably and in beauty."

Francois Levy designs buildings that capture the imagination, express regional beauty and a sense of place. His projects reflect their cultural and geographical context, and are accessible and comprehensible to the user rather than obeying a preconceived architectural agenda. Levy is particularly passionate about creating projects that eloquently express how we use and conserve energy and water, and inhabit their site. All his work - whether in architecture, teaching or research - investigates the intersection of design, technology, and sustainability. His architectural projects have attracted regional and national press, including features on HGTV and in magazines such as Dwell, This Old House and Natural Home.

Levy holds a BA in classics and philosophy from St John's College in Santa Fe, and two Masters degrees from The University of Texas at Austin, one in Architecture and the other in Engineering. He has taught digital design and environmental controls courses at UT Austin, UT San Antonio, and St. Edward's University. Levy has presented and lectured widely on CAD and BIM (building information modeling). He is the author of BIM in Small-Scale Sustainable Design (pictured below), published by Wiley. His current areas of research interest are sustainable architecture, BIM, cooling through passive ventilation, and space architecture, on which he has presented at international aerospace conferences.
