Plan #536-1

Key Specs


  • 1413 sq ft

  • 3 Bedrooms

  • 3 Bathrooms

  • 2 Floors

  • No Garage

Plan Description

A large front porch provides ample outdoor living space. With two bedrooms and two baths on the first level the upstairs area is loft like with vaulted ceilings and dormer windows. The living/dining/kitchen areas are adjacent to the front porch allowing for these living spaces to interact. Ideal plan for urban lot home or a vacation cottage at the beach or wilderness.

This plan is also featured in our Editor's Blog, EYE ON DESIGN.

New Katrina Cottages and Bungalows
Modify This Plan

This plan can be customized!

Let us know your desired changes and get a free quote.
Click the button or call us now at 1-800-913-2350.

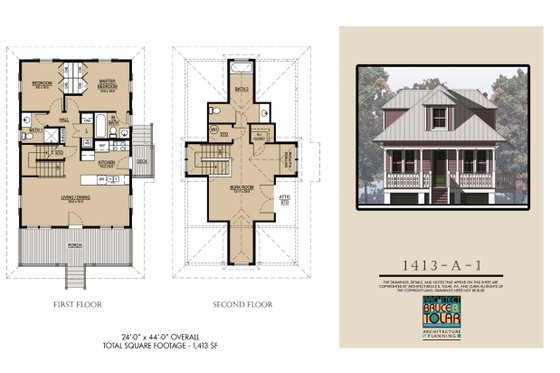

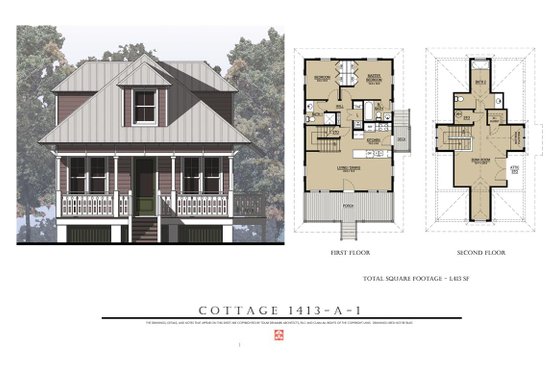

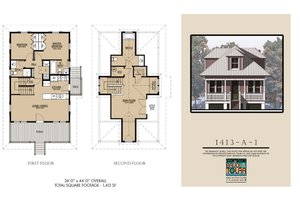

Floor Plans

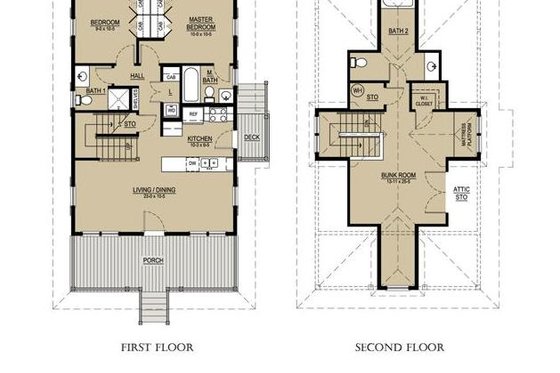

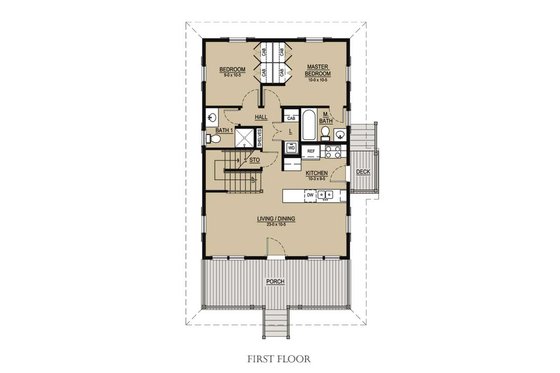

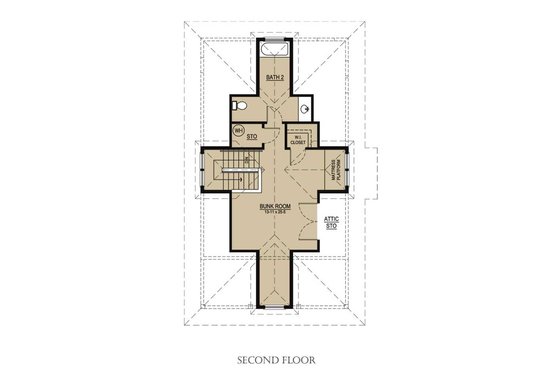

Floor Plan - Main Floor Plan Floor Plan - Upper Floor Plan

Full Specs & Features

Basic Features

Baths : 3
Stories : 2
Garage Stalls : 0
Bedrooms : 3

Dimension

Depth : 44'
Width : 24'

Area

Main Floor Sq Ft : 864 sq ft
Upper Floor Sq Ft : 549 sq ft
Total Sq Ft : 1413 sq ft *
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Bonus Ceiling Ft : 0"
Upper Ceiling Ft : 0"
Main Ceiling Ft : 9'

Roof

Roof Framing : Wood rafters
Primary Pitch : 10:12

Exterior Wall Framing

Framing : Wood
Exterior Wall Finish : cement board siding
Wind Rating : 140

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Upstairs Bedrooms

Additional Room Features

Main Floor Laundry

Lot Characteristics

Suited For Narrow Lot
Suited For Corner Lot

Outdoor Spaces

Covered Front Porch

More

Suited For Vacation Home
Economical To Build

Energy Efficient Features

Energy Efficient Design

What's included in this plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing

Plan Options
5 Copy Set $1300.00 5 printed plan sets mailed to you.
PDF Set Best Value! $1300.00 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation Options
Pier $0.00 Ideal for lot conditions where the home needs to be off the ground. A pier foundation consists of wood posts or concrete piers connected by beams to support the home. Some lots may require drilling deep into bedrock to support the posts.
Additional Options
Additional Copies $50.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Meet the Designer - Bruce B Tolar

null - Houseplans.com
"We believe that the idea of "home" implies more than what is bordered by room dimensions and lot lines. So while we are committed to individual house designs that achieve the highest levels of safety, livability and curb appeal, we want them to perform as building blocks for community, as well."

Architect Bruce B. Tolar, P.A. is an architectural, planning and development firm headquartered on the Mississippi Gulf Coast. From our vantage point at the epicenter of coastal growth during the boom years of the 1980s and 1990s and of disaster recovery in the wake of Hurricane Katrina in 2005, we have learned the lessons of quality design from the individual parcel to the neighborhood to the broader community.

Many of our techniques were refined during the go-go years of community development on the upper Gulf Coast from Northwest Florida to Louisiana. We learned how to integrate state-of-the-art custom home techniques with state-of-the-art planning for compact, walkable new towns. Those skills were, in turn, applied to the recovery and rebuilding process after Katrina.

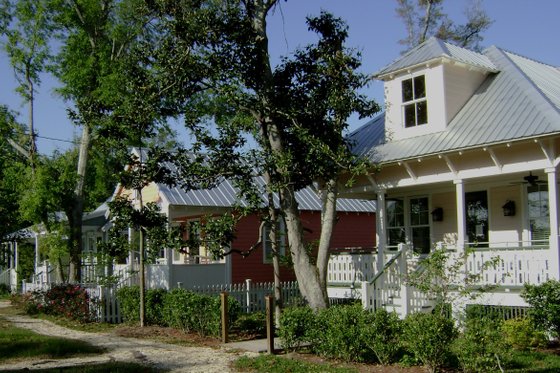

As partners on the team commissioned by the Mississippi Governor's Commission on recovery planning, we helped shape the Katrina Cottage movement, which proposed alternatives to FEMA trailers that could transition to permanent, storm-worthy homes in new or existing neighborhoods. We took on the role of developers for a model neighborhood of Katrina Cottage designs. That Ocean Springs, Mississippi neighborhood “Cottage Square“ exhibits 14 units in a two-acre cluster, mixing residential and commercial uses and seven design variations ranging from a 200-square-foot studio to a 1,300-square-foot, two story structure we currently use as our office.

A winner of innovation awards from both the Congress for the New Urbanism and Cottage Living Magazine, Cottage Square is inspiring an expanding list of new cottage neighborhoods that utilize our designs and site plans, often in combination with design and development partners.
