Plan #120-171

Key Specs


  • 1848 sq ft

  • 3 Bedrooms

  • 2 Bathrooms

  • 1 Floor

  • 2 Garage

Plan Description

Scaled down just a bit from plan 120-162, this floor plan substitutes a WorkShop in lieu of a Media Rm/Study option. Same great look and feel and same room for entertaining inside and out..

Floor Plans

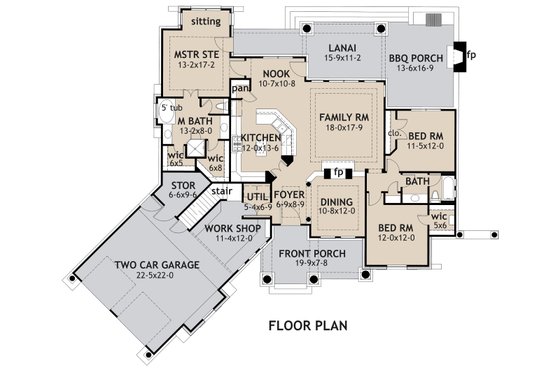

Main Floor Plan
Saved! Craftsman Style House Plan - 3 Beds 2 Baths 1848 Sq/Ft Plan #120-171 Main Floor Plan - Houseplans.com

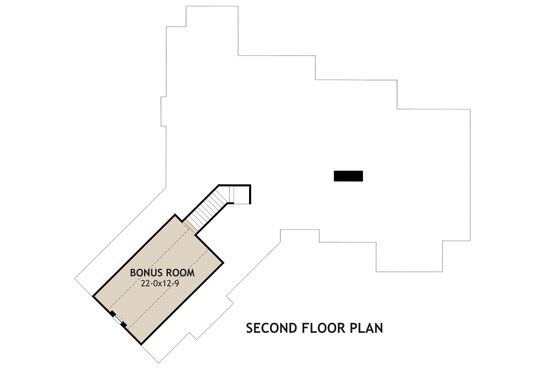

Upper Floor Plan
Saved! Craftsman Style House Plan - 3 Beds 2 Baths 1848 Sq/Ft Plan #120-171 Upper Floor Plan - Houseplans.com

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Stories : 1
Garage Stalls : 2
Potential Bedrooms : 3
Bedrooms : 3
Baths : 2

Dimension

Width : 79'
Height : 30'
Depth : 71'

Area

Bonus Sq Ft : 302 sq ft
Porch Sq Ft : 448 sq ft
Total Sq Ft : 1848 sq ft
Main Floor Sq Ft : 1848 sq ft
Garage Sq Ft : 549 sq ft
Patios Sq Ft : 281 sq ft
Storage Sq Ft : 244 sq ft

Ceiling

Main Ceiling Ft : 10'
Ceiling Details : Stepped ceiling in Family, Dining and Master Suite starting at 12' and going up from there.
Garage Ceiling Ft : 8'
Bonus Ceiling Ft : 9'

Roof

Roof Framing : stick
Primary Pitch : 12:12
Roof Load : 20

Exterior Wall Framing

Framing : 2"x4"

Bedroom Features

Main Floor Bedrooms
Walk In Closet
Main Floor Master Bedroom
Split Bedrooms

Kitchen Features

Kitchen Island
Walk In Pantry Cabinet Pantry
Peninsula Eating Bar
Breakfast Nook

Additional Room Features

Main Floor Laundry
Bonus Play Flex Room
Mud Room
Hobby Rec Room Game Room
Master Sitting Area
Storage Area
Family Room Keeping Room
Workshop
Media Room
Unfinished Future Space

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot
Suited For Sloping Lot

Outdoor Spaces

Outdoor Kitchen Grill
Covered Rear Porch
Grill Deck Sundeck
Covered Front Porch

More

Unusual Shape
Empty Nester
Suited For Vacation Home

Code Compliance

Irc 2006

Structural Information Provided

Structural 1st Floor Framing
Structural Roof Framing
Structural 2nd Floor Framing

What's included in this plan set

  • Floor Plans: A 1/4" = 1'-0" scale floor plan indicating frame walls and masonry with dimensions, notes, door and window sizes, room names and floor finishes, cabinet, shelving, fixture locations and notes, ceiling conditions, electrical/lighting fixtures and switches.
  • Exterior Elevations: Front Elevation at 1/4" = 1'-0", side and rear elevations at 1/8" = 1'-0", plate heights, roof overhangs, material/surface notes, window heights, roof pitches, material hatching for clarity, floor to floor dimensions and any other detail we feel is necessary to explain the construction.
  • Cabinets/Building Sections: Cabinet elevations at 3/8" = 1'-0", showing cabinets, appliance locations, plumbing fixtures, shelving, counter/backsplash surface, cabinet material and finish, niche details and any other special situation that cannot be understood from the plan view. Building Sections are included only when there is no other way to indicate the spatial characteristics of the home. This information is quite often indicated well enough on the elevations and plans.
  • Foundation Plans: Fully dimensioned and noted indicating wall composition and thickness, construction detail references to our detail page, beam, pier and column locations and sizes, stair locations for basements, reinforcing steel sizes and step downs in monolithic slabs and ventilation grilles for crawlspaces.
  • Framing Plans: A 1/8" = 1'-0" scale plan indicating rafter, ceiling and floor joists locations, sizes and spacing as well as lumber grade specified, additional bracing and blocking.
  • Details: For each foundation type, 3/4" = 1'-0" scale details are included indicating material composition, size and critical dimensions for construction of the primary foundation.

Pricing

Plan Set Price

5 Copy Set
$995.00
8 Copy Set
$1145.00
PDF Set
$1245.00
CAD Set
$1995.00
PDF Study Set
$795.00

Foundation Price

Slab
+$0.00
Crawlspace
+$200.00
Basement
+$300.00
Daylight Basement
+$300.00

Additional Construction Sets $50.00/each

Right-Reading Reverse $200.00

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
