  • Plan 496-27
  • 2820 sq ft
  • 4 beds
  • 2.50 baths
  • 87' wide
  • 33' deep
more details
Houzz
Email Print

Plans

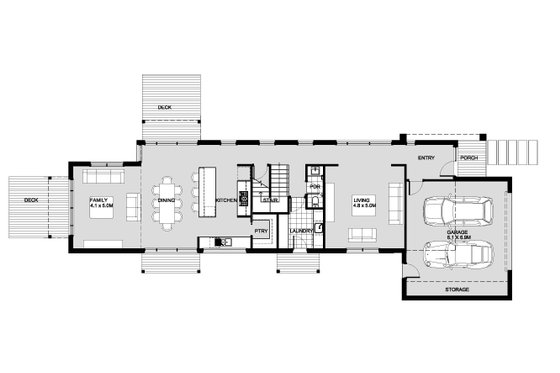

Main Floor Plan

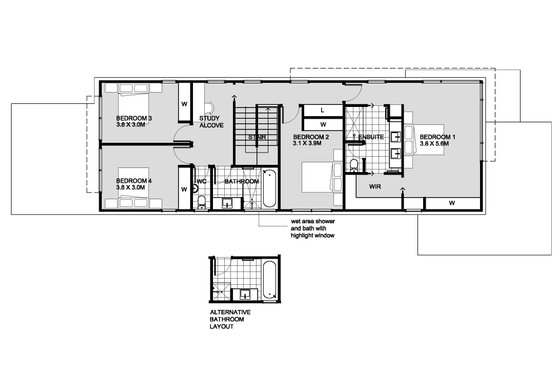

Upper Floor Plan

Specifications

Plan Styles
Modern
Bedroom Features
Upstairs Master Bdrm
Main Floor Bed Bath
Split Bedrooms
Upstairs Bedrooms Bath
Walk In Closet
Area
Main Floor Sq Ft
1507 sq ft
Upper Floor Sq Ft
1313 sq ft
Total Sq Ft
2820 sq ft
Garage Sq Ft
430 sq ft
Additional Rooms
Great Room Living Room
Den Office Study Computer
Main Floor Laundry
Family Room Keeping Room
Garage
Front Entry Garage
Plan Feature
Energy Efficient Design
Dimension
Depth
33'
Height
21'
Width
87'
Kitchen Features
Nook Breakfast Area Dining
Peninsula Eating Bar
Walk In Pantry Cabinet Pantry
Kitchen Island
Lot Characteristics
Suited For Narrow Lot
Suited For View Lot
Basic Features
Garage Stalls
2
Stories
2
Baths
2.50
Bedrooms
4
More
Unique Features
Outdoor Spaces
Grill Deck Sundeck
Covered Front Porch

Pricing

Plan Set Price
5 Copy Set
$1600.00
PDF Set
$1600.00
Reproducible Set
$1600.00
CAD Set
$3600.00
Foundation Price
Slab
+$0.00

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Plan Content

All plans are designed in metric measurements

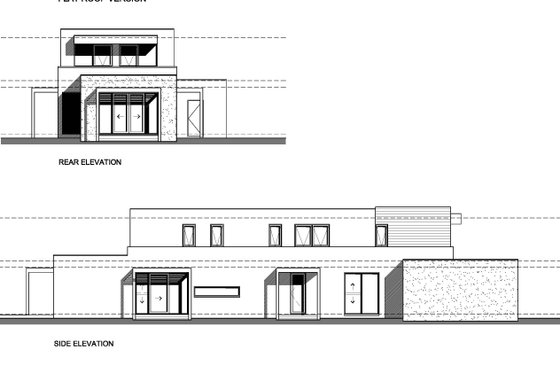

  • Exterior Elevations: Drawn to 1:50 metric scale. A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1:50 metric scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section(s): Drawn to 1:100 metric scale showing vertical cutaway view(s) of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Typical Wall Details: Drawn to 1:10 metric scale.
  • Window Details: Drawn to 1:50 metric scale. This page details window design and details
  • Note: This plan does not have a foundation plan. The foundation will need to be designed by a local professional, who is familiar with your site and local requirements.
