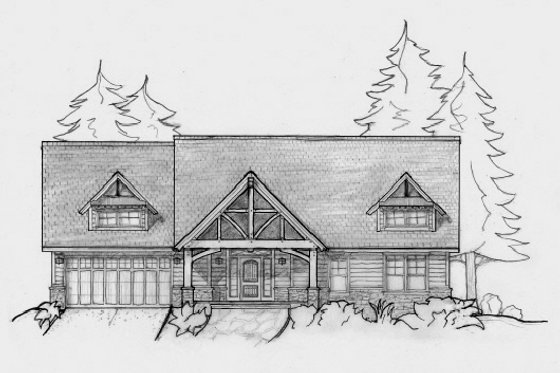

Plan #487-1

Key Specs


  • 2212 sq ft

  • 3 Bedrooms

  • 2 Bathrooms

  • 1 Floor

  • 3 Garage

Plan Description

Open Modern Interior Spaces Within Magnificent Exterior Northwest Rustic Splendor
Modify This Plan

This plan can be customized!

Let us know your desired changes and get a free quote.
Click the button or call us now at 1-800-913-2350.

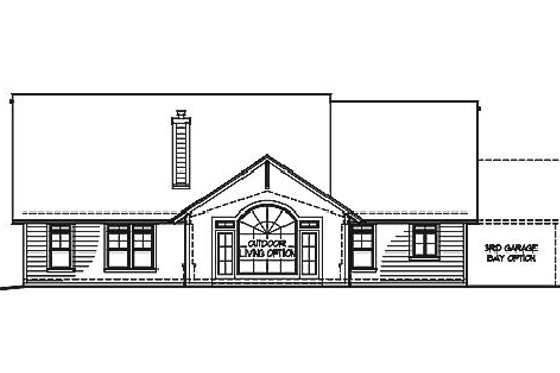

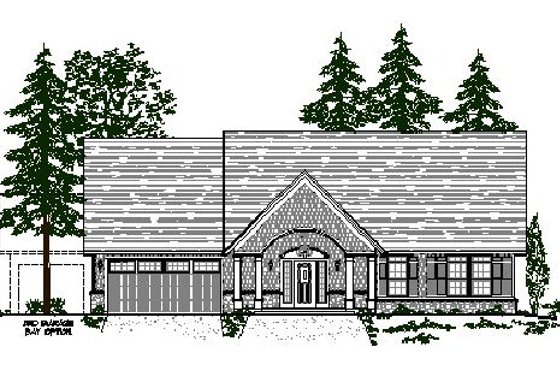

Floor Plans

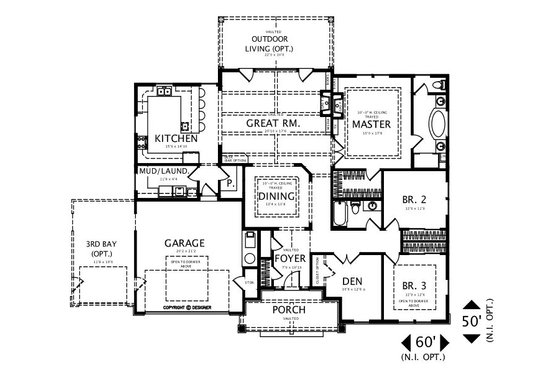

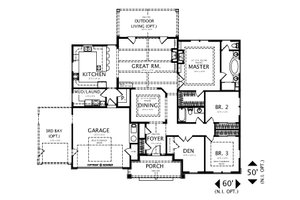

Floor Plan - Main Floor Plan
Craftsman Style House Plan - 3 Beds 2 Baths 2212 Sq/Ft Plan #487-1 Floor Plan - Main Floor Plan - Houseplans.com

Full Specs & Features

Basic Features

Bedrooms : 3
Garage Stalls : 3
Potential Bedrooms : 4
Stories : 1
Baths : 2

Dimension

Depth : 50'
Width : 60'
Height : 26'

Area

Garage Sq Ft : 486 sq ft
Main Floor Sq Ft : 2212 sq ft
Porch Sq Ft : 137 sq ft
Total Sq Ft : 2212 sq ft *
Patios Sq Ft : 220 sq ft
Storage Sq Ft : 22 sq ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling Ft : 9'
Ceiling Details : Vaulted ceilings at Porch, Foyer, Great Room and Outdoor Living Option; False box beams at Great Room; Light well dormers at Bedroom 3 and Garage; Trayed ceilings with crown molding to 10 feet high at Dining and Master Bedroom.
Garage Ceiling Ft : 10'

Roof

Roof Framing : Manufactured Wood Trusses
Roof Type : Metal or Comp. Slate Shingles
Secondary Pitch : 12:12
Roof Load : 40# Total
Primary Pitch : 8:12

Exterior Wall Framing

Exterior Wall Finish : Rough-sawn wavy edged beveled/board and batten cedar siding, with manufactured stone accents
Seismic Rating : DI, DII
Framing : 2"x6"
Insulation : R-21 Exterior Walls
Wind Rating : 110 mph (or less)

Bedroom Features

Main Floor Bedrooms
Walk In Closet
Main Floor Master Bedroom

Kitchen Features

Breakfast Nook
Walk In Pantry Cabinet Pantry
Peninsula Eating Bar

Additional Room Features

Storage Area
Master Sitting Area
Main Floor Laundry
Parlor
Wet Bar
Den Office Study Computer
Great Room Living Room
Mud Room

Garage Features

Tandem Garage
Front Entry Garage
Oversized Garage

Entryway

Friend S Entry

Lot Characteristics

Suited For Corner Lot
Suited For View Lot
Suited For Sloping Lot

Outdoor Spaces

Covered Rear Porch
Grill Deck Sundeck
Covered Front Porch

More

Universal Wheelchair Access
Wheelchair Adaptable
Economical To Build
Suited For Vacation Home

Code Compliance

Irc 2006

Structural Information Provided

Foundation Drawing
Structural Roof Framing
Structural Notes
Structural Calculations
Structural 1st Floor Framing

Energy Efficient Features

Energy Efficient Design

What's included in this plan set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing

Plan Options
PDF Set Best Value! $870.00 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set $870.00 For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set $1440.00 For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set $630.00 One printed set for bidding purposes only. Not a legal building set.
Foundation Options
Pier Post Beam $0.00 Ideal for lot conditions where the home needs to be off the ground. A pier foundation consists of wood posts or concrete piers connected by beams to support the home. Some lots may require drilling deep into bedrock to support the posts.
Slab $250.00 Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Right-Reading Reverse $180.00 Choose this option to reverse your plans and to have the text and dimensions readable. Click here for more information.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).

What's included?
Instant Download After Checkout

Subtotal $870.00

Best Price Guaranteed*

Or order by phone: 1-800-913-2350
