Plan #487-5

Key Specs


  • 3267 sq ft

  • 4 Bedrooms

  • 3 Bathrooms

  • 2 Floors

  • 2 Garage

Plan Description

Stunning Spacious English Tudor Styled Home with Contemporary and Old World Designer Touches Throughout

Modify This Plan

This plan can be customized!

Let us know your desired changes and get a free quote.
Click the button or call us now at 1-800-913-2350.

Floor Plans

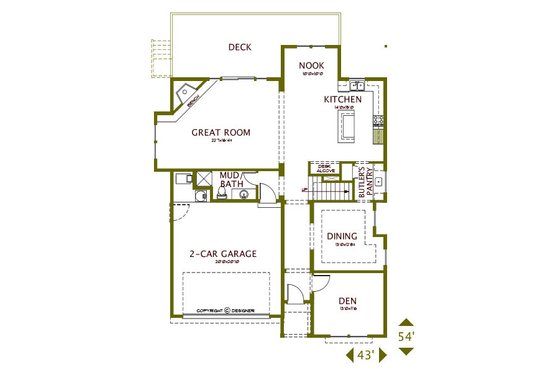

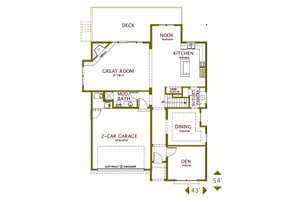

Floor Plan - Main Floor Plan
Saved! European Style House Plan - 4 Beds 3 Baths 3267 Sq/Ft Plan #487-5 Floor Plan - Main Floor Plan - Houseplans.com

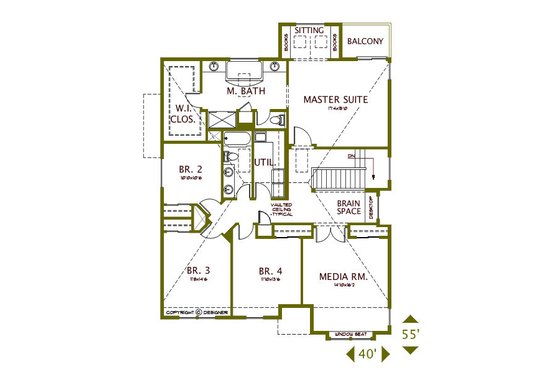

Floor Plan - Upper Floor Plan
Saved! European Style House Plan - 4 Beds 3 Baths 3267 Sq/Ft Plan #487-5 Floor Plan - Upper Floor Plan - Houseplans.com

Full Specs & Features

Basic Features

Bedrooms : 4
Potential Bedrooms : 6
Stories : 2
Garage Stalls : 2
Baths : 3

Dimension

Height : 31'
Depth : 55'
Width : 43'

Area

Total Sq Ft : 3267 sq ft *
Porch Sq Ft : 34 sq ft
Decks Sq Ft : 363 sq ft
Garage Sq Ft : 470 sq ft
Main Floor Sq Ft : 1429 sq ft
Upper Floor Sq Ft : 1838 sq ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Garage Ceiling Ft : 10'
Main Ceiling Ft : 9'
Upper Ceiling Ft : 8'
Ceiling Details : Upper Floor Ceiling Vaults from 8'-0" to 13'-4" Height

Roof

Roof Type : Architectural Comp
Roof Load : 45# Total
Roof Framing : Manufactured Trusses
Primary Pitch : 6:12
Secondary Pitch : 9:12

Exterior Wall Framing

Wind Rating : 110 mph
Insulation : R-21 at Exterior Walls
Framing : 2"x6"
Seismic Rating : DI
Exterior Wall Finish : Wood and Manufactured Stone Siding

Bedroom Features

Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Walk In Pantry Cabinet Pantry
Butler's Pantry
Kitchen Island
Breakfast Nook

Additional Room Features

Wet Bar
Den Office Study Computer
Master Sitting Area
Mud Room
Great Room Living Room
Hobby Rec Room Game Room
Bonus Play Flex Room
Media Room
Wine Cellar
Exercise Room
Upstairs Laundry
Library Room

Garage Features

Front Entry Garage
Garage Under

Entryway

Friend S Entry

Lot Characteristics

Suited For Narrow Lot
Suited For View Lot
Suited For Corner Lot
Suited For Sloping Lot

Outdoor Spaces

Grill Deck Sundeck
Loft Balcony
Covered Front Porch

More

Economical To Build

Code Compliance

Irc 2003

Structural Information Provided

Structural Notes
Structural 1st Floor Framing
Structural Calculations
Structural Roof Framing
Foundation Drawing
Structural 2nd Floor Framing

Energy Efficient Features

Energy Efficient Design

What's included in this plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing

Plan Options
PDF Set Best Value! $850.00 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set $850.00 For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set $1500.00 For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set $610.00 One printed set for bidding purposes only. Not a legal building set.
Foundation Options
Pier Post Beam $0.00 Ideal for lot conditions where the home needs to be off the ground. A pier foundation consists of wood posts or concrete piers connected by beams to support the home. Some lots may require drilling deep into bedrock to support the posts.
Additional Options
Right-Reading Reverse $180.00 Choose this option to reverse your plans and to have the text and dimensions readable. Click here for more information.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).

What's included?
Available for quick pdf download

Subtotal $850.00

Best Price Guaranteed*

Or order by phone: 1-800-913-2350

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-to-Build Report
Your recently viewed plans

Need help? Let our friendly experts help you find the perfect plan!
Contact us now for a free consultation.
Call: 1-800-913-2350
Email: sales@houseplans.com

Have a Question?

You can also give us a call at 1-800-913-2350 (6am - 6pm) M-F to ask us your question(s).

Thank you for your inquiry. We will try to respond to your question within 24 hours and often respond within minutes, even after hours.
