2267 sq ft

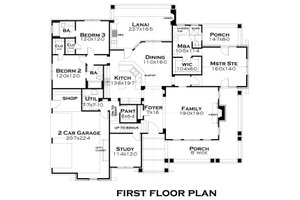

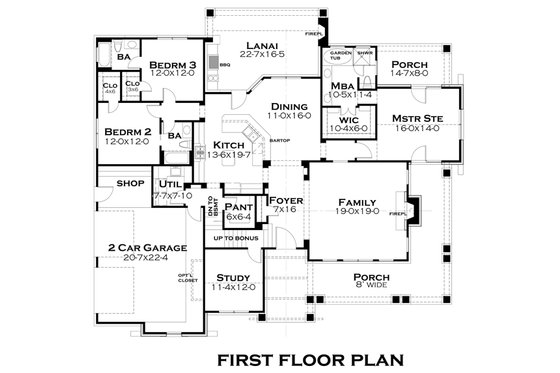

The master suite offers some flexibility depending on the owners' preference, view opportunities or privacy concerns, such as removing windows for bed wall placement. Some may even find a trendy/creative placement in front of the side window a desirable location.
The kitchen and dining areas were located at the rear for the family who finds themselves more oriented to barbecuing and porch sitting - including a back lanai fireplace. The arrangement of the family and kitchen areas provides the ability to enjoy multiple entertaining opportunities at once, for example, conversation around the dining/kitchen bar while the football game is enjoyed in the family room.
The master bath is bathed in natural light from high windows, and enjoys a large vanity with dual sinks and a large walk-in closet as well. The secondary bedrooms also have walk-in closets as well as direct bath access.
Utility areas are plentiful, including a walk-in pantry, utility room with sink and storage, access to a basement option, and a shop for the do-it-yourselfers.

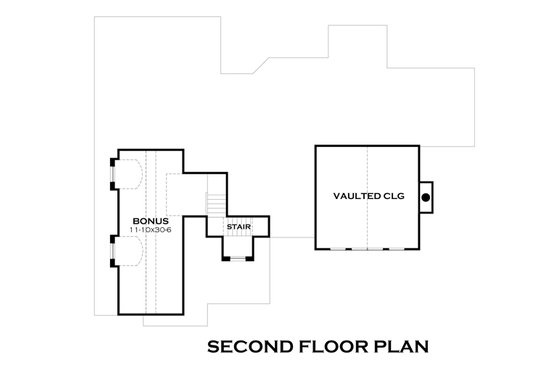

A bonus area over the garage makes a great place to create a media room environment for the hardcore theatre room buff. It could also accommodate additional bedrooms or a guest suite.
Customize any features!
Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.Get Free Quote
Full Specs & Features
Exterior Wall Framing
Additional Room Features
What's included in this plan set
- Floor Plans: A 1/4" = 1'-0" scale floor plan indicating frame walls and masonry with dimensions, notes, door and window sizes, room names and floor finishes, cabinet, shelving, fixture locations and notes, ceiling conditions, electrical/lighting fixtures and switches.
- Exterior Elevations: Front Elevation at 1/4" = 1'-0", side and rear elevations at 1/8" = 1'-0", plate heights, roof overhangs, material/surface notes, window heights, roof pitches, material hatching for clarity, floor to floor dimensions and any other detail we feel is necessary to explain the construction.
- Cabinets/Building Sections: Cabinet elevations at 3/8" = 1'-0", showing cabinets, appliance locations, plumbing fixtures, shelving, counter/backsplash surface, cabinet material and finish, niche details and any other special situation that cannot be understood from the plan view. Building Sections are included only when there is no other way to indicate the spatial characteristics of the home. This information is quite often indicated well enough on the elevations and plans.
- Foundation Plans: Fully dimensioned and noted indicating wall composition and thickness, construction detail references to our detail page, beam, pier and column locations and sizes, stair locations for basements, reinforcing steel sizes and step downs in monolithic slabs and ventilation grilles for crawlspaces.
- Framing Plans: A 1/8" = 1'-0" scale plan indicating rafter, ceiling and floor joists locations, sizes and spacing as well as lumber grade specified, additional bracing and blocking.
- Details: For each foundation type, 3/4" = 1'-0" scale details are included indicating material composition, size and critical dimensions for construction of the primary foundation.
Plan Set Price
Additional Construction Sets $50.00/each
Right-Reading Reverse $200.00
The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).
Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.
All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.
All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.
In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.
To find out what documents you should expect with your house plans, see what's included?
In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.
Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
