Plan #48-105

Key Specs


  • 2500 sq ft

  • 4 Bedrooms

  • 2.5 Bathrooms

  • 2 Floors

  • 2 Garage

Plan Description

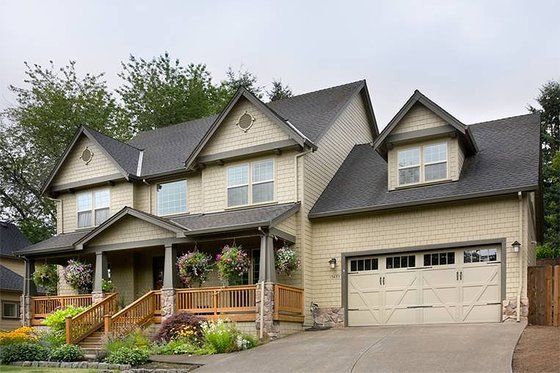

Symmetry is the order of the day in this Traditional two story floor plan . Cedar shingles, stone accents, and neighborly front porch further the attraction. The floor plan is well thought-out, with formal living and dining areas flanking the foyer, and casual living to the back. A convenient butler's pantry connects the dining room and the service hall to the kitchen. The flow is circular, allowing easy movement between spaces, with no dead-end rooms. Choose an optional pocket door to separate the living room and the family room. The informal nook features double doors to a rear patio and a built-in desk to help keep you organized. Upstairs rooms include a vaulted master suite and three family bedrooms, one of which may be used as a den. The master bath is worthy of note as it contains a huge walk-in closet, separate shower and spa tub and compartmented toilet. Bonus space over the garage can become a fifth bedroom, a game room or home office space in the future.
Modify This Plan

This plan can be customized!

Let us know your desired changes and get a free quote.
Click the button or call us now at 1-800-913-2350.

Floor Plans

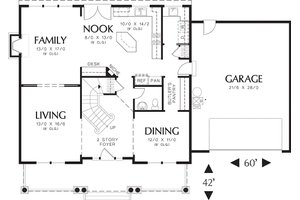

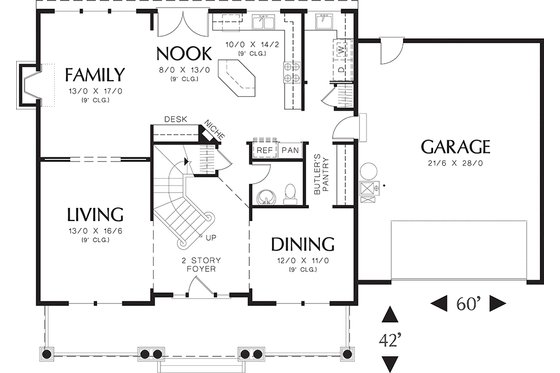

Floor Plan - Main Floor Plan
Saved! Traditional Style House Plan - 4 Beds 2.5 Baths 2500 Sq/Ft Plan #48-105 Floor Plan - Main Floor Plan - Houseplans.com

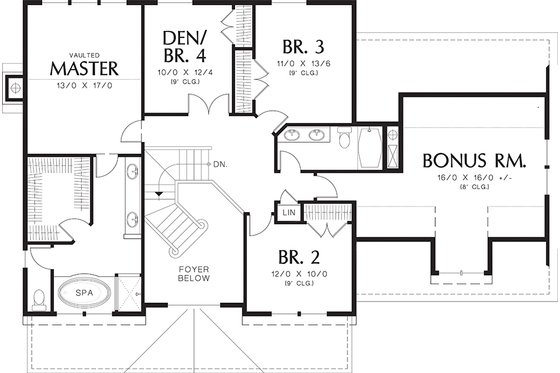

Floor Plan - Upper Floor Plan
Saved! Traditional Style House Plan - 4 Beds 2.5 Baths 2500 Sq/Ft Plan #48-105 Floor Plan - Upper Floor Plan - Houseplans.com

Full Specs & Features

Basic Features

Stories : 2
Bedrooms : 4
Potential Bedrooms : 0
Garage Stalls : 2
Baths : 2.5

Dimension

Height : 37'
Depth : 42'
Width : 60'

Area

Bonus Sq Ft : 371 sq ft
Main Floor Sq Ft : 1319 sq ft
Total Sq Ft : 2500 sq ft *
Upper Floor Sq Ft : 1181 sq ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling Ft : 9'

Roof

Secondary Pitch : 12:12
Primary Pitch : 10:12

Exterior Wall Framing

Exterior Wall Finish : cedar shingles
Framing : 2"x6"

Bedroom Features

Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island
Peninsula Eating Bar
Butler's Pantry

Additional Room Features

Unfinished Future Space
Den Office Study Computer
Family Room Keeping Room
Bonus Play Flex Room

Lot Characteristics

Suited For Corner Lot
Suited For Narrow Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch

What's included in this plan set

  • Exterior Elevations
    In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

  • Foundation Plan
    The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

  • Floor Plan(s)
    Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

  • Building Sections
    Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

  • Roof Plan
    Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

  • Notes and Details Page(s)
    Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your building department — these are usually done locally.
*See important information before purchasing

Pricing

Plan Options
5 Copy Set $850.00 5 printed plan sets mailed to you.
8 Copy Set $950.00 8 printed plan sets mailed to you.
PDF Set Best Value! $1210.00 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set $1955.00 For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set $715.00 One printed set for bidding purposes only. Not a legal building set.
Foundation Options
Crawlspace $0.00 Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab $125.00 Ideal for level lot, single layer concrete poured directly on grade.
Basement $275.00 Ideal for level lot, lower level of home partially or fully underground.
Additional Options
Additional Copies $40.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Right-Reading Reverse $100.00 Choose this option to reverse your plans and to have the text and dimensions readable. Click here for more information.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).
