Floor Plans

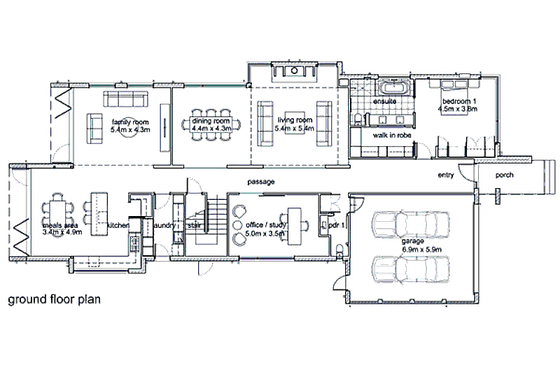

Main Floor Plan

Saved! Modern Style House Plan - 3 Beds 2.5 Baths 3839 Sq/Ft Plan #496-7 Main Floor Plan - Houseplans.com

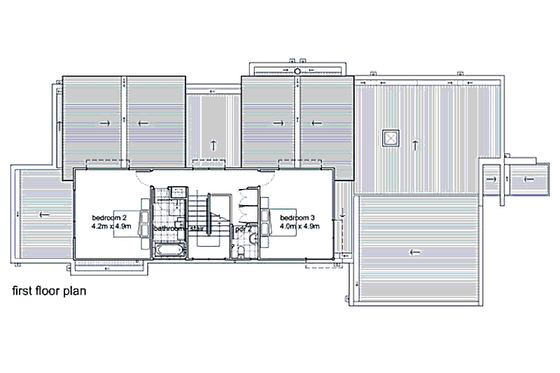

Upper Floor Plan

Saved! Modern Style House Plan - 3 Beds 2.5 Baths 3839 Sq/Ft Plan #496-7 Upper Floor Plan - Houseplans.com

Plan Description

The WF208 design can be utilized as a free standing single family residence, or combined with multiple WF208 units to create a multi-family residence. The flat roof design allows for greater design flexibility when combining multiple WF208 units. Groupings can function in a linear configuration on a flat site, or they can be organized to follow the natural topography of the site in small clusters, as shown in the WF208 rendering. THe placement of all bedrooms on the second floor allows for a large open kitchen, dining, and living area. Full width window walls on the first and second floor provide ample natural light. Generous second floor covered porches, complete with fireplace, help to connect the home to the outdoors. WF208 features a warm natural material palette and can incorporate any number of green technologies into the base design. The result is an extremely efficient modern design.

Specifications

Kitchen Features

Nook Breakfast Area Dining
Kitchen Island
Peninsula Eating Bar
Walk In Pantry Cabinet Pantry

Garage

Front Entry Garage

Outdoor Spaces

Covered Front Porch

Basic Features

Baths
2.5
Stories
2
Bedrooms
3
Potential Bedrooms
0
Garage Stalls
2

Exterior Wall Framing

Framing
Concrete block

Bedroom Features

Split Bedrooms
Main Floor Master Bed Bath
Upstairs Bedrooms Bath
Walk In Closet

Additional Rooms

Family Room Keeping Room
Main Floor Laundry
Storage Area
Den Office Study Computer
Great Room Living Room

Entryway

Friend S Entry

Lot Characteristics

Suited For Narrow Lot

Area

Total Sq Ft
3839 sq ft
Upper Floor Sq Ft
809 sq ft
Porch Sq Ft
168 sq ft
Main Floor Sq Ft
3030 sq ft

Dimension

Width
45'
Depth
99'
Height
23'

Pricing

Plan Set Price

5 Copy Set
$1600.00
PDF Set
$1600.00
Reproducible Set
$1600.00
CAD Set
$3600.00

Foundation Price

Slab
+$0.00

Additional Construction Sets $40.00/each

Mirror Reverse Sets $0.00/each

Right-Reading Reverse $0.00

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Plan Content

All plans are designed in metric measurements

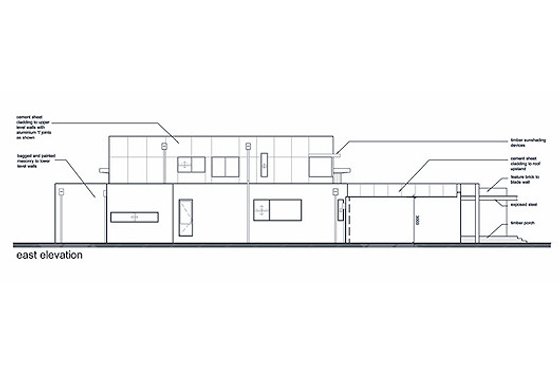

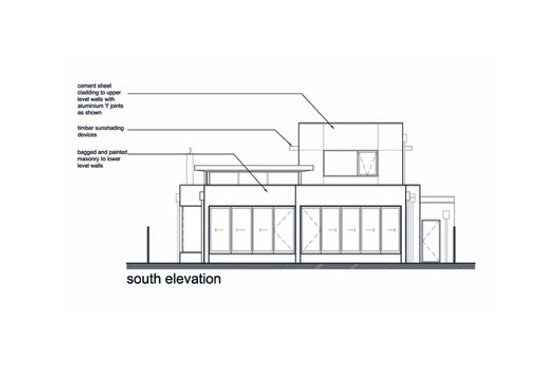

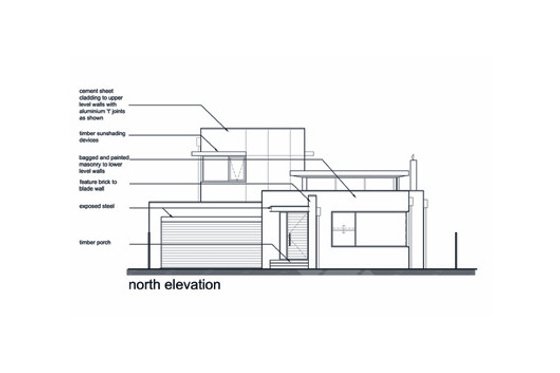

  • Exterior Elevations: Drawn to 1:50 metric scale. A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1:50 metric scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section(s): Drawn to 1:100 metric scale showing vertical cutaway view(s) of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Typical Wall Details: Drawn to 1:10 metric scale.
  • Window Details: Drawn to 1:50 metric scale. This page details window design and details
  • Note: This plan does not have a foundation plan. The foundation will need to be designed by a local professional, who is familiar with your site and local requirements.
