Plan #531-3

Key Specs


  • 5 Bedrooms

  • 8.5 Bathrooms

  • 3 Floors

  • 3 Garage

  • 6700 sq ft

Plan Description

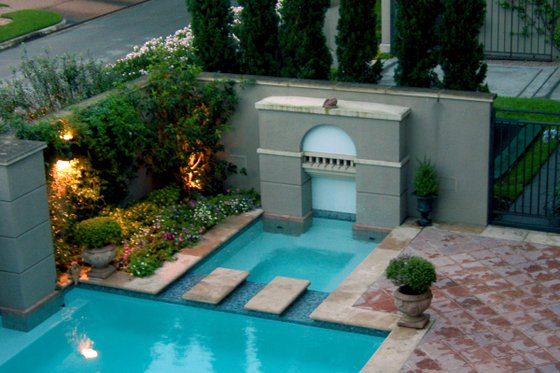

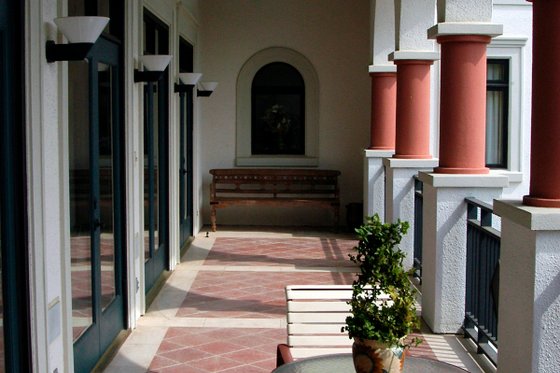

A luxury dream home! Encompassing nearly 7000 square feet of conditioned space, the program includes five bedrooms, his and her offices, 7-1/2 baths, a second floor family room, a children’s game room, and approximately 2000 square feet of exterior program which includes a ground floor veranda, and second floor loggia and a private third floor terrace. All major interior and exterior spaces focus on the private courtyard and pool. While maintaining a contemporary posture, the design’s formal inspiration originates in both the country villas of Tuscany and the urban palazzos of Florence.

Floor Plans

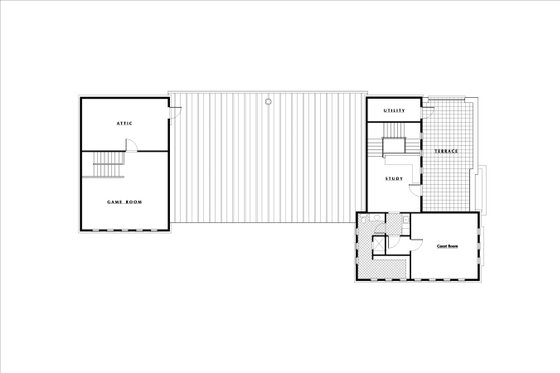

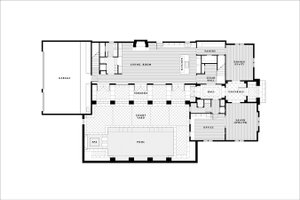

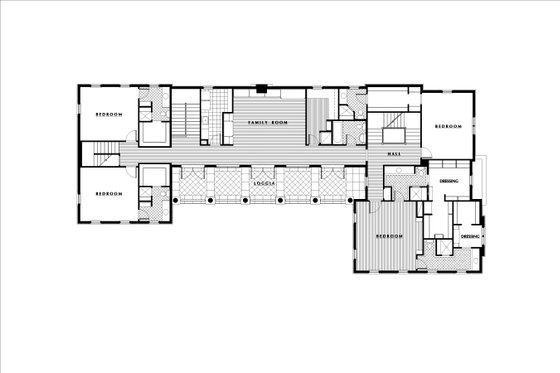

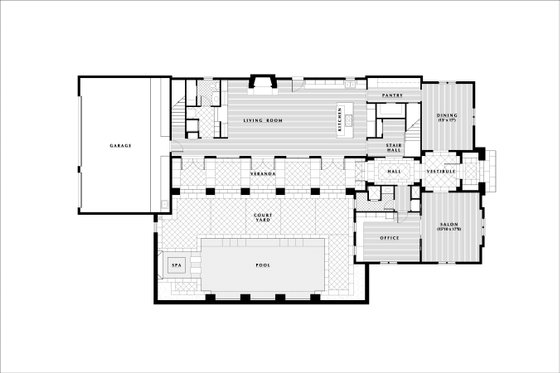

Main Floor Plan Upper Floor Plan Other Floor Plan

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Potential Bedrooms : 1
Garage Stalls : 3
Baths : 8.5
Stories : 3
Bedrooms : 5

Dimension

Depth : 105'
Width : 49'
Height : 37'

Area

Upper Floor Sq Ft : 3300 sq ft
Patios Sq Ft : 700 sq ft
Bonus Sq Ft : 950 sq ft
Garage Sq Ft : 865 sq ft
Total Sq Ft : 6700 sq ft
Lower Floor Sq Ft : 2450 sq ft
Porch Sq Ft : 1230 sq ft

Ceiling

Upper Ceiling Ft : 10'
Garage Ceiling Ft : 11'
Ceiling Details : Groin-vaulted entry and coffered ceilings throughout
Bonus Ceiling Ft : 10'
Main Ceiling Ft : 10'

Roof

Primary Pitch : 3:12
Roof Type : Standing seam metal

Exterior Wall Framing

Framing : 2x6
Exterior Wall Finish : Stucco

Bedroom Features

Teen Suite Jack Jill Bath
Guest Suite

Kitchen Features

Butler's Pantry
Walk In Pantry Cabinet Pantry
Kitchen Island
Breakfast Nook

Additional Room Features

Den Office Study Computer
Great Room Living Room
Bonus Play Flex Room
Parlor
Library Room
Upstairs Laundry
Exercise Room

Garage Features

Oversized Garage
Rear Garage

Lot Characteristics

Suited For Corner Lot
Suited For Narrow Lot

Outdoor Spaces

Grill Deck Sundeck
Loft Balcony
Courtyard

More

Unusual Shape

What's included in this plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

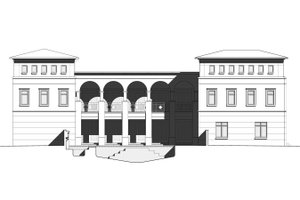

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.

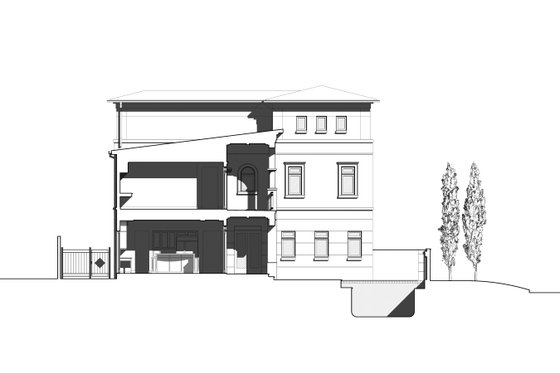

  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Pricing

Plan Set Price

5 Copy Set
$10000.00
CAD Set
$10000.00
PDF Set
$10000.00

Foundation Price

Slab
+$0.00

Additional Construction Sets $100.00/each

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Meet the Designer - RSDC Architecture

null - Houseplans.com
"Architecture should be more than fashion. I'd rather be good than interesting."

RSDC Architecture is dedicated to providing thoughtful and contemporary residential solutions to today's complex design requirements based on the timeless architectural principles of order, eurhythmy, proportion, appropriateness, and economy. Each design is a unique solution that reflects these intentions through thoughtful planning, suitable materials, and a careful attention to detail.

Louis P. DeLaura received his B.A. in Art History from Columbia University and his Masters of Architecture from Rice University, where he also taught for 15 years. He has been the lead designer on several award-winning commercial, residential, and institutional projects. He founded RSDC Architecture in 1994 with a desire to focus on intelligent and responsible residential design. Louis is registered to practice architecture in Virginia and Texas and is a member of the National Council of Architectural Registration Board (NCARB).

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
