Plan #497-62

Key Specs


  • 972 sq ft

  • 1 Bedroom

  • 1 Bathroom

  • 1 Floor

  • No Garage

Plan Description

This cottage is a modest little home with loft sleeping quarters, a large bathroom with a two person walk in shower and a common living space for cooking, dining and lounging. Although this is a small home under 1000 square feet it does seem much more spacious due to its high cathedral ceilings and open loft above the entry level.

There is something different about this cottage that gives it contemporary appeal while maintaining classic charm. Its classic features such as a small footprint, traditional roof line and compact details like exterior window shades and lattice are in harmony with the more modern finishes such as fiber cement panels and standing seam metal roofing. The entry has a bench for taking off or putting on shoes and also plenty of storage for coats, dog leashes, umbrellas, shovels, brooms and cleaning supplies. Having all of this utility space right near the entry helps keeps the rest of the home clean and clutter free. The large common room opens up to the loft above or out to the deck through the large folding doors. This cottage is an ideal home for small or rural lots and can comfortably accommodate 1-2 people.

The loft space is a large open area of floor space that can serve many functions depending on your lifestyle. This room will most likely serve multiple functions which can include sleeping quarters, office space, a reading room, a play room or studio space just to name a few options. Its separation from the rest of the living spaces on the entry level combined with its large windows make the loft a bright and comfortable escape.

Floor Plans

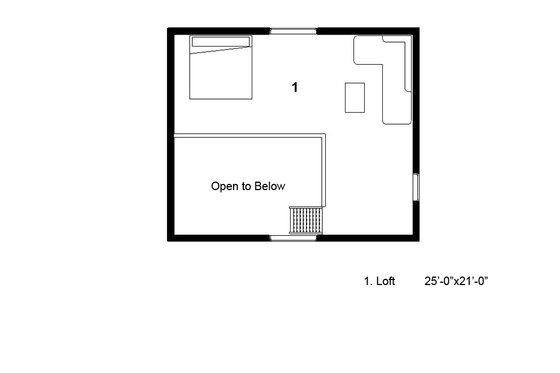

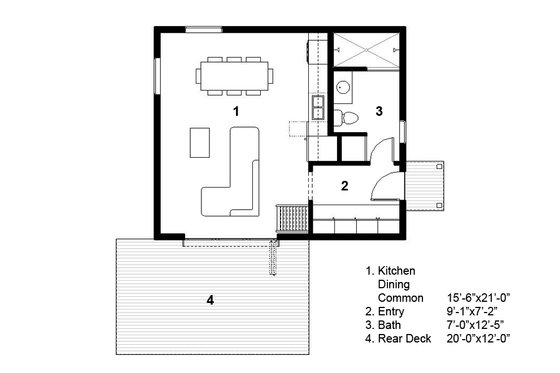

Main Floor Plan Other Floor Plan

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Garage Stalls : 0
Baths : 1
Stories : 1
Bedrooms : 1

Dimension

Depth : 22'
Height : 24'
Width : 26'

Area

Main Floor Sq Ft : 572 sq ft
Decks Sq Ft : 264 sq ft
Total Sq Ft : 972 sq ft
Upper Floor Sq Ft : 400 sq ft

Ceiling

Ceiling Details : Loft Ceiling. 4' knee walls that vault up to 12'
Upper Ceiling Ft : 12'
Main Ceiling Ft : 8'

Roof

Roof Framing : Stick
Roof Type : Gable
Primary Pitch : 8:12

Exterior Wall Framing

Exterior Wall Finish : Fiber Cement Panel Siding
Framing : 2x6

Kitchen Features

Breakfast Nook

Energy Efficient Features

Energy Efficient Design

What's included in this plan set

House plans created by Free Green give our customers design options that meet or exceed existing energy standards, while giving options in the realm of cost, style, and environmental commitment. As an example, all Free Green homes are designed to perform 30% to 50% better than prescriptive building code energy performance. The level of home performance depends on the products that you choose.

Each Free Green house plan includes:

  • LEED for Homes Rating System: Guidelines to meet LEED for Homes certification levels of: Certified, Silver, Gold, and Platinum. LEED for Homes is a national, voluntary certification system, developed by national experts and experienced builders, that promotes the design and construction of high-performance green homes and encourages the adoption of sustainable practices by the homebuilding industry. The LEED for Homes Rating System is part of the suite of nationally recognized LEED Green Building Rating Systems administered by USGBC. Like all LEED Rating Systems, it is the market's leadership system, targeting the top 25% of home building practices in terms of environmental responsibility. LEED provides industry resources and tools on how to "green" any new home. With LEED, homebuilders can differentiate their structures as meeting the highest performance measures, and homebuyers can readily identify high quality green homes. LEED provides national consistency in defining the features of a green home, enables builders anywhere in the country to obtain a green rating on their homes, and assures homebuyers of the quality of their purchases, all based on a recognized national brand. Learn more about the LEED® Rating System here.
  • Window shading details: External window shading devices are an effective method for reducing heat gains through windows during Summer. In fact, external shading devices can reduce heat gains by up to 80% if sized and built properly. With this in mind, Free Green has created this page to assist home builders in constructing effective window shading devices. The information we provide includes a zoning map of the United States, zoning charts for proper sizing of shading devices and a variety of shading device styles and materials to suite different tastes and different home designs.
  • General Notes: Typically one sheet of general notes pertinent to the construction of the home
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Wall sections and other construction details: Detailed drawings showing wall connections, from foundation to the roof. wall connections to foundation, window installation, siding installation, stair details, and more.
  • Framing Plans: Drawn to 1/4" scale. The framing layout is intended to be a suggested layout only. Design loads & weather conditions vary by region. As a result the size, spacing & layout of all structural elements in this home design must be approved by a structural engineer and code official based on your specific site location prior to construction.
  • Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
