Plan #449-3

Key Specs

  • 5900 sq ft

  • 4 Bedrooms

  • 5.5 Bathrooms

  • 2 Floors

  • 3 Garage

Plan Description

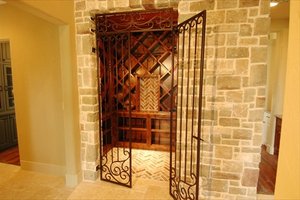

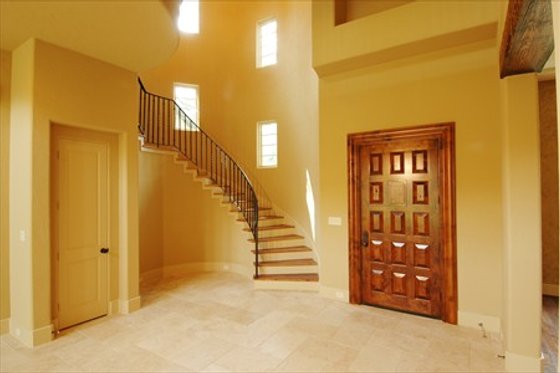

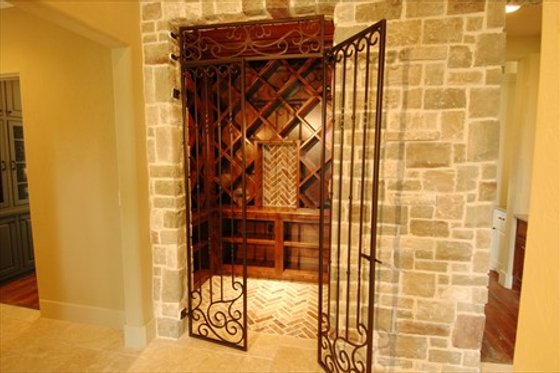

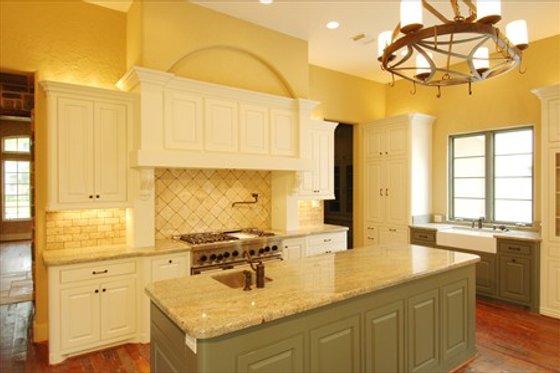

This 5900 square feet English Manor inspired home features all the luxuries - expansive first floor master suite, grand stair tower in foyer, wine room, gourmet kitchen, media room and more. A second floor bonus area over the front garage can be built out as quarters with their own private entry.
Modify This Plan

This plan can be customized!

Let us know your desired changes and get a free quote.
Click the button or call us now at 1-800-913-2350.

Floor Plans

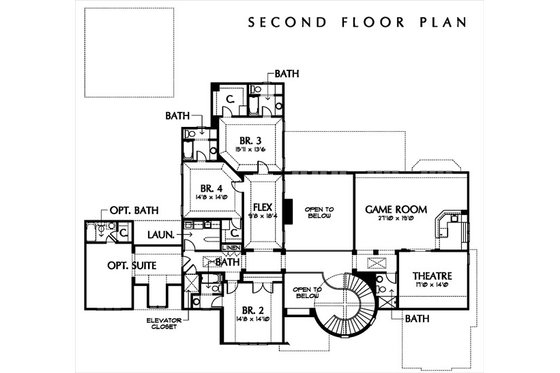

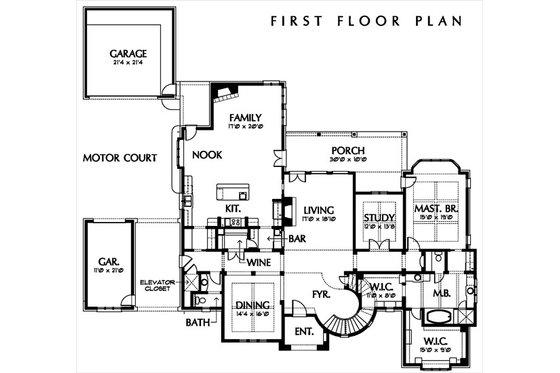

Floor Plan - Main Floor Plan Floor Plan - Upper Floor Plan

Full Specs & Features

Basic Features

Baths : 5.5
Stories : 2
Garage Stalls : 3
Potential Bedrooms : 5
Bedrooms : 4


Depth : 90'
Width : 98'
Height : 34'


Porch Sq Ft : 366 sq ft
Garage Sq Ft : 748 sq ft
Main Floor Sq Ft : 3354 sq ft
Total Sq Ft : 5900 sq ft *
Bonus Sq Ft : 468 sq ft
Upper Floor Sq Ft : 2546 sq ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Upper Ceiling Ft : 10'
Bonus Ceiling Ft : 10'
Ceiling Details : Two-story Foyer and Living Room, coffered Master Bedroom and Study
Main Ceiling Ft : 12'
Garage Ceiling Ft : 10'


Primary Pitch : 10:12
Secondary Pitch : 8:12
Roof Type : Asphalt Shingle

Exterior Wall Framing

Exterior Wall Finish : Stucco / Cultured stone
Framing : 2"x4"

Bedroom Features

Upstairs Bedrooms
Walk In Closet
Guest Suite
Main Floor Bedrooms
In Law Suite
Split Bedrooms
Main Floor Master Bedroom

Kitchen Features

Breakfast Nook
Walk In Pantry Cabinet Pantry
Peninsula Eating Bar
Kitchenette Wet Bar
Butler's Pantry
Kitchen Island

Additional Room Features

Upstairs Laundry
Bonus Play Flex Room
Den Office Study Computer
Media Room
Master Sitting Area
Storage Area
Unfinished Future Space
Wet Bar
Wine Cellar
Family Room Keeping Room
Hobby Rec Room Game Room
Great Room Living Room

Garage Features

Split Garage
Detached Garage
Rear Garage
Carport Porte Cochere


Friend S Entry

Lot Characteristics

Suited For View Lot
Suited For Corner Lot

Outdoor Spaces

Loft Balcony
Covered Rear Porch


Wheelchair Adaptable
Suited For Vacation Home

Code Compliance

Irc 2000

Structural Information Provided

Foundation Drawing

What's included in this plan set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing


Plan Options
PDF Set Best Value! $1020.00 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation Options
Slab $0.00 Ideal for level lot, single layer concrete poured directly on grade.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.
