Plan #909-6

Key Specs


  • 1441 sq ft

  • 2 Bedrooms

  • 2 Bathrooms

  • 1 Floor

  • No Garage

Plan Description

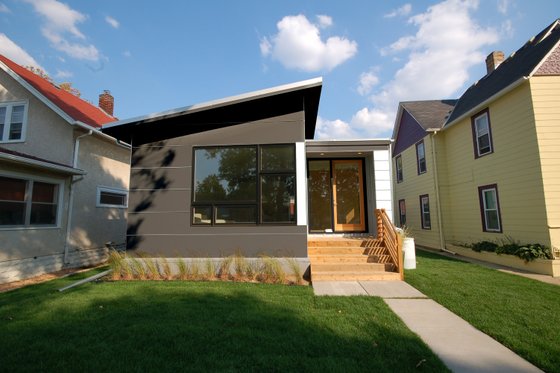

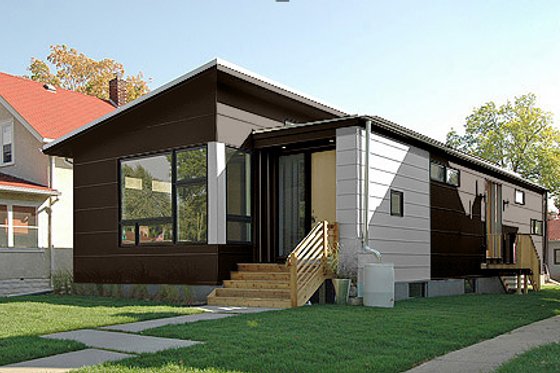

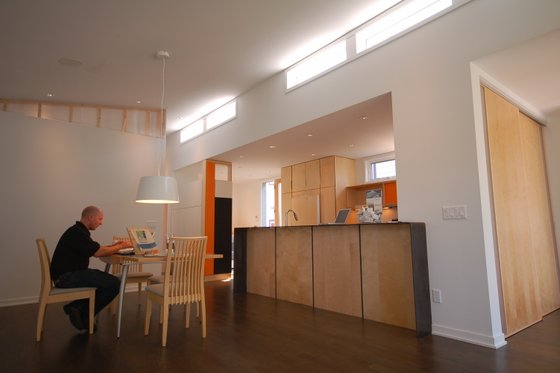

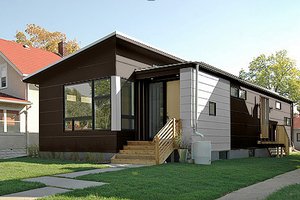

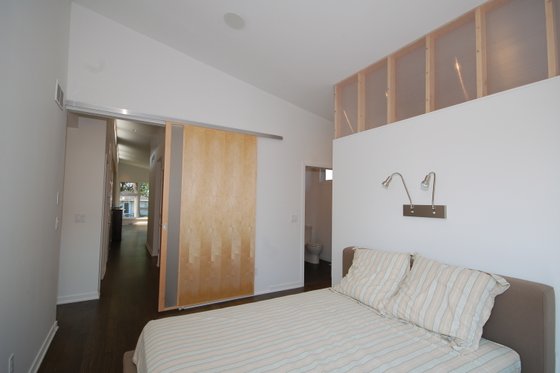

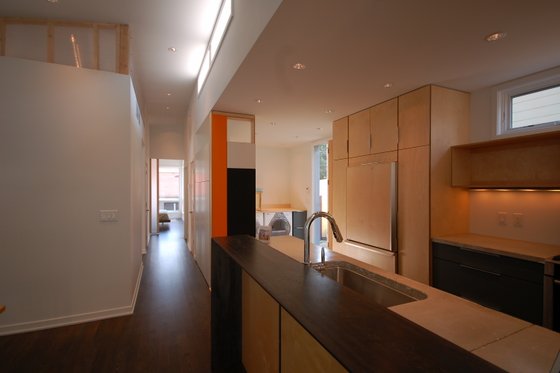

This one-story, two bedroom home was originally designed for a walkout lot, so it included a plan for a finishes basement that has 2 additional bedrooms, a full bath and a large family room. The vaulted ceilings throughout the main body of the house make it feel larger than its compact footprint. Even though small, the home still features a generous mud room off the kitchen and a main level laundry which can also be built as an office/crib room off of the master bedroom when the laundry is located in the mud room. A row of transom lights at the high point of the roof bring in daylight that filters through to the bedroom via a translucent plastic transom at the tall side of the bedroom walls.

Floor Plans

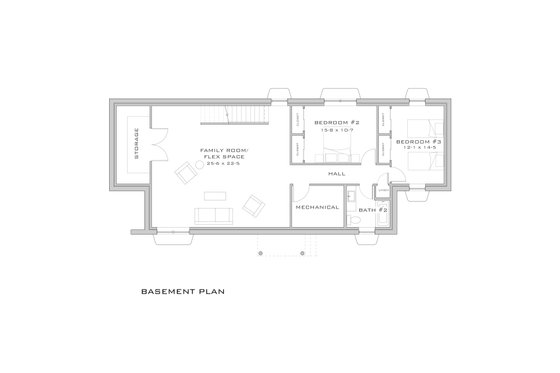

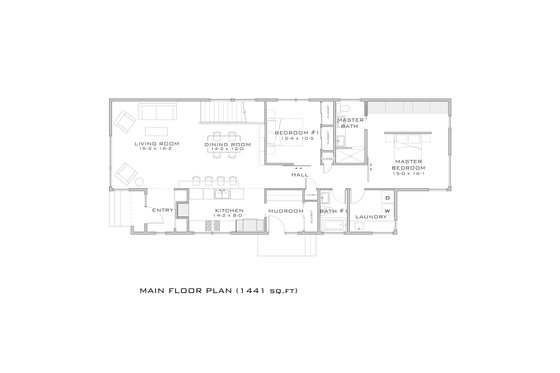

Main Floor Plan Lower Floor Plan

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Stories : 1
Garage Stalls : 0
Bedrooms : 2
Baths : 2

Dimension

Width : 25'
Height : 15'
Depth : 63'

Area

Total Sq Ft : 1441 sq ft
Basement Sq Ft : 1441 sq ft
Main Floor Sq Ft : 1441 sq ft

Ceiling

Main Ceiling Ft : 9'
Bonus Ceiling Ft : 11' 6"
Lower Ceiling Ft : 8'

Roof

Roof Framing : roof trusses
Roof Type : shed
Secondary Pitch : .25:12
Primary Pitch : 2:12
Roof Load : engineered for location

Exterior Wall Framing

Framing : 2x6 wood
Exterior Wall Finish : fiber-cement and metal
Insulation : fiberglass batt or spray foam

Bedroom Features

Walk In Closet
Main Floor Master Bedroom

Kitchen Features

Peninsula Eating Bar

Additional Room Features

Main Floor Laundry
Mud Room
Hobby Rec Room Game Room
Storage Area

Garage Features

Detached Garage

Lot Characteristics

Suited For Narrow Lot
Suited For Corner Lot
Suited For View Lot
Suited For Sloping Lot

What's included in this plan set

  • ¼” scale Foundation plans.
  • ¼” scale Exterior elevations
  • ¼” scale floor plans
  • ¼” scale framing plans
  • ¼” scale electrical/reflected ceiling plans
  • ¼” scale building sections
  • 1 ½” scale wall section details
  • 1 ½” scale siding details
  • ½” scale interior elevations of all rooms with cabinetry, built-in features or plumbing or electrical fixtures that require an image to locate.

Pricing

Plan Set Price

PDF Set
$1550.00
Reproducible Set
$1700.00
5 Copy Set
$1850.00
8 Copy Set
$1950.00
CAD Set
$2550.00
PDF Study Set
$1150.00
Single Set
$1300.00

Foundation Price

Basement
+$0.00
Crawlspace
+$500.00

Additional Construction Sets $75.00/each

The Single Set and PDF Study Set are typically stamped "Not for Construction" and are to be used for studying / obtaining bids only. We do offer a 90% credit when you upgrade from a Single Set to a 5-Copy set (or greater).

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Meet the Designer - Hive Modular

null - Houseplans.com
“We make modern design attainable and sustainability practical.”

Honest materials and simple expressions are brought together with a client’s vision to create a home and a place that transcends the component parts and becomes something more, without spending more. Simple choices, well considered, produce an architecture suited to its place.

The designs in our collection range from very small to large homes, but all make efficient and clever use of space in order to maximize function and to live bigger than their actual size. By including both grand and intimate spaces and using a variety of warm materials inside and out, these designs create a liveable modernism that is appropriate to a variety of settings.
Hive Modular is three partners with over 25 years of residential architecture experience to ensure that your project is of the highest quality in both construction and aesthetics. Marc Asmus and Bryan Meyer have professional degrees in architecture from the University of Minnesota and Paul Stankey has a Master of Architecture degree from Montana State University. During their careers, Hive partners have been recognized with numerous AIA awards and have been featured in many national publications, books and magazines. Hive has also been recognized as a leader in the field of architecturally designed prefab housing and has completed prefab projects throughout the U.S. and Canada.

Hive’s work has been published in Metropolitan Home, Renovation Style, Progressive Architecture, Midwest Home and Design, and Architecture Minnesota.

Bryan Meyer’s self-built cabin was featured in the book "Cabin" by Dale Mulfinger and Susan E. Davis.

Paul Stankey’s self-built shipping container based cabin was featured in the following publications:
Container Atlas
Slawik + Bergmann + Buchmeier + Tinney, 2010
Architecture Minnesota
"Cargo Cabin", November 2009
Mpls St. Paul Magazine
"Cabin Fever: Boxed Set", July 2008
Metro Magazine
"Not For Sale By Owner", May 2008
ReadyMade
"The Ship Captains", May 2008
Container Architecture
Jure Kotnik, 2008
Architecture Minnesota
"Rural Rapport", March/April 2006

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
