Plan #454-14

Key Specs


  • 5892 sq ft

  • 4 Bedrooms

  • 4.5 Bathrooms

  • 2 Floors

  • 2 Garage

Plan Description

This romantic, nature-inspired, Craftsman-Modern getaway home evokes images of relaxing country vacations and joyful family reunions. Architect Tina Govan and Not So Big House author/architect Sarah Susanka collaborated on the design. The house can be built with main and upper levels only — the upper level converted to house extra bedrooms. The original commission was for a lakeside site. Primary goals were to capture water views, embody the sense of peace and serenity that derives from a rural setting, and make the home work as well for just a few people as for a large extended family. In essence, says, Sarah: "It needed to function as two houses in one." Sarah explains: "A series of connected buildings, with wide eaves, generous porch and breezeway, and many outdoor spaces, offers the opportunity to move effortlessly from inside to out. A series of movable screens allows the house to be completely opened to the outdoors when the weather is appropriate, as well as to open the center breezeway to the terrace and view beyond." The breezeway and roof deck are key features. With folding glass doors on either side, the breezeway walls disappear, seamlessly connecting both sides of the site and framing vistas through the house. From the front patio, you can walk straight out to the roof deck with expansive views on all sides. This outdoor living room-with-fireplace is embedded in the body of the house and is accessible from the major rooms.

View more Craftsman style house plans

Floor Plans

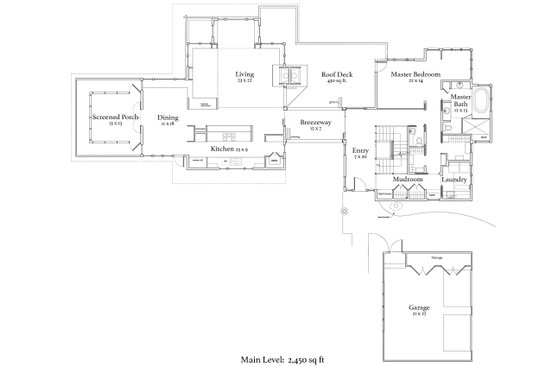

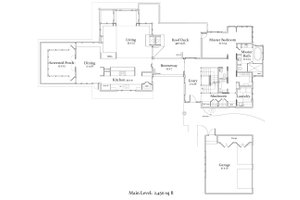

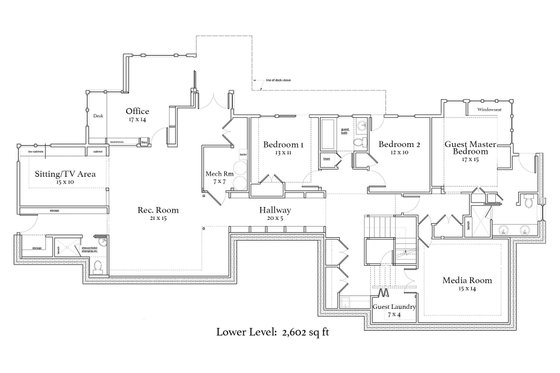

Main Floor Plan Upper Floor Plan Lower Floor Plan

Customize any features!

Our in-house design team can help you make all the modifications you have in mind in order to make this your dream home.

Get Free Quote

Full Specs & Features

Basic Features

Stories : 2
Garage Stalls : 2
Bedrooms : 4
Baths : 4.5

Dimension

Width : 99' 2"
Height : 23'
Depth : 77' 2"

Area

Decks Sq Ft : 430 sq ft
Upper Floor Sq Ft : 840 sq ft
Total Sq Ft : 5892 sq ft
Main Floor Sq Ft : 2450 sq ft
Garage Sq Ft : 595 sq ft
Lower Floor Sq Ft : 2602 sq ft

Ceiling

Main Ceiling Ft : 9'
Upper Ceiling Ft : 9'
Lower Ceiling Ft : 8' 6"

Roof

Roof Framing : Stick
Roof Type : Gable
Primary Pitch : 8:12

Exterior Wall Framing

Framing : 2x6
Exterior Wall Finish : T&G Siding, Stone, Shake Siding

Bedroom Features

Main Floor Bedrooms
Walk In Closet
2 Master Suites
Split Bedrooms

Kitchen Features

Walk In Pantry Cabinet Pantry
Breakfast Nook

Additional Room Features

Main Floor Laundry
Mud Room
Hobby Rec Room Game Room
Master Sitting Area
Storage Area
Great Room Living Room
Den Office Study Computer

Garage Features

Side Entry Garage
Detached Garage

Lot Characteristics

Suited For Sloping Lot

Outdoor Spaces

Breezeway
Grill Deck Sundeck
Screened Porch Sunroom

More

Suited For Vacation Home

What's included in this plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

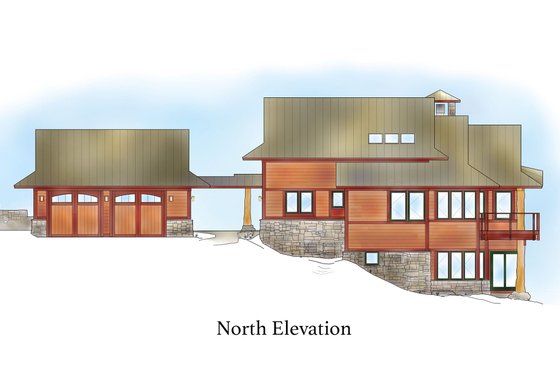

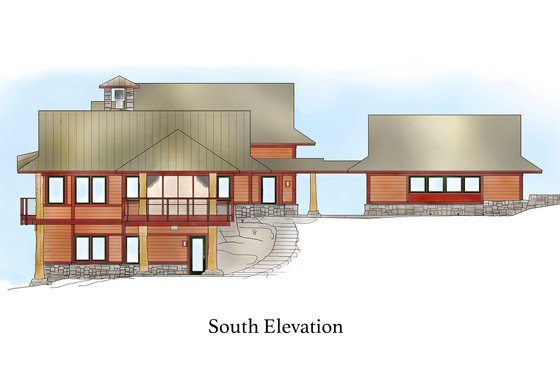

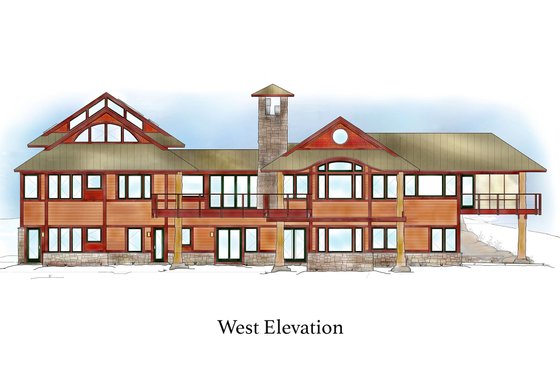

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Pricing

Plan Set Price

5 Copy Set
$8000.00
CAD Set
$8000.00
Reproducible Set
$8000.00

Foundation Price

Daylight Basement
+$0.00

Additional Construction Sets $100.00/each

Additional copies can be ordered at the time of purchase and within 90 days after your original purchase date.

Meet the Designer - Sarah Susanka

null - Houseplans.com
“'Not So Big®' puts the emphasis on quality rather than quantity and is designed to fit the way we really live today. It's a message that's being embraced now more than ever, and it's wonderful to see so many people come to the realization that a house doesn't have to be bigger to be better.”

Award-winning architect and best selling author Sarah Susanka is the J K Rowling of home design. She has brought her practical, less-can-be-more brand of magic to the world of architectural home plans. A member of the College of Fellows of the American Institute of Architects and a Senior Fellow of the Design Futures Council, Sarah was born in Kent, England and lives in North Carolina. Hailed as an innovator by Fast Company, Newsweek, and US News and World Report, she received the Anne Morrow Lindbergh Award from the Lindbergh Foundation for outstanding individual achievement, and Builder Magazine honored Sarah as one of their 30 Top Innovators who have changed the face of residential construction.

Sarah Susanka's influential books include The Not So Big House (Taunton, 1999), Home By Design (Taunton, 2004), The Not So Big Life: Making Room for What Really Matters (Random House, 2007), and Not So Big Remodeling (Taunton, 2009). She has lectured widely and appeared on numerous television and radio programs including Oprah, Charlie Rose, and Diane Rehm. She is showing a new generation of homeowners, builders, and developers how to "build better not bigger."

Important Information

All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process.

All house plans from Houseplans are designed to conform to the local codes when and where the original house was constructed.

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see what's included?

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be, but not limited to, earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
