Plan 23-2015

Photographs may show modified designs.

Key Specs


Plan Sq Ft

4200
sq ft

Plan Bedrooms

4
Beds

Plan Bathrooms

3.5
Baths

Plan Floors

2
Floors

Plan Garages

2
Garages

Select Plan Set Options What's included?
$135.00
Additional Construction Sets$45.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

$90.00
$35.10
$180.00
Subtotal
NOW $1827.00
You save $203.00
(10% savings)
Sale ends soon!
Best Price Guaranteed

Or order by phone: 1-800-913-2350
Cost to Build Reports Only $4.99 with Code CTBSUMMER (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Questions? Get Personalized Help



Hours:  Mon‑Fri, 9 am‑8:30 pm (EST)

See Terms & Conditions and Privacy Policy.

Thanks for your question.

We will be in touch shortly.

Plan 23-2015

Key Specs


Plan Sq Ft

4200
sq ft

Plan Bedrooms

4
Beds

Plan Bathrooms

3.5
Baths

Plan Floors

2
Floors

Plan Garages

2
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

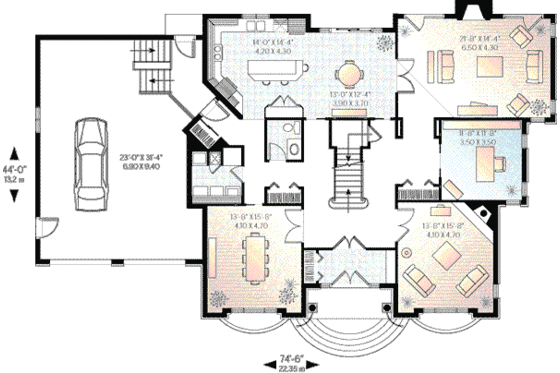

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 3.5
Stories: 2
Garages: 2

Dimension

Depth : 46'
Height : 33'
Width : 74' 6"

Area

Total : 4200 sq/ft
Basement Living: 1988 sq/ft
First Floor: 2207 sq/ft
Garage: 764 sq/ft
Second Floor: 1993 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'
Upper Ceiling Ft : 8'

Roof

Primary Pitch : 6:12
Roof Framing : Truss
Secondary Pitch : 10:12

Exterior Wall Framing

Exterior Wall Finish : Stone
Framing : 2"x6"

Bedroom Features

Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Loft
Storage Area

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Balcony
Covered Front Porch

More

Jack & Jill Bath

Rooms

3rd BR Closet:

20 sq/ft width 2' x depth 10'

Basement Foundation:

2229 sq/ft width 50' 8" x depth 44'

Bathroom 2:

71 sq/ft width 11' 8" x depth 6' 2"

Bathroom 3:

53 sq/ft width 5' 4" x depth 10'

Bedroom 2:

226 sq/ft width 12' 4" x depth 18' 4"

Bedroom 2 Closet:

46 sq/ft width 5' 4" x depth 8' 8"

Bedroom 3:

168 sq/ft width 11' 4" x depth 14' 10"

Bedroom 3 Closet:

46 sq/ft width 5' 4" x depth 8' 8"

Bedroom 4:

153 sq/ft width 11' 8" x depth 13' 2"

Bedroom 4 Closet:

31 sq/ft width 6' x depth 5' 4"

Breakfast Room:

160 sq/ft width 12' 8" x depth 12' 8"

Dining Room:

209 sq/ft width 13' 6" x depth 15' 6"

Foyer:

24 sq/ft width 5' x depth 4' 10"

Game Room:

134 sq/ft width 11' 6" x depth 11' 8"

Garage:

689 sq/ft width 22' x depth 31' 4"

Gathering Room:

310 sq/ft width 21' 8" x depth 14' 4"

Hall:

71 sq/ft width 13' x depth 5' 6"

Hall Closet:

10 sq/ft width 2' x depth 5'

Kitchen:

200 sq/ft width 14' 4" x depth 14'

Living Room:

216 sq/ft width 13' 10" x depth 15' 8"

Master Bathroom:

125 sq/ft width 12' 2" x depth 10' 4"

Master Bedroom:

396 sq/ft width 18' x depth 22'

Porch - Front:

48 sq/ft width 4' x depth 12'

Porch - Rear:

288 sq/ft width 36' x depth 8'

Powder Room:

25 sq/ft width 4' 8" x depth 5' 6"

Study:

134 sq/ft width 11' 6" x depth 11' 8"

Walk-In Closet:

80 sq/ft width 7' 10" x depth 10' 4"

Wash Room:

52 sq/ft width 7' x depth 7' 6"

What's included in this plan set


See a sample plan set

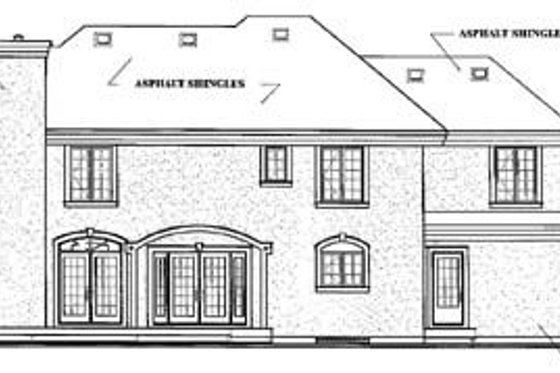

    Exterior Elevations (front, rear, left & right sides) typically include:
