3476 sq ft

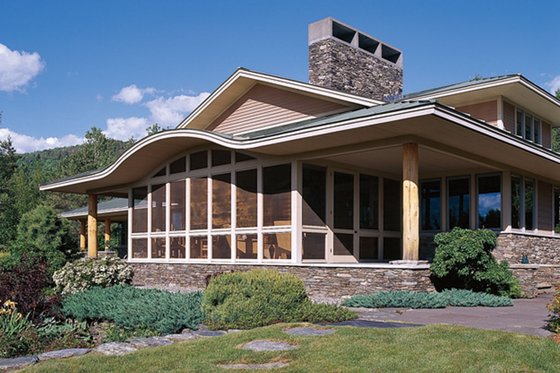

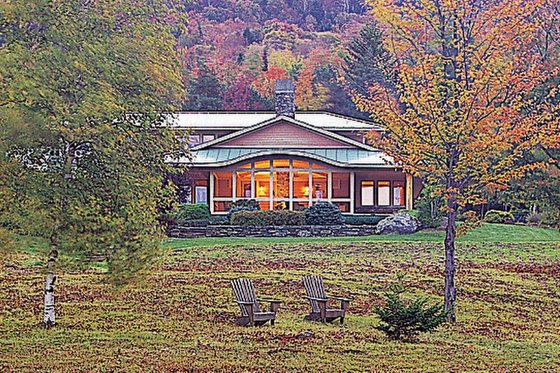

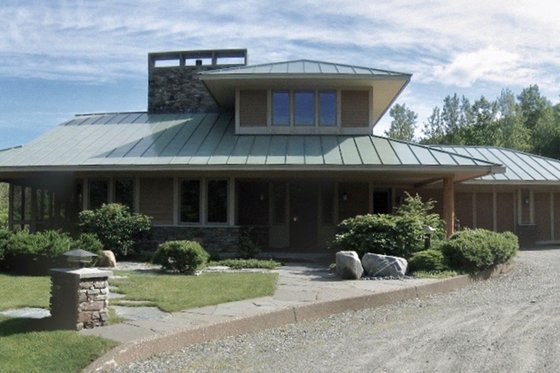

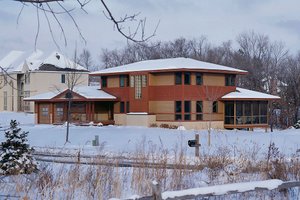

HOME BY DESIGN SHOWHOUSE 2004 454-5. This beautiful and uniquely designed 3 bedroom/2.5 bath home was built to exemplify many of the Not So BigÂ® principles featured in Sarah Susanka's book, Home By Design. Luxurious in feel, the home includes abundant windows, terraces and an expansive Sunroom, located beneath the home's iconic curved roof. The plan provides for a crawlspace, but the plan can also be converted to a full lower level, through integration of a basement stair case as seen in 454-7. The exterior of the home, with its horizontal lines, modest roof pitch, large overhangs, and centralized rectangular chimney, evokes a Prairie Style feel, while the floor plan is ideal for today's more informal lifestyle

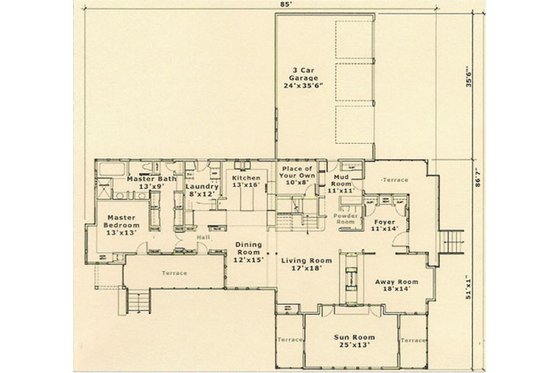

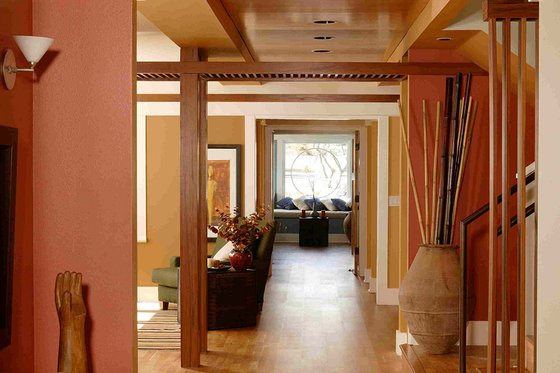

This design provides for an open yet intimate feel in the center of the
home. Special use areas, such as the Away Room, Place of Your Own, and
the Sun Room, are physically separated from the rest of the main level

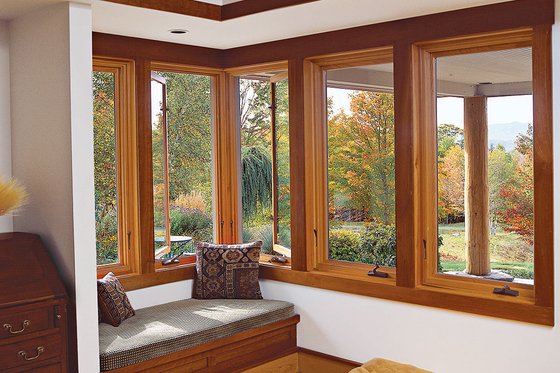

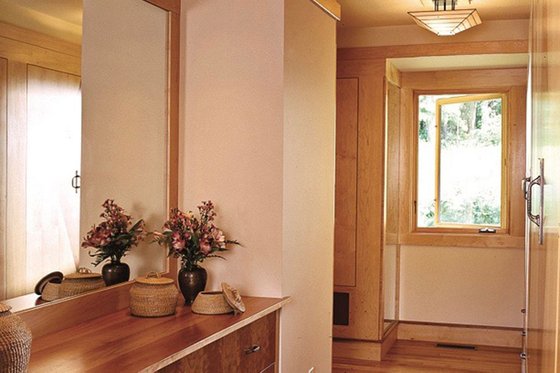

for privacy. The Master Bedroom boasts built-in corner window seats, a
spacious walk-in dressing area, and access to the covered terrace. The

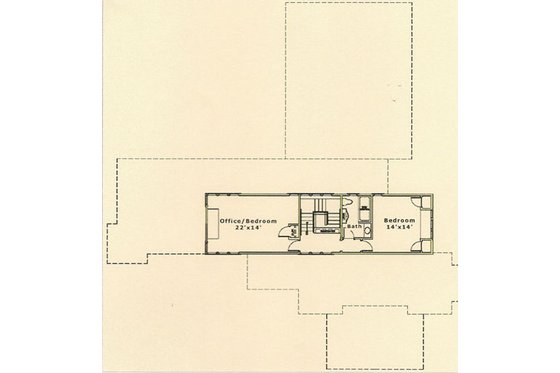

upper part of the home contains two bedrooms, both with abundant windows
tucked below the home's projecting Prairie Style roofline.

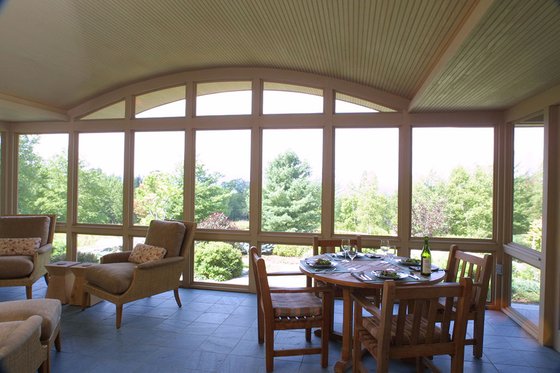

The Sun Room, with its large windows, provides a seamless transition to the outdoors. Unlike a screen porch, it is included in the square footage totals of the home since it is part of the conditioned space. The tile floor and curved ceiling continue outside onto the adjoining terraces. Depending on your needs, this room is easily modified and converted to a screen porch, similar to our Home By Design Showhouse 2004-V version of this design.

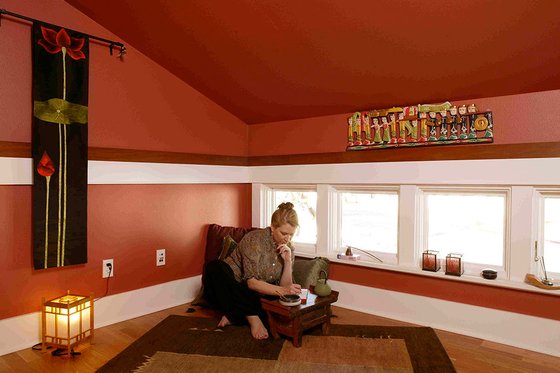

A special note about the room called A Place of Your Own: Since the original version of this home was built on a crawlspace foundation, Sarah very cleverly hid the home's mechanical system below the raised floor of this room. This allows an otherwise wasted volume of space to be used as a bonus room for meditation, a child's play room, storage etc. If for any reason the mechanical systems are moved to another location, the floor of this room is typically lowered, and the access from the stairs is moved to the mudroom. Since the garage is easily detached from the main home, locations for windows were provided.
PHOTOGRAPHS BY GREY CRAWFORD, CHARLES BICKFORD AND KEN GUTMAKER
This plan can be customized!
Let us know your desired changes and get a free quote.
Click the button or call us now at 1-800-913-2350.
Full Specs & Features
Exterior Wall Framing
What's included in this plan set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

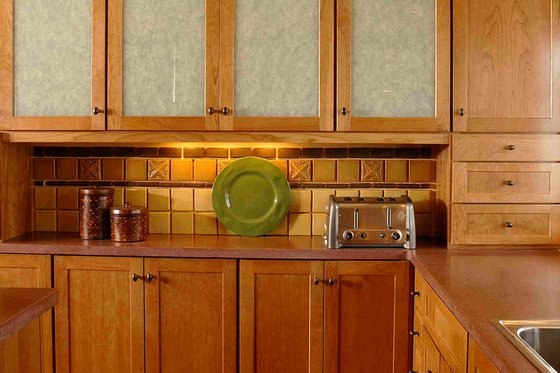

- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
|5 Copy Set||$5850.00||5 printed plan sets mailed to you.|
|Reproducible Set||$5850.00||For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.|
|CAD Set||$7200.00||For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|Basement||$0.00||Ideal for level lot, lower level of home partially or fully underground.|
|Additional Copies||$225.00/each||Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Mirror Reverse Sets||$0.00/each||Choose how many sets of the 5 or 8 copy set to mirror. Text and dimensions will be backwards. Click here for more information.|
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.
