Plan #126-162

Key Specs


  • 1032 sq ft

  • 2 Bedrooms

  • 1.5 Bathrooms

  • 2 Floors

  • 3 Garage

Plan Description

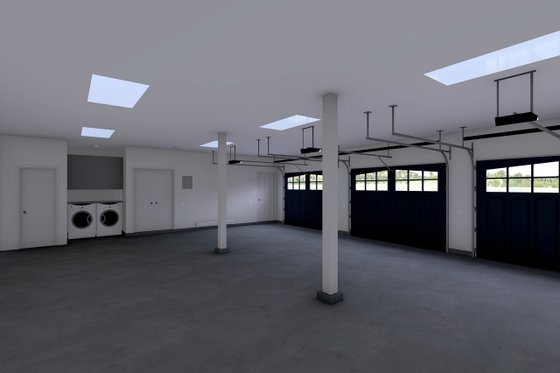

This triple garage plan provides ample room for parking and as use as a workshop with the added feature of a living area over for guests or family. The two spacious bedrooms are well suited for daily living, the kitchen, dining, and living room are combined to give an open feeling as the sloped roof and dormers add character.
Modify This Plan

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350 for assistance.

Floor Plans

Floor Plan - Lower Floor Plan
Traditional Style House Plan - 2 Beds 1.5 Baths 1032 Sq/Ft Plan #126-162 Floor Plan - Lower Floor Plan - Houseplans.com
Floor Plan - Main Floor Plan
Traditional Style House Plan - 2 Beds 1.5 Baths 1032 Sq/Ft Plan #126-162 Floor Plan - Main Floor Plan - Houseplans.com

Full Specs & Features

Basic Features

Garage Stalls : 3
Stories : 2
Bedrooms : 2
Baths : 1.5

Dimension

Width : 40'
Depth : 30'
Height : 26'

Area

Garage Sq Ft : 1109 sq ft
Main Floor Sq Ft : 1032 sq ft
Total Sq Ft : 1032 sq ft *
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Garage Ceiling Ft : 9'
Main Ceiling Ft : 8'

Roof

Roof Load : 65
Roof Framing : stick
Secondary Pitch : 6:12
Primary Pitch : 12:12

Exterior Wall Framing

Framing : 2"x6"
Exterior Wall Finish : Hardboard Siding
Insulation : R-22

Bedroom Features

Upstairs Bedrooms

Kitchen Features

Breakfast Nook
Kitchen Island

Additional Room Features

Great Room Living Room

Garage Features

Front Entry Garage
Garage Under
Split Garage
Oversized Garage

Code Compliance

Irc 2006
Nbcc

Structural Information Provided

Foundation Drawing

What's included in this plan set

See a sample plan set

  • Floor Plans Including electrical
  • Foundation Plan
  • Cross Sections and other detail sections when required
  • Cabinet and Stair Details

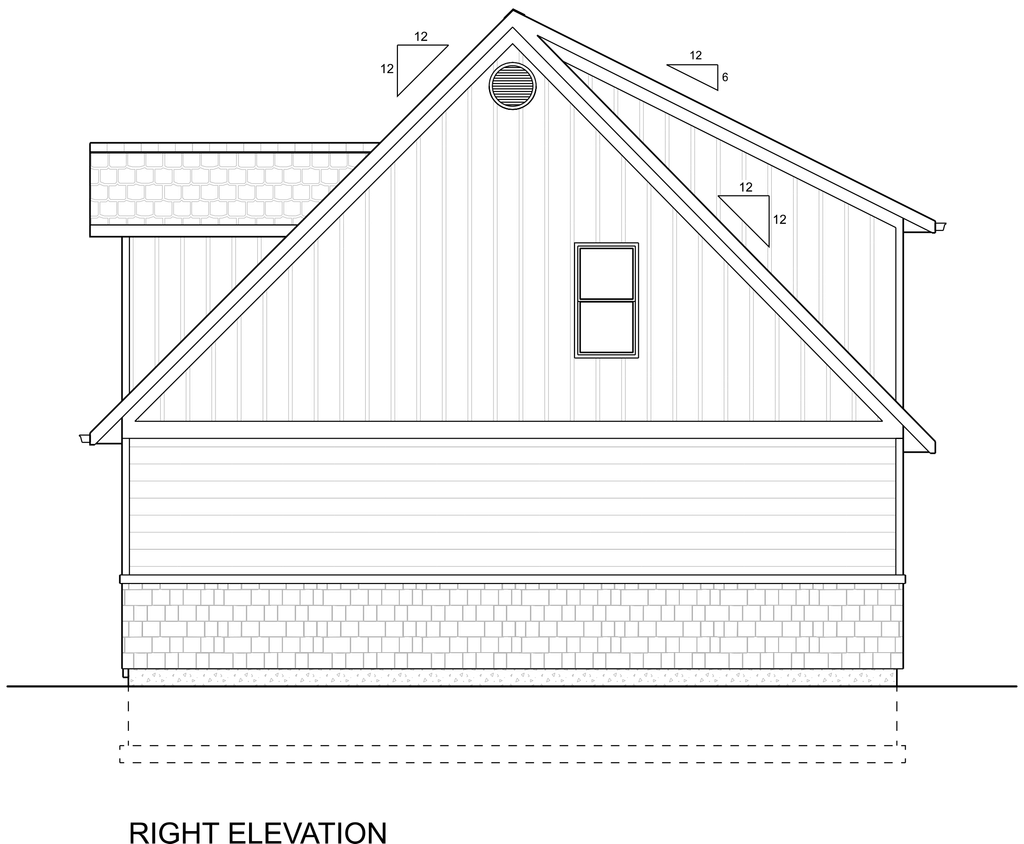

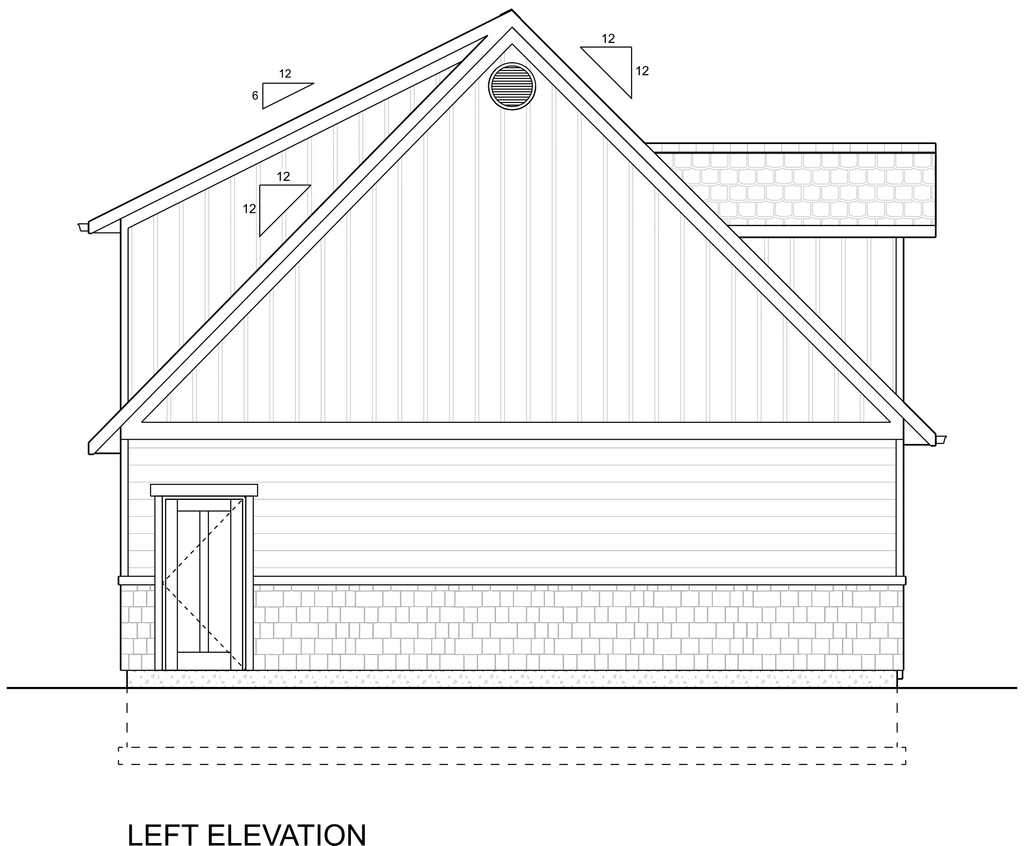

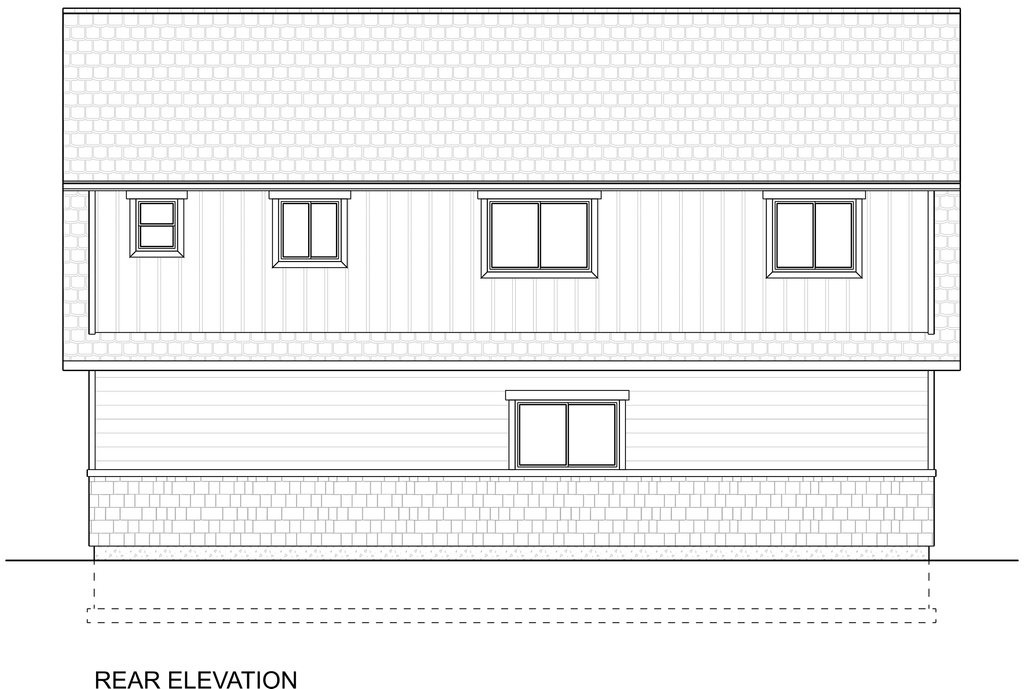

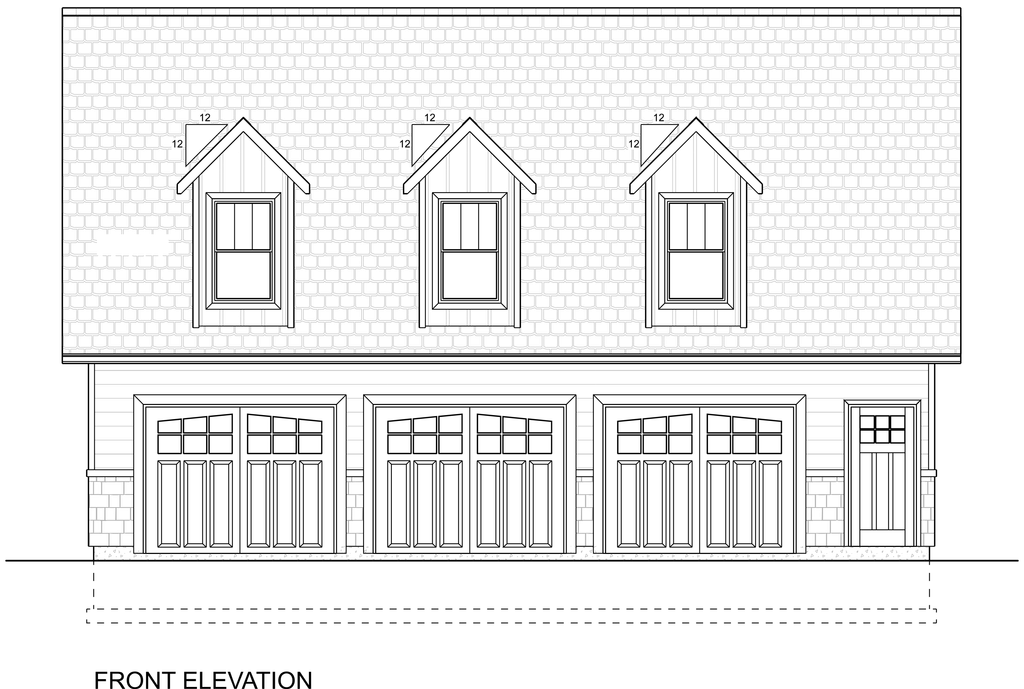

  • Exterior Elevations - All four sides
  • Cover Page with artists rendering
  • Misc. Construction and Code Notes
*See important information before purchasing

Pricing

Plan Options
5 Copy Set $517.50 5 printed plan sets mailed to you.
8 Copy Set $607.50 8 printed plan sets mailed to you.
Reproducible Set $607.50 For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set $1035.00 For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set $423.00 One printed set for bidding purposes only. Not a legal building set for construction.
Foundation Options
Slab $0.00 Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Additional Copies $40.50/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reverse Sets $45.00 Choose how many sets of the 5 or 8 copy set to mirror. Text and dimensions will be backwards. Click here for more information.
Right-Reading Reverse $135.00 Choose this option to reverse your plans and to have the text and dimensions readable. Click here for more information.
Material List $90.00 A list of building supplies needed to construct the infrastructure of your new house. Click here for more information.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).

What's included?
Instant Download After Checkout

Subtotal Now $517.50

You save $57.50 (10% savings)

Sale ends on 12/04/2016

Best Price Guaranteed*

Or order by phone: 1-800-913-2350

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-to-Build Report
