Plan #116-163

Key Specs


  • 1064 sq ft

  • 3 Bedrooms

  • 2 Bathrooms

  • 1 Floor

  • 1 Garage

Plan Description

This comfortable craftsman style floor plan features three bedrooms and two full baths. Visitors are welcomed with an old fashioned front porch. The dining area is conveniently next to the efficient kitchen. A mud/laundry room is located off the kitchen. The master bedroom is complete with a walk-in-closet and private bath. Available with a 1 or 2 car garage. Dimensions for 2 Car: 48'x38'. Plan includes optional Active Solar Details
Modify This Plan

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350 for assistance.

Floor Plans

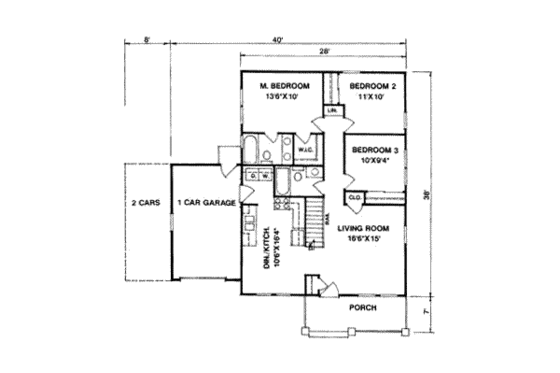

Floor Plan - Main Floor Plan
Craftsman Style House Plan - 3 Beds 2 Baths 1064 Sq/Ft Plan #116-163 Floor Plan - Main Floor Plan - Houseplans.com

Full Specs & Features

Basic Features

Baths : 2
Stories : 1
Bedrooms : 3
Garage Stalls : 1

Dimension

Depth : 38'
Width : 40'
Height : 17'

Area

Total Sq Ft : 1064 sq ft *
Main Floor Sq Ft : 1064 sq ft
Garage Sq Ft : 227 sq ft
Porch Sq Ft : 84 sq ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling Ft : 8'
Garage Ceiling Ft : 8'

Roof

Primary Pitch : 6:12

Exterior Wall Framing

Framing : 2"x6"

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet

Additional Room Features

Main Floor Laundry

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Narrow Lot
Suited For Corner Lot

Outdoor Spaces

Covered Front Porch

More

Economical To Build
Empty Nester

Energy Efficient Features

Green Specifications
Energy Efficient Design

What's included in this plan set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing
