Plan 51-515

Photographs may show modified designs.
Plan 51-515

Key Specs


1897
sq ft

3
Beds

2.5
Baths

1
Floors

2
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

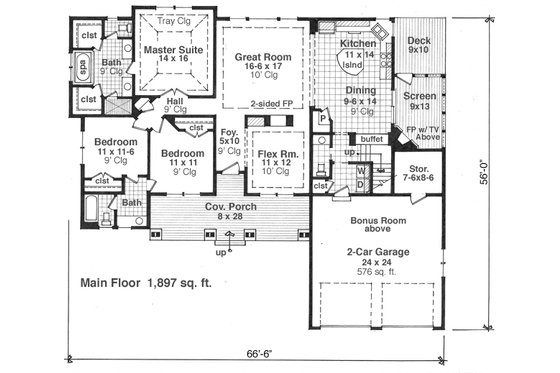

Floor Plan - Main Floor Plan

Reverse
Craftsman Floor Plan - Main Floor Plan Plan #51-515

Floor Plan - Other Floor Plan

Reverse
Craftsman Floor Plan - Other Floor Plan Plan #51-515

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2.5
Stories: 1
Garages: 2

Dimension

Depth : 56'
Height : 24' 6"
Width : 86' 6"

Area

Total : 1897 sq/ft
Bonus: 384 sq/ft height 8'
First Floor: 1897 sq/ft height 9'
Garage: 576 sq/ft height 9'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Bonus Ceiling : 8'
Ceiling Details : great room and flex room has 10'-0" clg. hgt. Master suite has tray clg.
Main Ceiling : 9'

Roof

Primary Pitch : 8:12
Roof Framing : Trusses
Secondary Pitch : 12:12

Exterior Wall Framing

Exterior Wall Finish : brick,shakes,siding
Framing : 2"x6"

Bedroom Features

Guest Suite
Main Floor Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Mud Room
Play Flex Room
Storage Area
Sunroom
Unfinished Future Space

Garage Features

Front Entry Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Covered Rear Porch
Grill Deck Sundeck
Screened Porch

Rooms

Bedroom 2:

126 sq/ft width 11' x depth 11' 6"

Bedroom 3:

121 sq/ft width 11' x depth 11'

Bonus Room - Unfinished:

384 sq/ft width 16' x depth 24'

Deck:

90 sq/ft width 9' x depth 10'

Dining Room:

133 sq/ft width 9' 6" x depth 14'

Flex Room:

132 sq/ft width 11' x depth 12'

Foyer:

50 sq/ft width 5' x depth 10'

Garage:

576 sq/ft width 24' x depth 24'

Great Room:

280 sq/ft width 16' 6" x depth 17'

Kitchen:

154 sq/ft width 11' x depth 14'

Master Bedroom:

224 sq/ft width 14' x depth 16'

Porch - Front:

208 sq/ft width 8' x depth 26'

Porch - Screened:

117 sq/ft width 9' x depth 13'

Storage:

63 sq/ft width 7' 6" x depth 8' 6"
