Plan 20-234

Photographs may show modified designs.
Plan 20-234

Key Specs


2086
sq ft

4
Beds

3.5
Baths

2
Floors

2
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

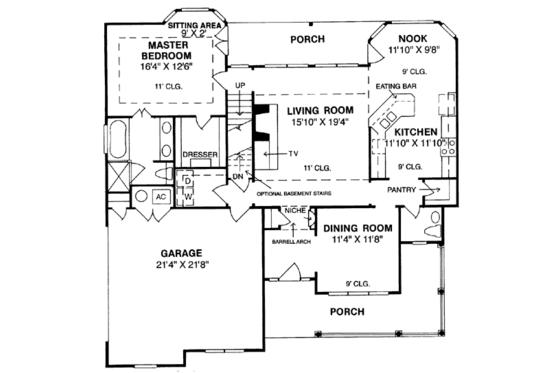

Floor Plan - Main Floor Plan

Reverse

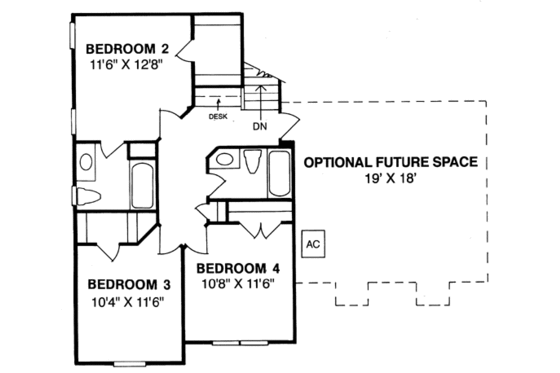

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 3.5
Stories: 2
Garages: 2

Dimension

Depth : 50'
Height : 33'
Width : 49'

Area

Total : 2086 sq/ft
Bonus: 342 sq/ft
First Floor: 1383 sq/ft height 9'
Garage: 480 sq/ft
Second Floor: 703 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Living Room: Ceiling Height 11'-0"Formal Dining Room: Ceiling Height: 9'-0"
Main Ceiling : 9'
Upper Ceiling Ft : 8'

Roof

Primary Pitch : 12:12
Roof Framing : Truss
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : 2"x4"

Bedroom Features

Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room
Master Sitting Area
Play Flex Room
Unfinished Future Space

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For Narrow Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

Rooms

Bathroom 2:

26 sq/ft width 5' 8" x depth 4' 8"

Bathroom 3:

52 sq/ft width 8' x depth 6' 6"

Bathroom 4:

42 sq/ft width 8' 2" x depth 5' 2"

Bedroom 2:

145 sq/ft width 11' 6" x depth 12' 8"

Bedroom 3:

118 sq/ft width 10' 4" x depth 11' 6"

Bedroom 4:

122 sq/ft width 10' 8" x depth 11' 6"

Bonus Room - Unfinished:

342 sq/ft width 19' x depth 18'

Dining Room:

132 sq/ft width 11' 4" x depth 11' 8"

Foyer:

46 sq/ft width 7' x depth 6' 8"

Garage:

462 sq/ft width 21' 4" x depth 21' 8"

Kitchen:

140 sq/ft width 11' 10" x depth 11' 10"

Living Room:

306 sq/ft width 15' 10" x depth 19' 4"

Master Bathroom:

92 sq/ft width 9' x depth 10' 4"

Master Bedroom:

204 sq/ft width 16' 4" x depth 12' 6"

Master Closet:

49 sq/ft width 7' x depth 7'

Nook:

114 sq/ft width 11' 10" x depth 9' 8"

Pantry:

14 sq/ft width 3' 6" x depth 4'

Utility Room:

36 sq/ft width 7' x depth 5' 2"

What's included in this plan set


See a sample plan set
  • Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.
  • Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
  • Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
  • Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Interior Elevations: Kitchen cabinet elevations are drawn.
  • Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$925.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$1175.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Basement

$150.00
Ideal for level lot, lower level of home partially or fully underground.

Crawlspace

$150.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$150.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$0.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
